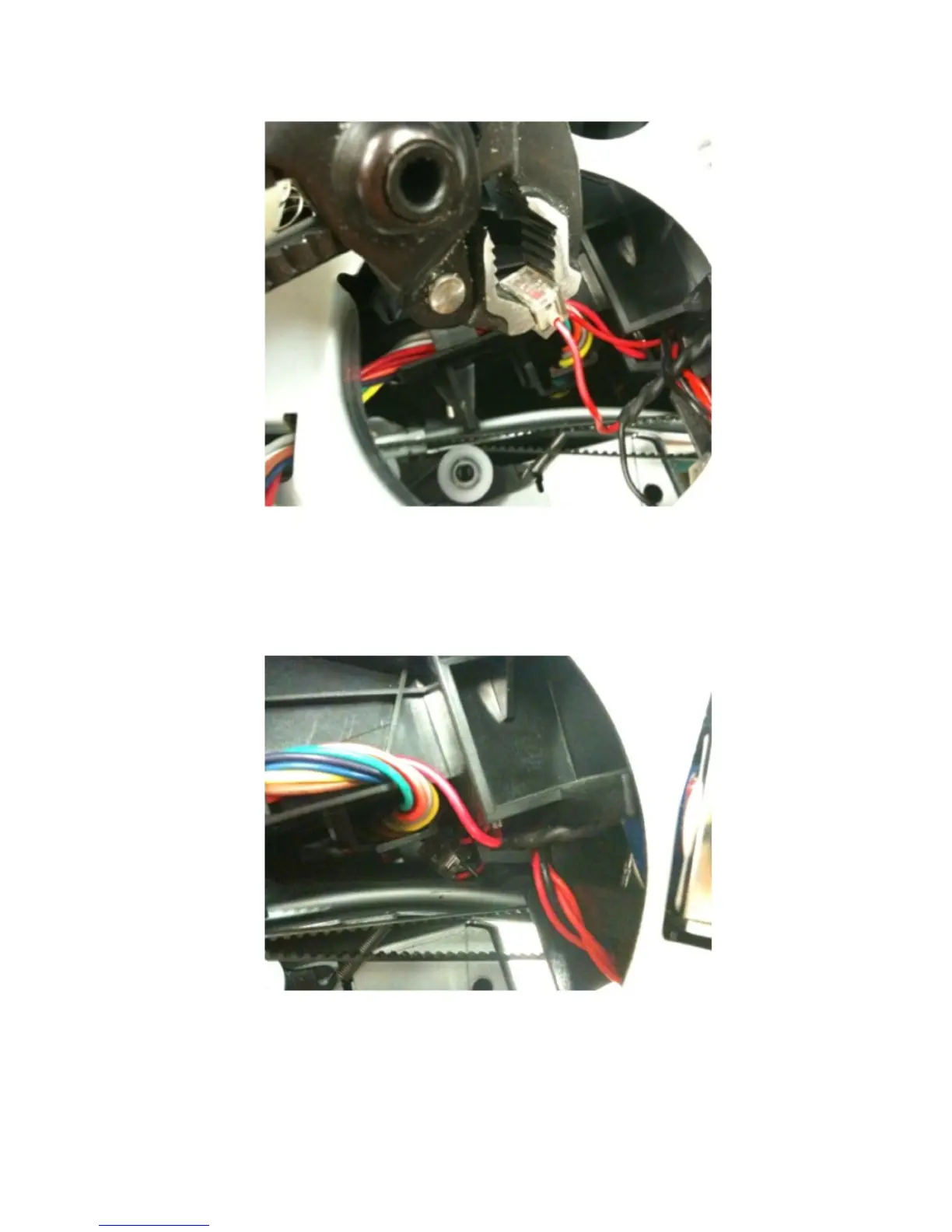

g Squeeze the IDC to partially lock the wires in place, and then use a pair of pliers to crimp the IDC.
h Repeat steps e–g for the black wire.
i Tuck the IDCs securely above the duplex.
Note: If needed, use a cable tie to secure the cable in place. Make sure cable tie does not obstruct the paper
path.
j Print the menu pages to test the printer.
