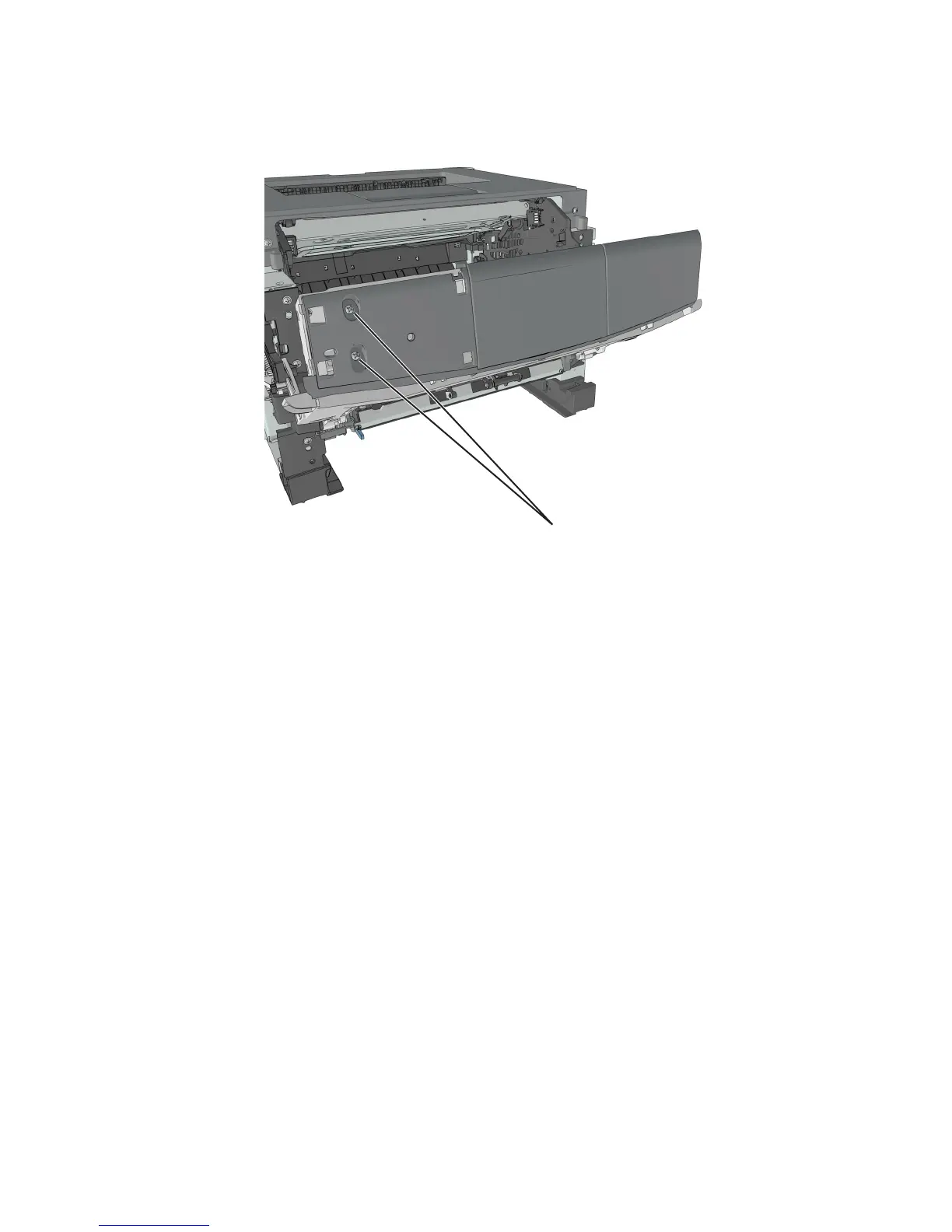

7 Remove the two screws (C) securing the control panel assembly.
C
8 Route all cables off the printer to completely remove the control panel assembly.
UICC removal
1 Remove the right cover. See “Right cover removal” on page 162.
2 Remove the nameplate. See “Nameplate removal” on page 175.
3 Remove the bezel. See “Bezel removal” on page 174.
4 Remove control panel assembly. See “Control panel assembly removal” on page 175.
5 Remove the three screws (A), and then remove the UICC.
Note: The control panel buttons and light pipe must remain with the control panel assembly.
4514-420, -430
