Separator pad removal
1 Remove the right cover. See “Right cover removal” on page 162.
2 Remove the front door. See “Front door removal” on page 183.
3 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 181.
4 Remove the MPF pick roller. See “MPF pick roller removal” on page 181.
5 Remove the jam access cover. See “Jam access cover removal” on page 182.

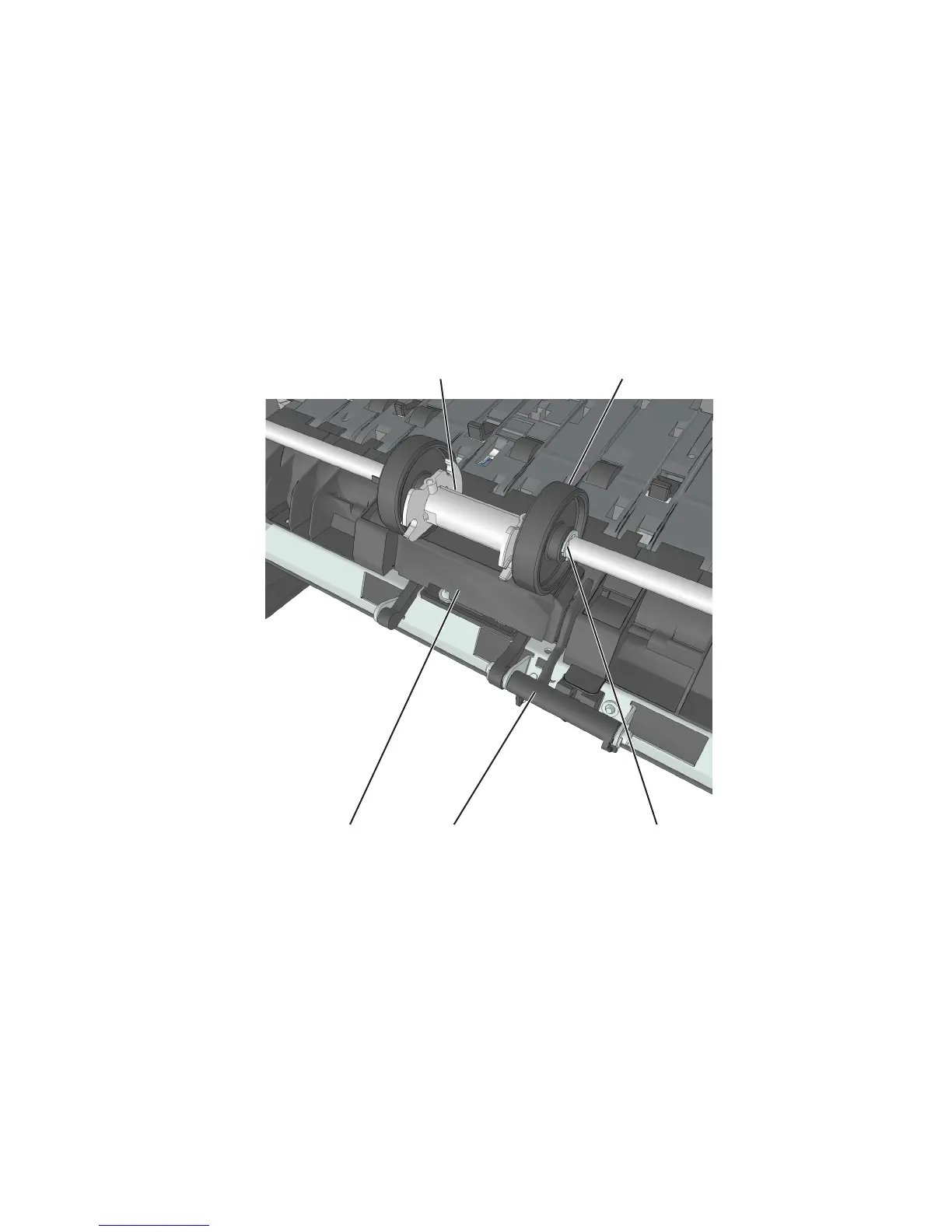

6 Remove the E‑clip (A).
7 While pressing down the MPF sensor flag (B) and separator pad (C), move the restraint roller (D) and MPF pick roller
hub (E) to the right.
E D
ABC
8 Remove the pin (F).
4514-420, -430
Repair information
189
