Toner density sensor removal
1 Remove the left cover. See “Left cover removal” on page 146.
2 Remove the main drive gearbox. See “Main drive gearbox removal” on page 147.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 207.
4 Remove the power supply. See “Power supply removal” on page 191.
5 Remove the power supply shield. See “Power supply shield removal” on page 192.
6 Remove the duplex. See “Duplex removal” on page 193.

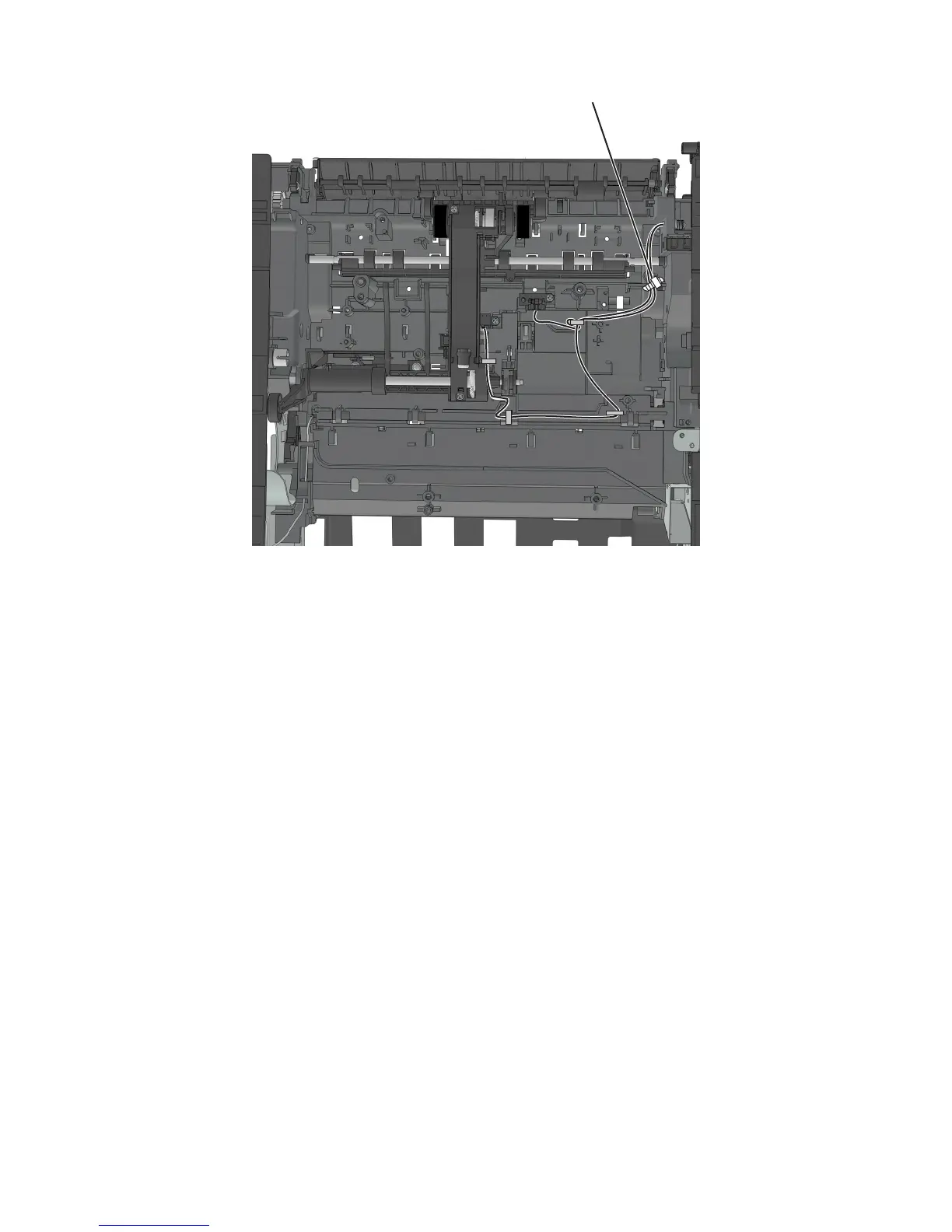

7 Disconnect the spring (A) from the printer.
