Bottom removals
Power supply removal
1 Remove the left cover. See “Left cover removal” on page 146.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 207.

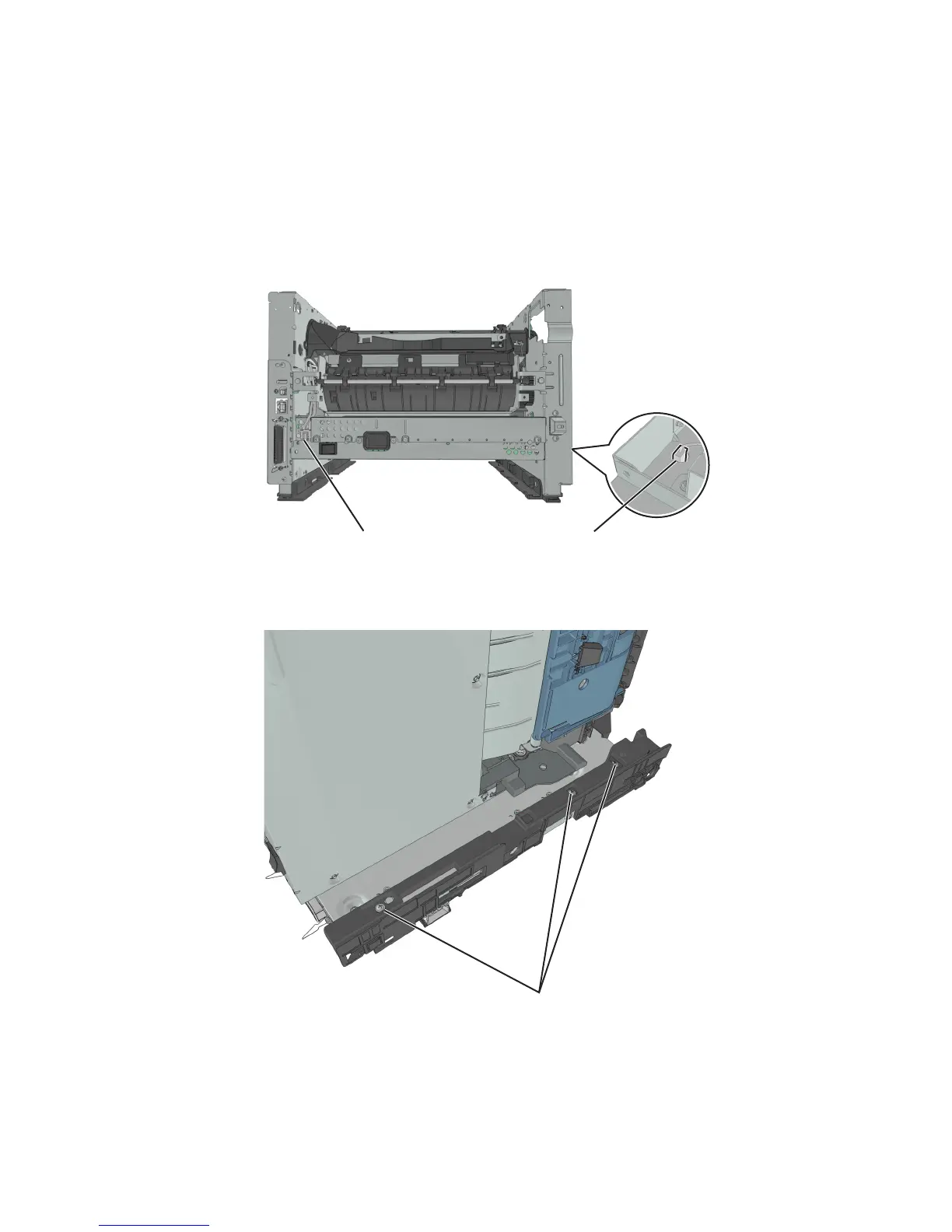

3 Disconnect the cable (A) from the rear, and disconnect the cable (B) from the left side.
AB
4 Position the printer so that it sits on its right side.
5 Remove the three screws (C), and then remove the right tray guide.
C
4514-420, -430
Repair information
191
