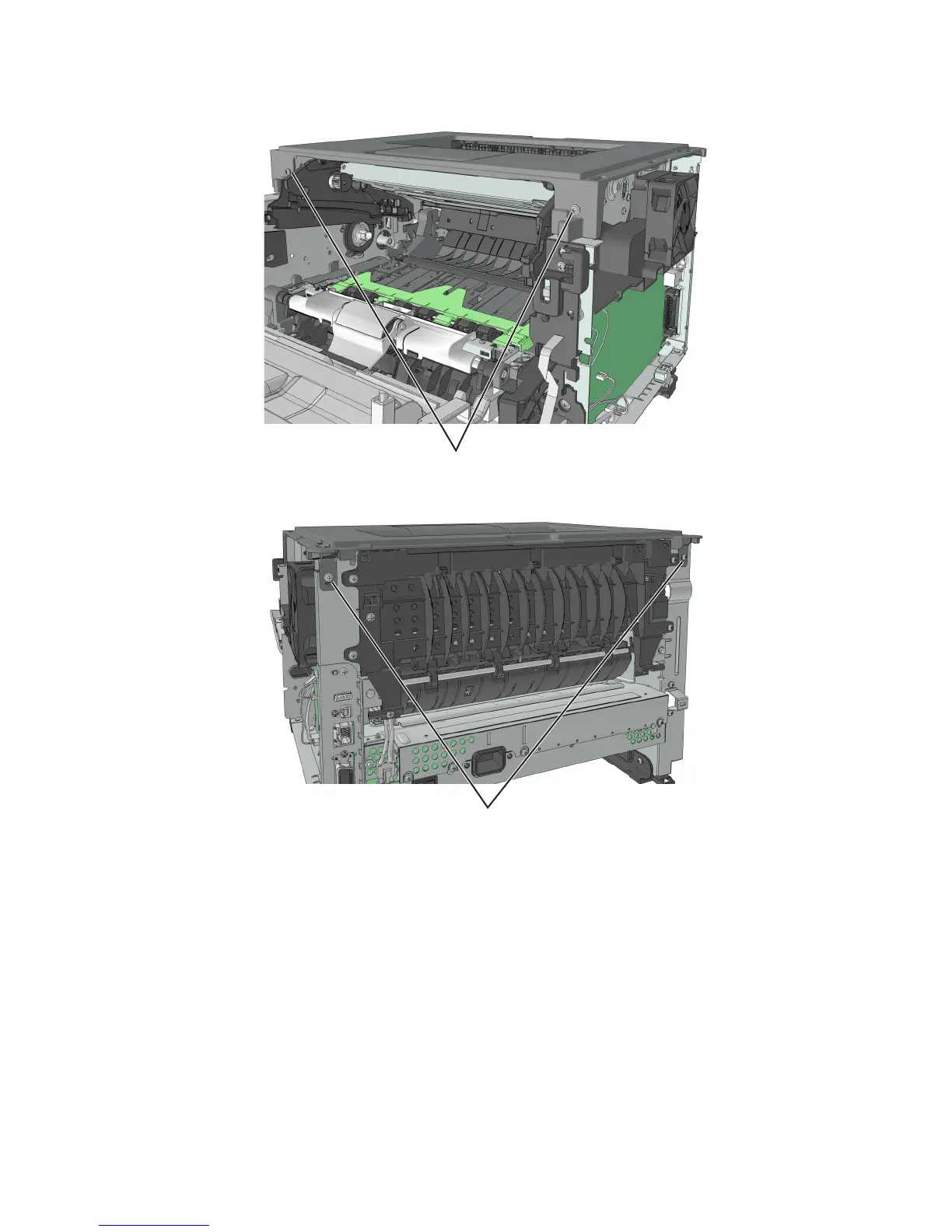

5 Remove the two screws (A) in front.
A
6 Remove the two screws (B) at the rear.
B
7 Lift the top cover to remove.
Laser scanning unit (LSU) removal
1 Remove the right cover. See “Right cover removal” on page 162.
2 Remove the left cover. See “Left cover removal” on page 146.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 207.
4 Remove the top cover. See “Top cover removal” on page 212.
5 Remove the cooling fan. See “Cooling fan removal” on page 163.
6 Disconnect the cable (A) from the LSU.
