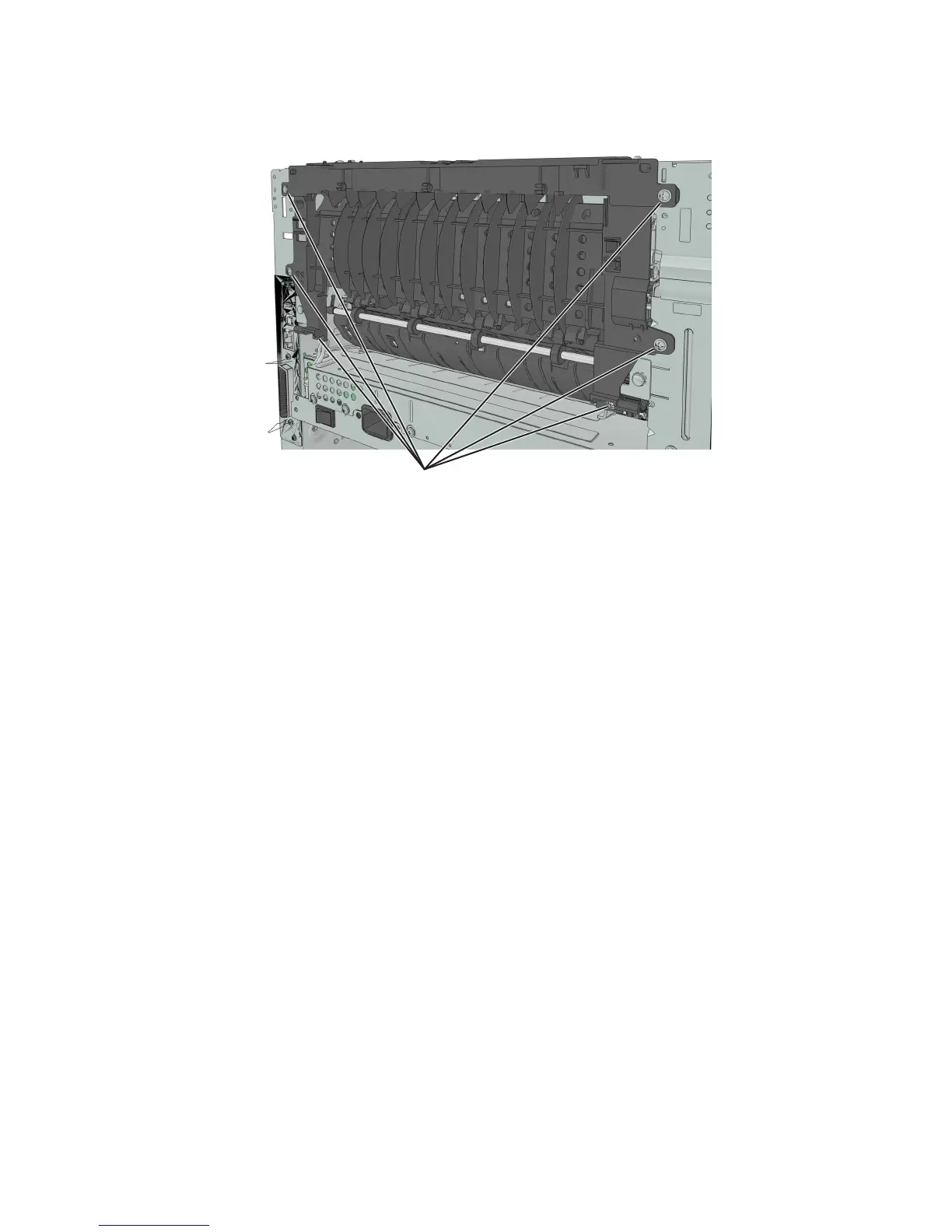

7 Remove the six screws (B) securing the redrive assembly.
B
Fuser removal
1 Remove the right cover. See “Right cover removal” on page 162.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 207.
3 Remove the redrive assembly. See “Redrive assembly removal” on page 210
4 Disconnect the cable JEXIT1 from the controller board.
5 Disconnect the two cables (A).
4514-420, -430
Repair information
211
