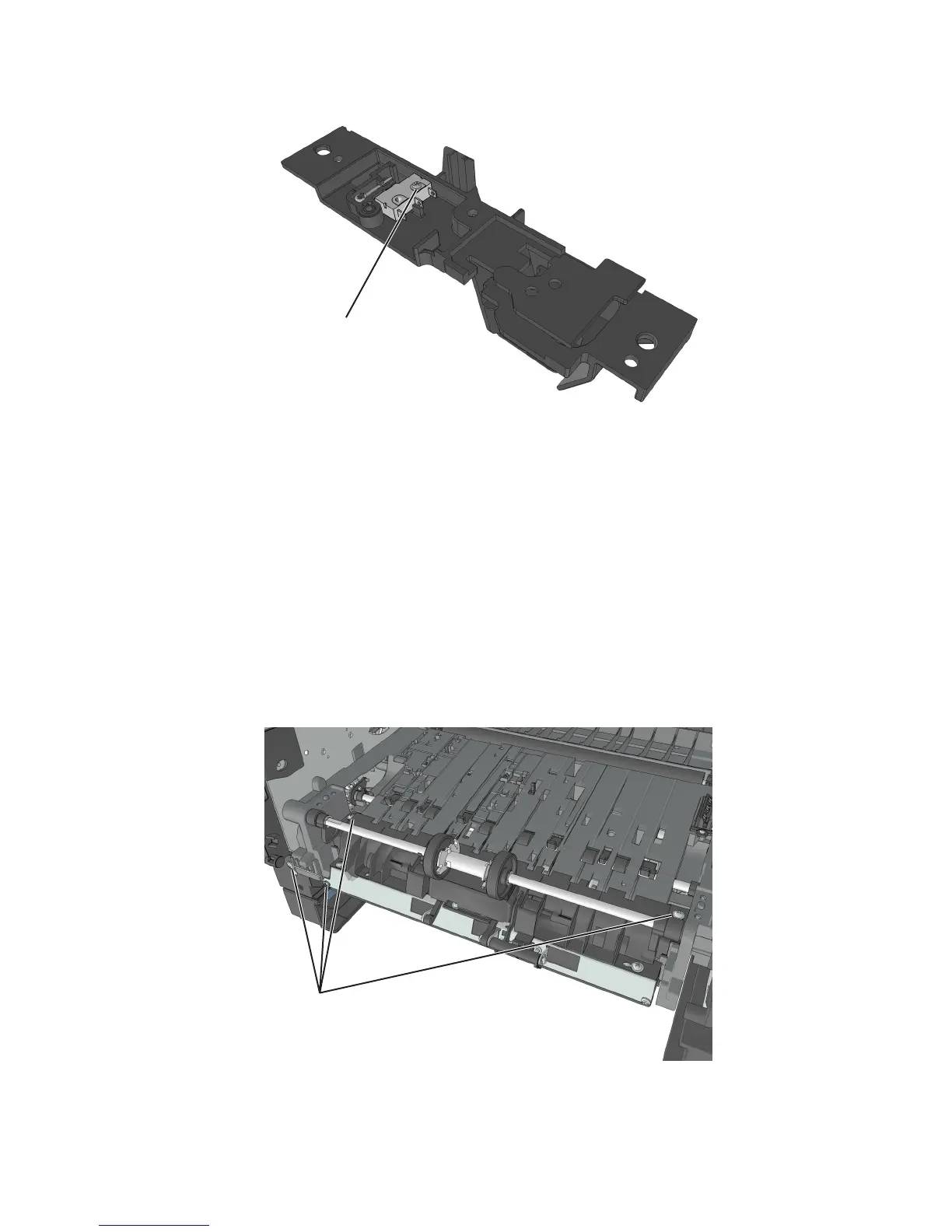

Front input guide removal
1 Remove the right cover. See “Right cover removal” on page 162.
2 Remove the front door. See “Front door removal” on page 183.
3 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 181.
4 Remove the MPF pick roller. See “MPF pick roller removal” on page 181.
5 Remove the jam access cover. See “Jam access cover removal” on page 182.
6 Disconnect cable JMPF1 from the controller board.
7 Remove the four screws (A).
A
8 Push and hold the cam restraint to release the MPF shaft.
4514-420, -430
