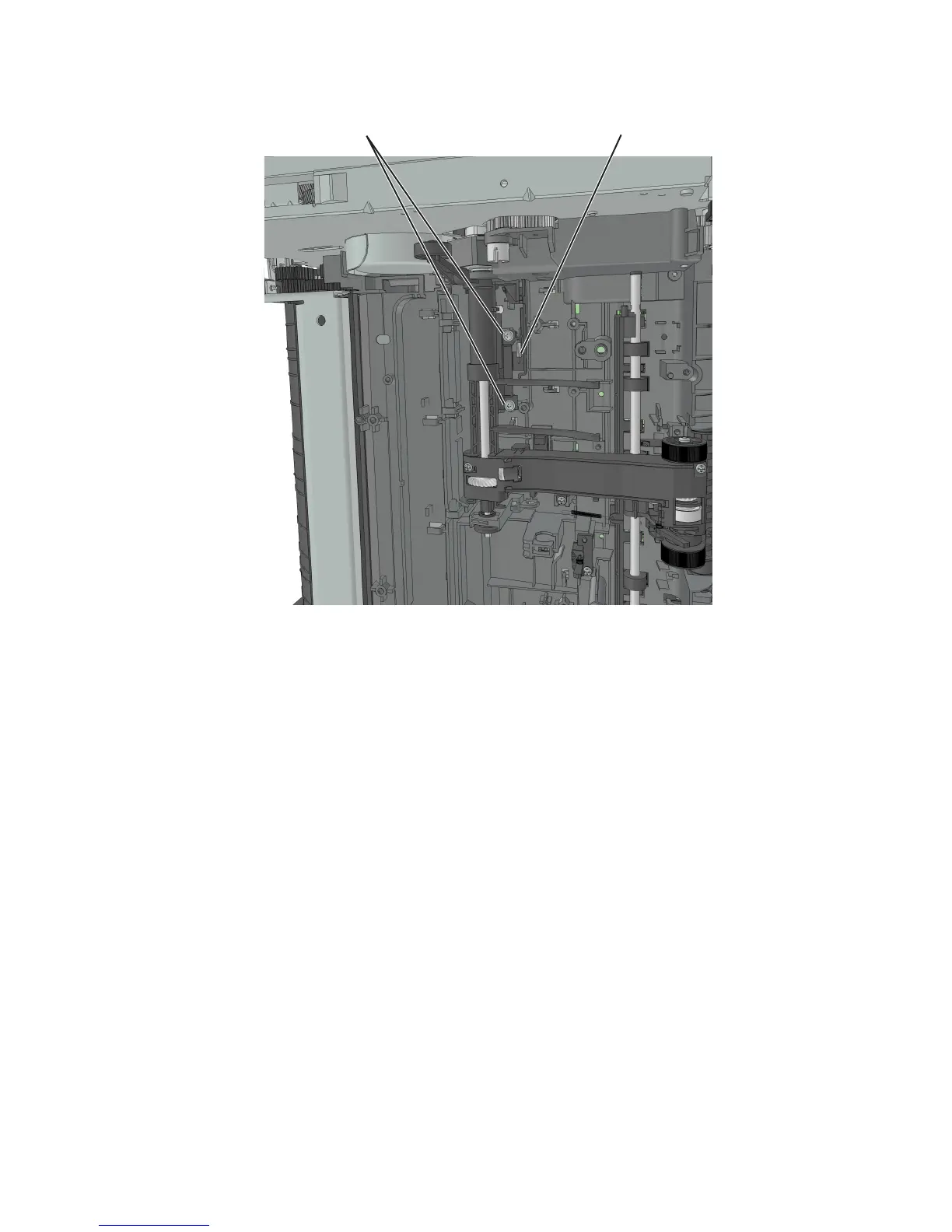

8 Remove the two screws (B), and then remove the sensor.
B A
9 Disconnect the cable from the sensor.
Trailing edge sensor removal
1 Remove the left cover. See “Left cover removal” on page 146.
2 Remove the right cover. See “Right cover removal” on page 162.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 207.
4 Remove the power supply. See “Power supply removal” on page 191.
5 Remove the power supply shield. See “Power supply shield removal” on page 192.
6 Remove the duplex. See “Duplex removal” on page 193.
7 Disconnect the cable JACM1 from the controller board, and cut it near the frame.
4514-420, -430
Repair information
197
