Lexmark MS410 series

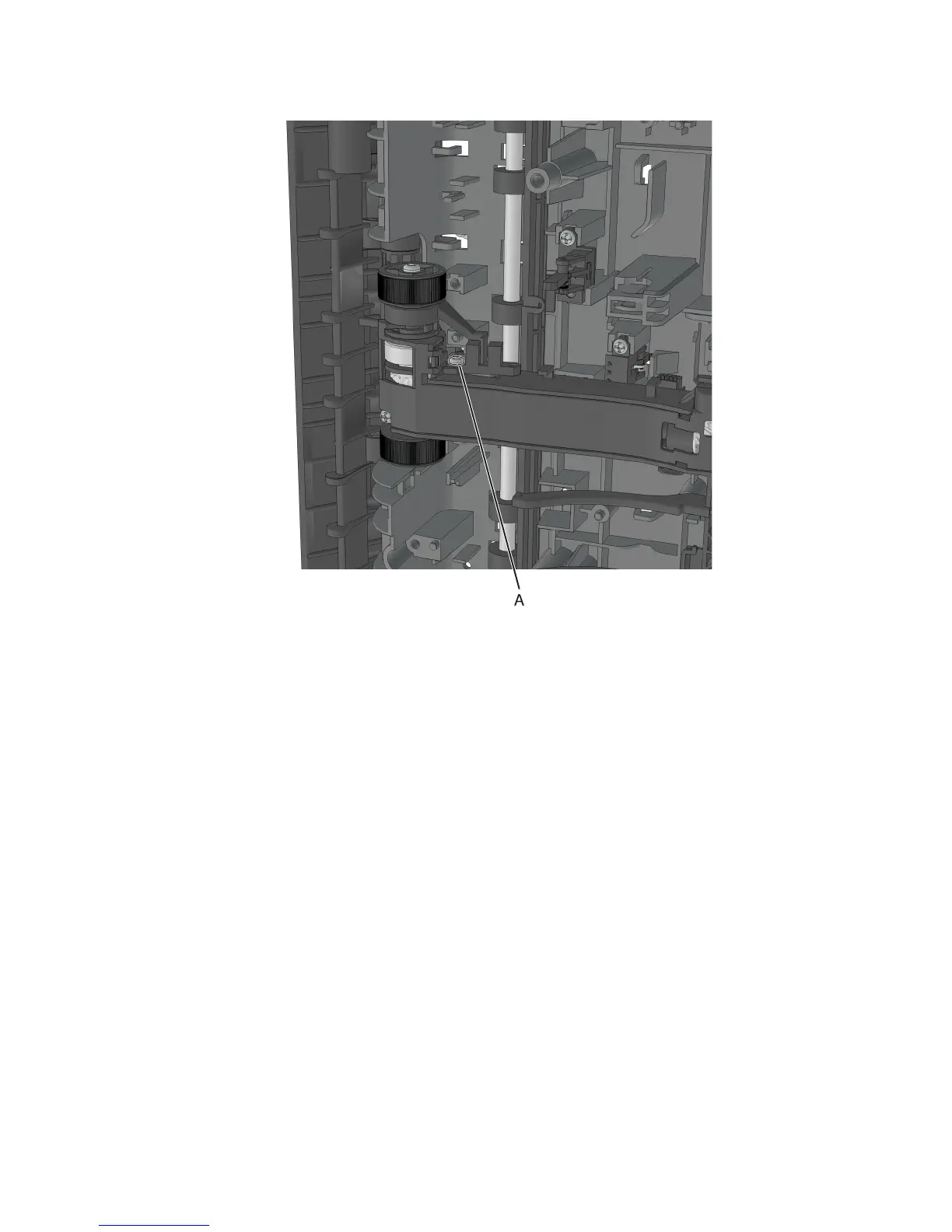

8 Remove the screw (A), and then remove the sensor.
9 Remove the other half of the cable from the printer.
Installation notes:
a Install the sensor to the ACM.
b Route the cable along the two cable holders on the side of the ACM.
Note: Make sure that the cable is not loose.
4514-420, -430
Repair information
198
