Lexmark MS410 series

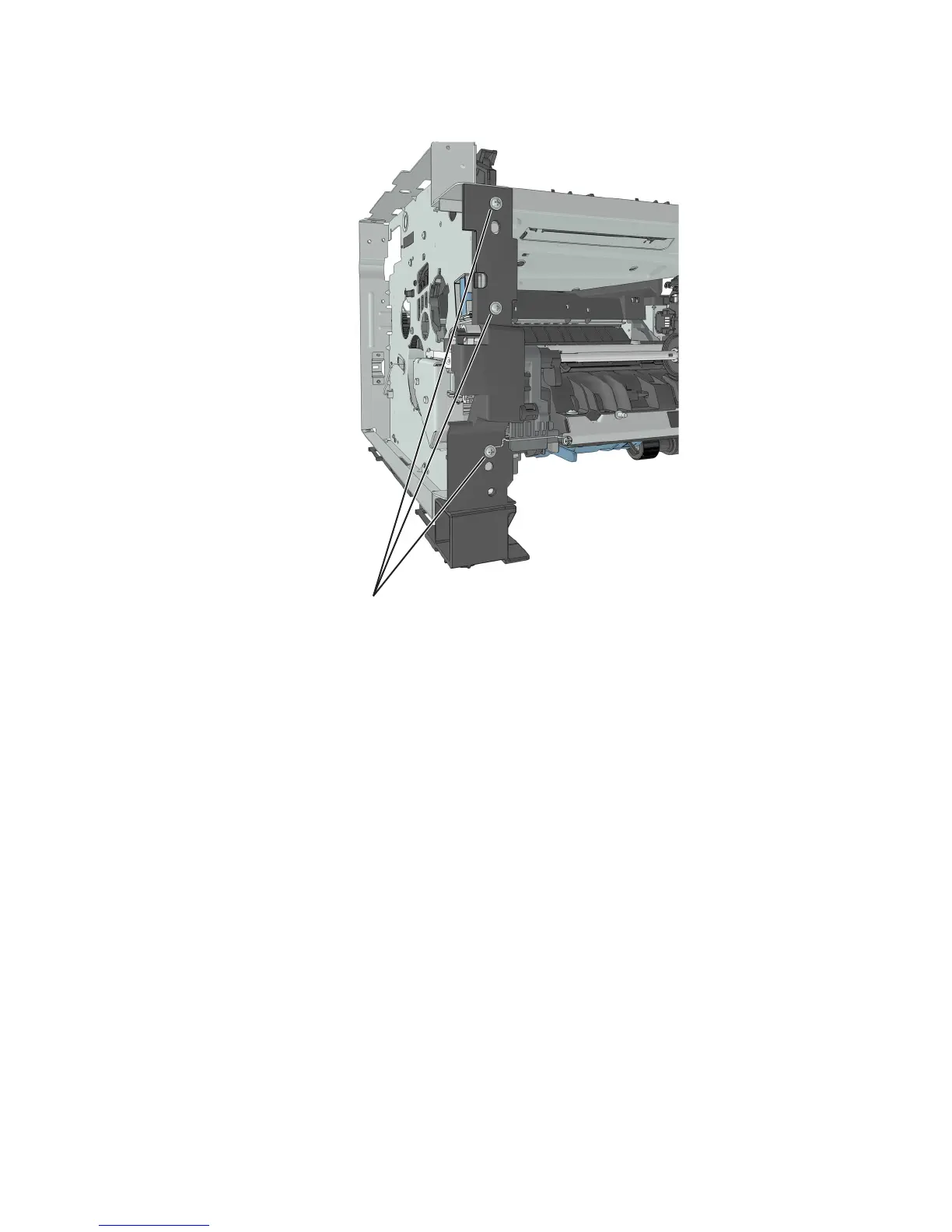

3 Remove the three screws (A), and then remove the left front mount.
A
Right front mount removal
1 Remove the right cover. See “Right cover removal” on page 162.
2 Disconnect all control panel cables from the controller board.
3 Disconnect the cable JCVR1 from the controller board.
4514-420, -430
Repair information
168
