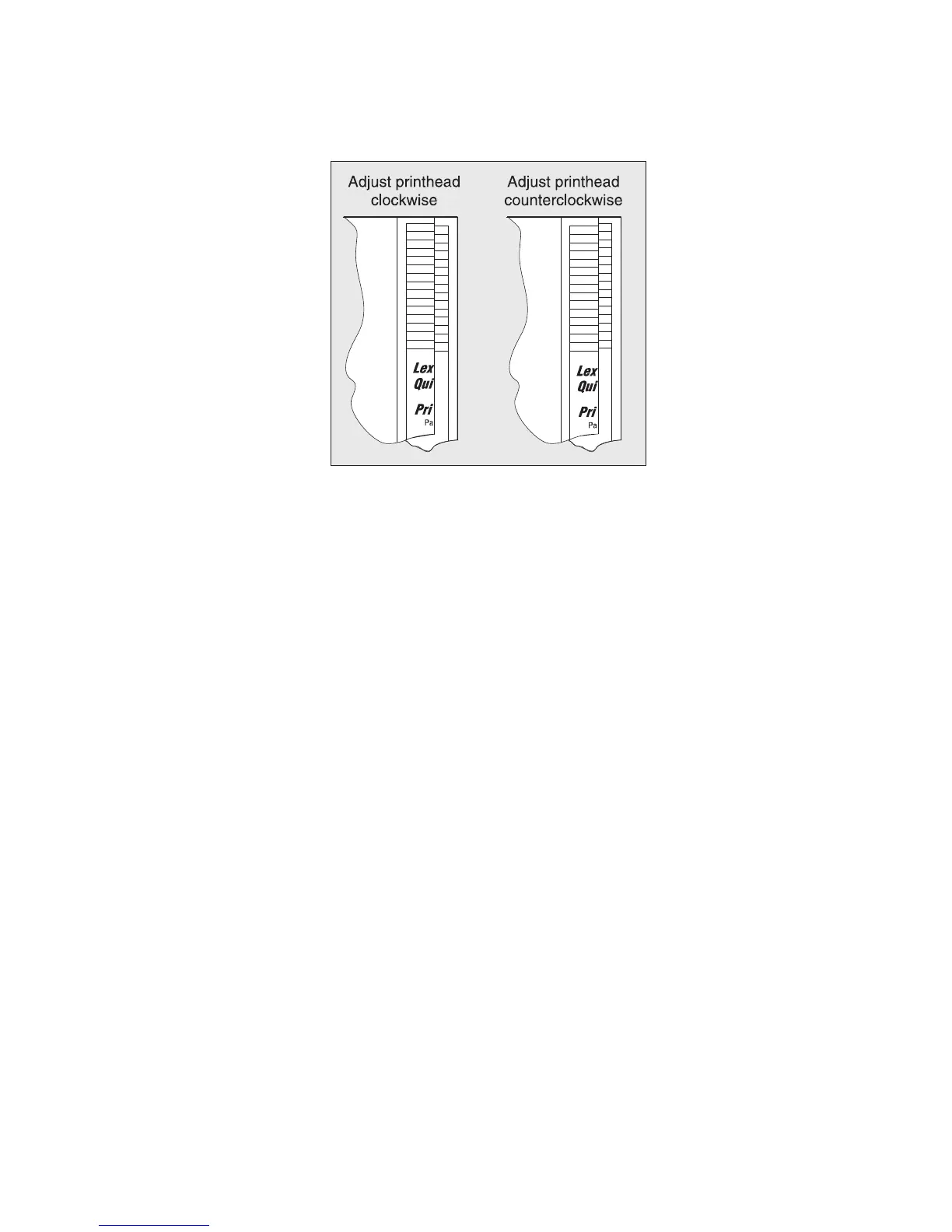

4 If the grid lines of the right flap align below the corresponding lines on the left flap, then adjust the printhead
clockwise relative to the printer, and recheck. If the grid lines of the left flap align below the corresponding lines of
the right side, then adjust the printhead counterclockwise.
5 Print another Quick test page, and check if adjustments are still needed.
6 After obtaining a properly adjusted image on the paper, tighten all the screws.
7 Align the printhead electronically.
Printhead assembly electronic adjustment
Note: Before aligning the printhead electronically, first align the printhead mechanically.
1 POR into the Diagnostics menu, and print a Quick test page:
Diagnostics Menu > Registration > Quick Test
4514-420, -430
Repair information
144
