4 Remove the top cover. See “Top cover removal” on page 212.
5 Disconnect the cable JNRW1 from the controller board.

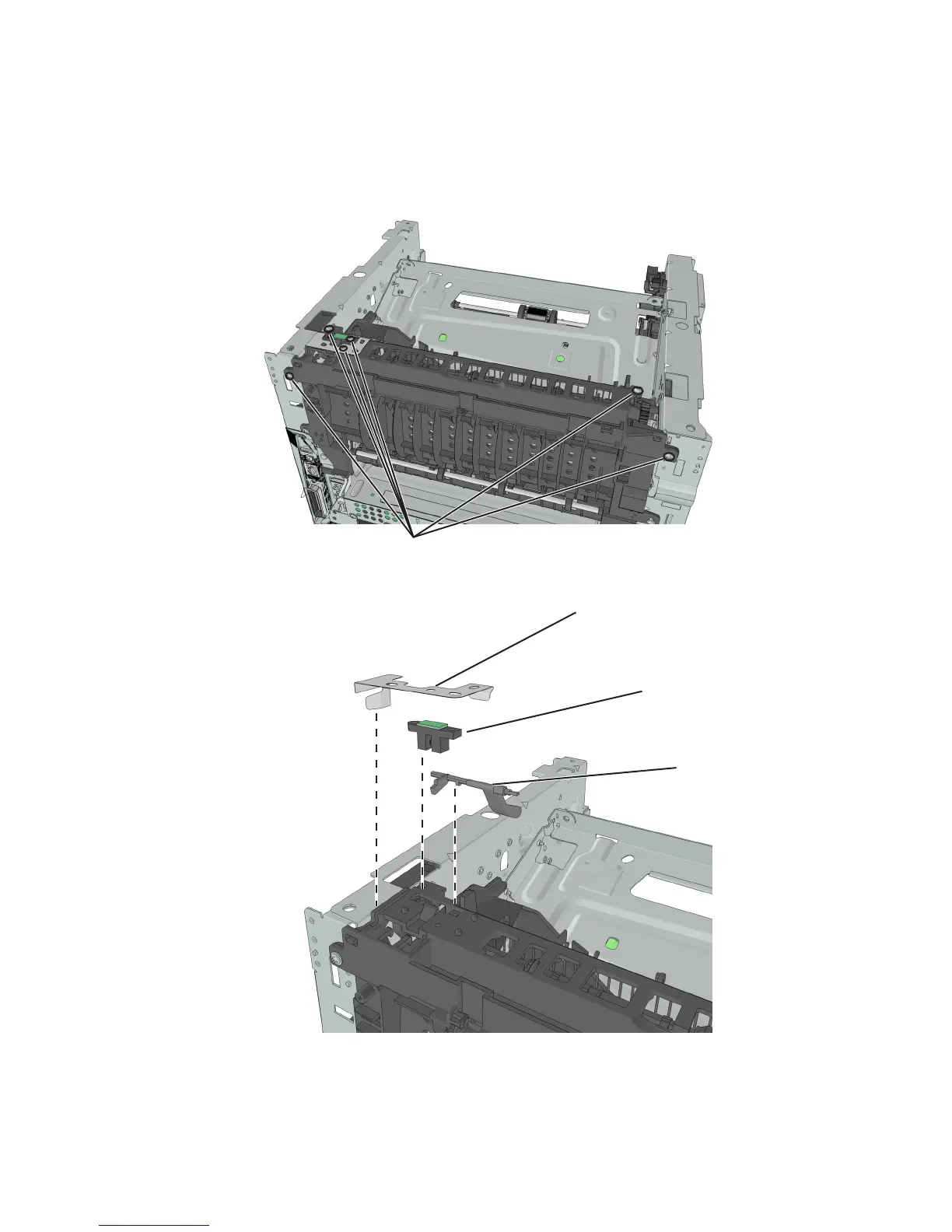

6 Remove the six screws (A) securing the sensor and upper exit guide to the redrive assembly.
A
7 Remove the ground (B), sensor (C), and sensor flag (D).
B
C
D
