Lexmark MS410 series Service Manual

Step 2: Expose

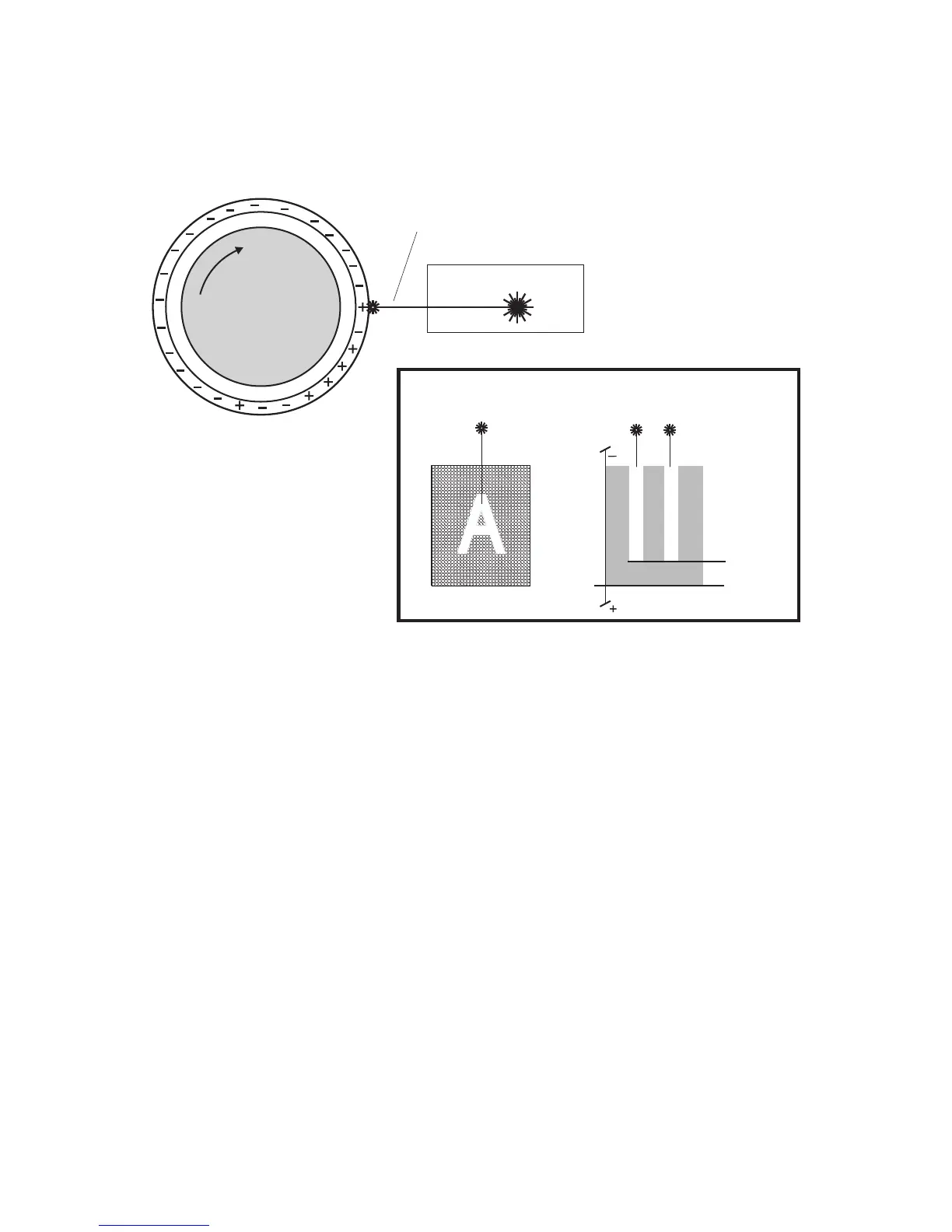

The laser fires a focused beam of light at the surface of the photoconductor and writes an invisible image, called a latent
image. The laser beam only discharges the surface where the beam hits the photoconductor. This creates a difference
in charge potential between the exposed area and the rest of the photoconductor surface.
Modulated
Laser Beam
0V
DRUM
Drum Surface
Drum Surface
Voltage
Laser Beam
Discharge
Level
Invisible Latent Image
Laser Beam
Printhead
Step 3: Develop
Once the laser exposes the photoconductor, the HVPS sends charge to the developer roll. Because of the charge
difference between the toner on the developer roller and the electrostatic image created by the laser, the toner is
attracted to areas of the photoconductor surface exposed by the laser.
4514-420, -430
Appendix C: Theory of operation
252

Lexmark MS410 series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 40 ppm
Duplex Printing	Standard
Processor Speed	800 MHz
Warranty	1-year limited warranty
Print Resolution	1200 x 1200 dpi
Connectivity	USB, Ethernet
Input Capacity	250-Sheet Input
Output Capacity	150 sheets
Mobile Printing	Lexmark Mobile Print
Operating System Compatibility	Windows, macOS, Linux
Dimensions	15.7 x 15.0 x 10.3 inches
Weight	31.0 lbs
Recommended Monthly Page Volume	750 - 3, 500 pages
