LMI Technologies Gocator 3210 User Manual

Gocator Snapshot Sensors: User Manual
Gocator Web Interface • 197

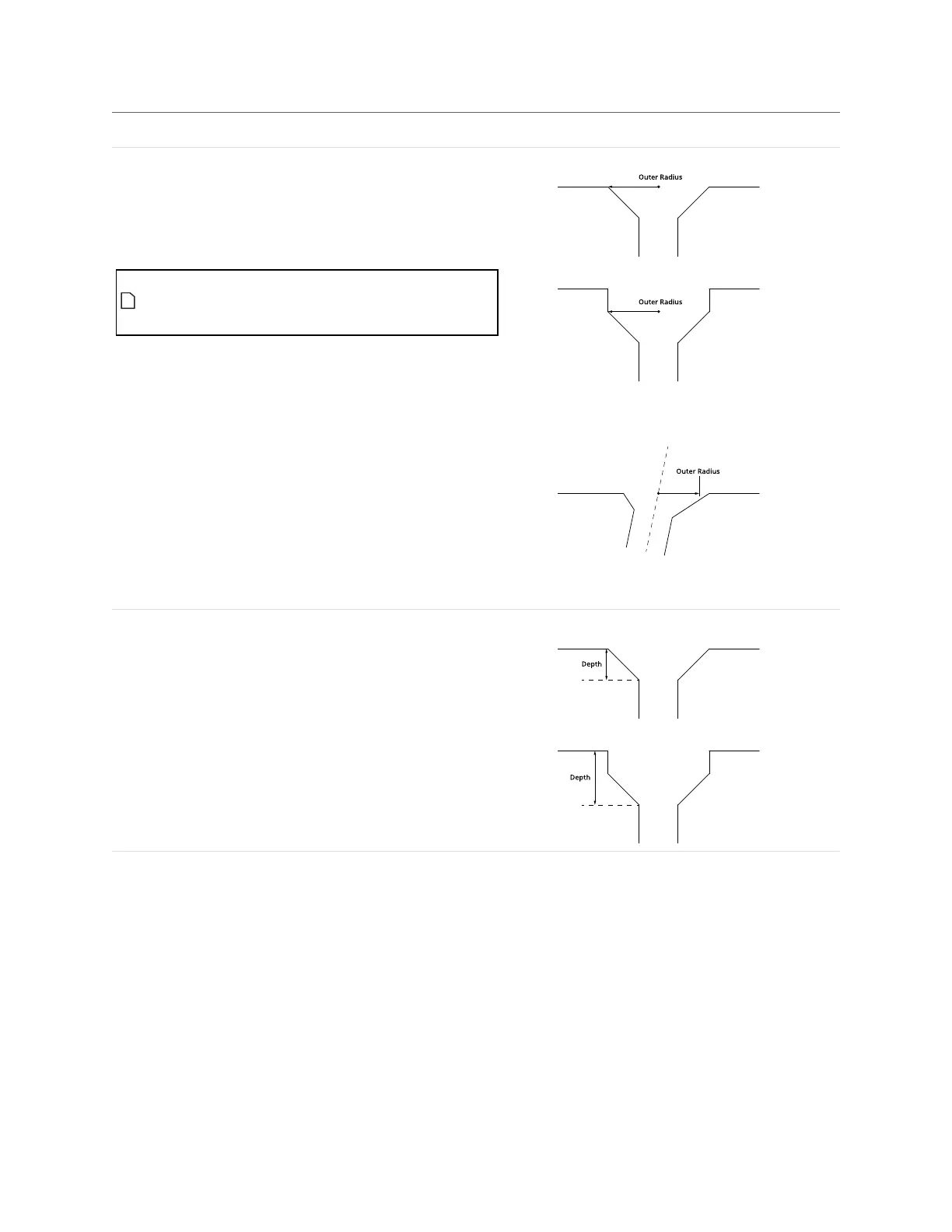

Measurement Illustration
Outer Radius
Determines the outer radius of the countersunk hole.
When a hole is cut at an angle relative to the surrounding
surface, the outer radius is calculated as if the hole were not cut
at an angle.
To convert the radius to a diameter, set the
Scale setting in the Output panel (displayed
after expanding the Filters section) to 2.
Depth
Determines the depth of the countersunk hole relative to the
surface that the countersunk hole is on.
