LMI Technologies Gocator 3210 User Manual

Gocator Snapshot Sensors: User Manual
Gocator Web Interface • 198

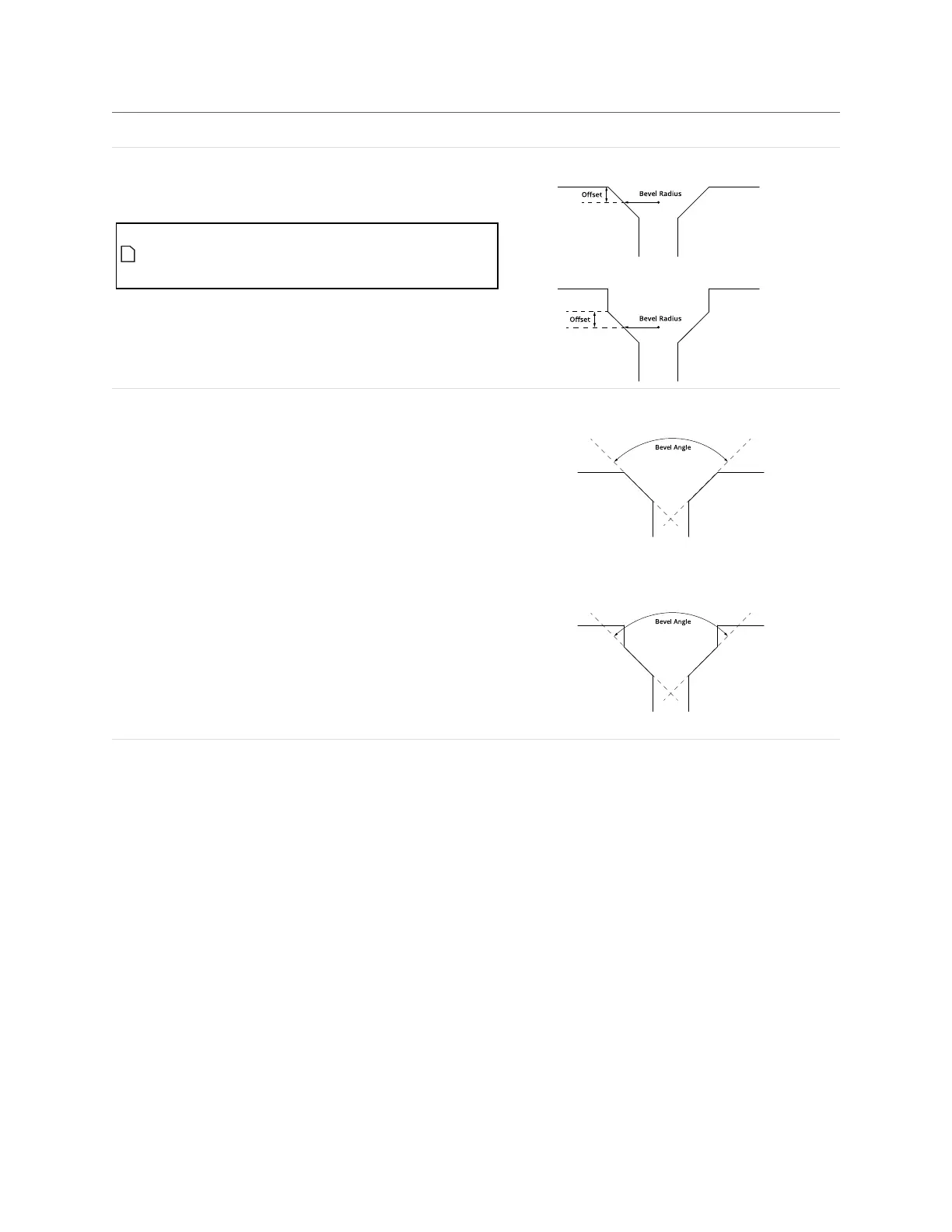

Measurement Illustration
Bevel Radius
Determines the radius at a user-defined offset (Offset setting)
relative to the surface that the countersunk hole is on.
To convert the radius to a diameter, set the Scale
setting in the Output panel (displayed after
expanding the Filters section) to 2.
Bevel Angle
Determines the angle of the hole's bevel.
Cone
Counterbore
