777 SERVICE MANUAL ELECTRIC SYSTEM
3

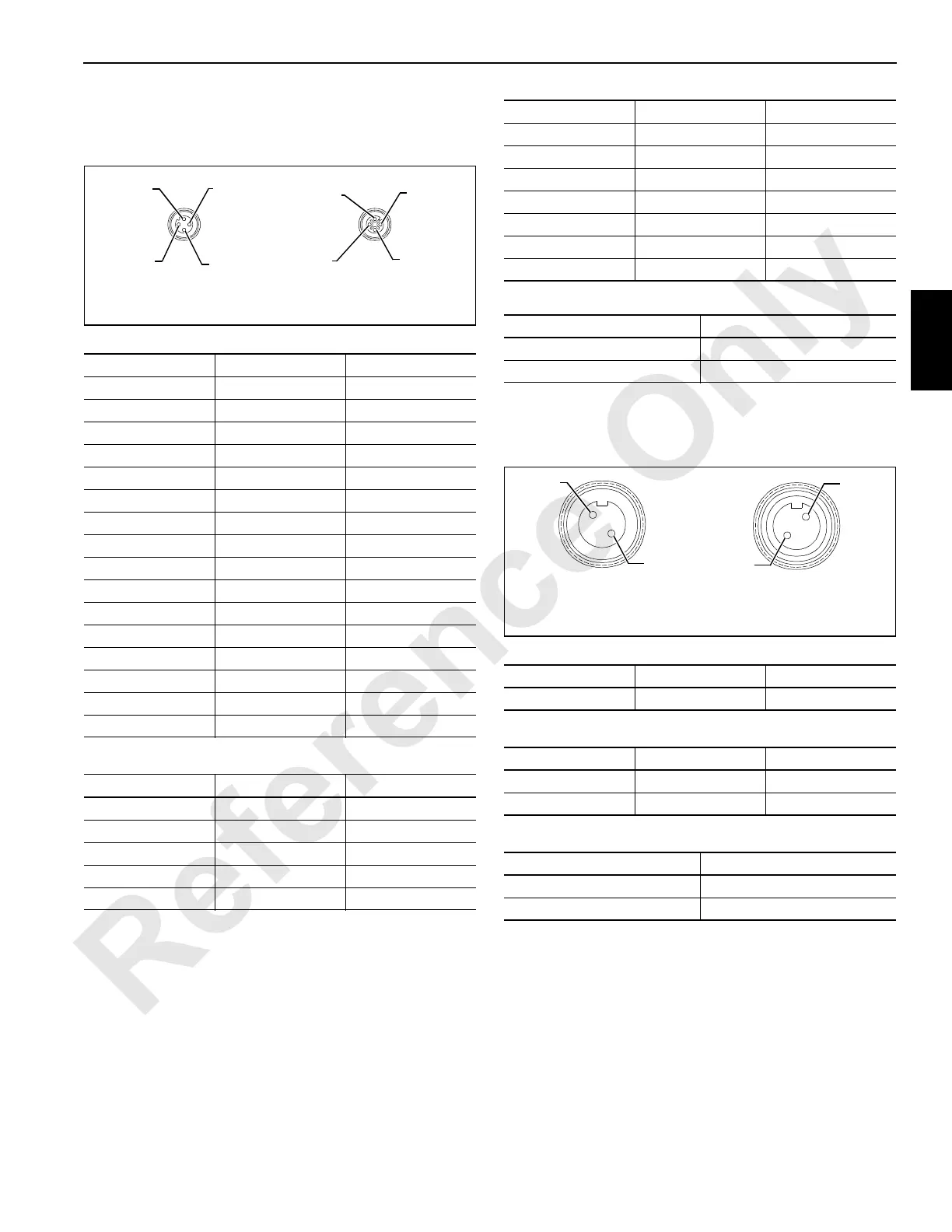

Micro-Change Type Connectors
4-Pole Plugs
Extension:
Plug With Cord:
Receptacle:
Quick-Change Type Connectors
2-Pole Plugs
Extension
Plug With Cord:
Receptacle:
Length Plug Part #
3 ft (0.9 m) M/F 477463
6.6 ft (2.0 m) F/F 477447
6.6 ft (2.0 m) M/F 477475
6.6 ft (2.0 m) F/F 90° 477488
6.6 ft (2.0 m) M/F 90° 477489
13.1 ft (4.0 m) F/F 477473
13.1 ft (4.0 m) M/F 477474
16.4 ft (5.0 m) M/F 477436
16.4 ft (5.0 m) F/F 477478
19.7 ft (6.0 m) M/F 477339
32.8 ft (10.0 m) M/F 477433
32.8 ft (10.0 m) F/F 477554
90 ft (27.4 m) F/F 477453
131.2 ft (40.0 m) M/F 477334
150.9 ft (46.0 m) M/F 477560
400 ft (122.0 m) M/F 477439
Length Plug Part #
3.28 ft (1.0 m) F 572575
6 ft (1.8 m) F 90° 572504
6.6 ft (2.0 m) F 572418
9.8 ft (3.0 m) F 572586
13.1 ft (4.0 m) M 572474
FIGURE 3-24
MaleFemale
1-Brown
3-Blue
4-Black
2-White
3-Blue
1-Brown
2-White
4-Black
13.1 ft (4.0 m) F 572476
16 ft (4.9 m) F 572472
16 ft (4.9 m) F 90° 572501
16.4 ft (5.0 m) M 572475
23 ft (7.0 m) F 572503
32.8 ft (10.0 m) M A01666
32.8 ft (10.0 m) F A02673
Plug Part #
M 589870
F 589908
Length Plug Part #
25 ft (7.6 m) M/F 477479
Length Plug Part #
6 ft (1.8 m) F 572432
30 ft (9.1 m) F 572565
Plug Part #
M 589862
M 589963
Length Plug Part #
Female
Male
1-Black
2-White
1-Black
2-White
FIGURE 3-25
