ELECTRIC SYSTEM 777 SERVICE MANUAL
3-40 Published 10-01-2012, Control # 045-08
3-Pole Plugs
Extension:
Plug With Cord:
Receptacle:
4-Pole Plugs
Plug With Cord:
Length Plug Part #
8 ft (2.4 m) M/F 477416
12 ft (3.7m) M/F 477432
20 ft (6.1 m) M/F 477430
45 ft (13.7 m) M/F 477448
Length Plug Part #
12 ft (3.7 m) F 572403
12 ft (3.7 m) M 572437
12 ft (3.7 m) M 572552
25 ft (7.6 m) F 572478
35 ft (7.6 m) F 572597
50 ft (15.2 m) M 572438
Plug Part #
M 589853
F 589861
M 589862
F 589866
M 589942
F 589952
Male
Female
1-Black
3-Green
2-White
3-Green
1-Black
2-White

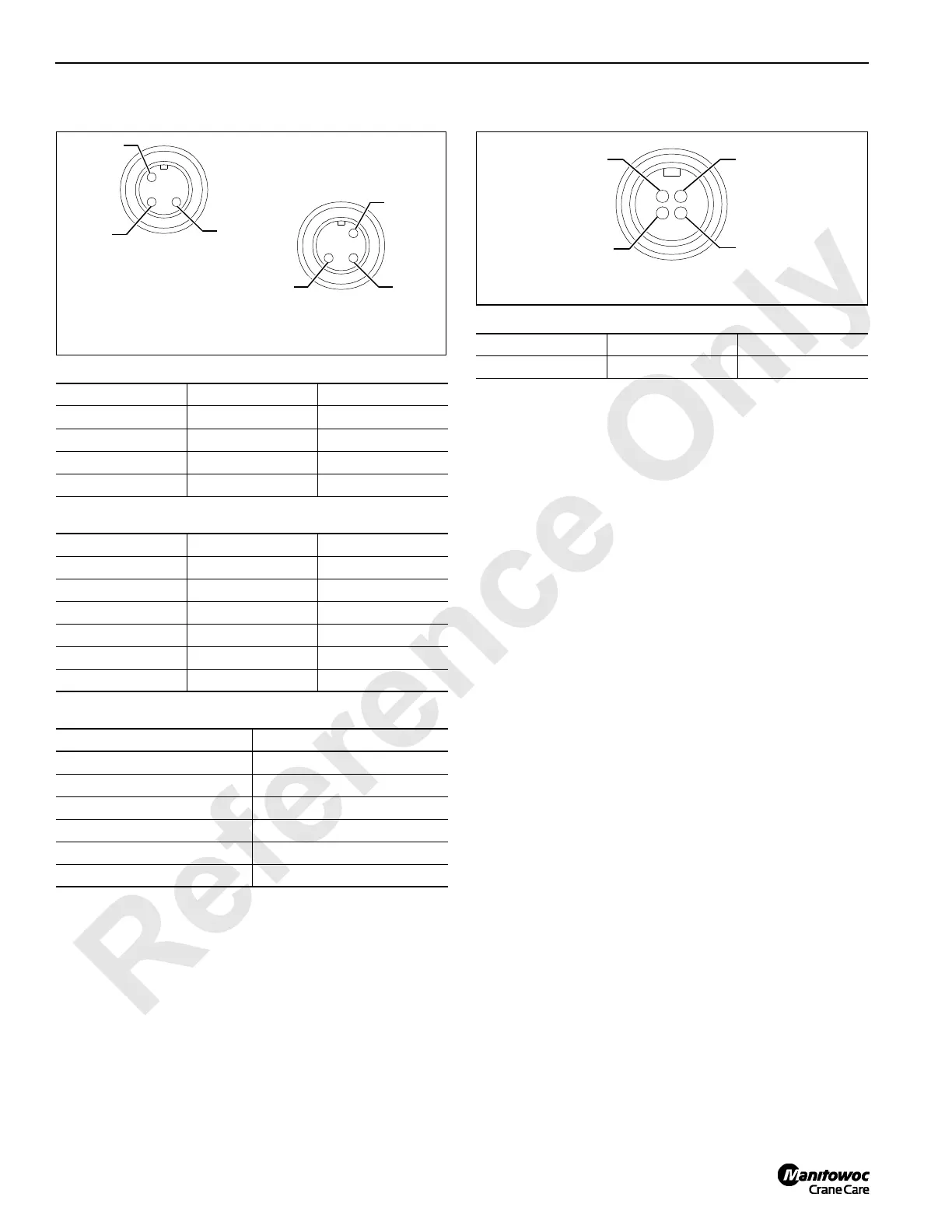

FIGURE 3-26
Length Plug Part #
20 ft (6.1 m) F 572566
1-Black2-White
3-Red
2-Green
Female
FIGURE 3-27
