Manitowoc 777 Service And Maintenance Manual

Reference Only
Manitowoc Published 10-01-2012, Control # 045-08 4-7
777 SERVICE MANUAL BOOM
4

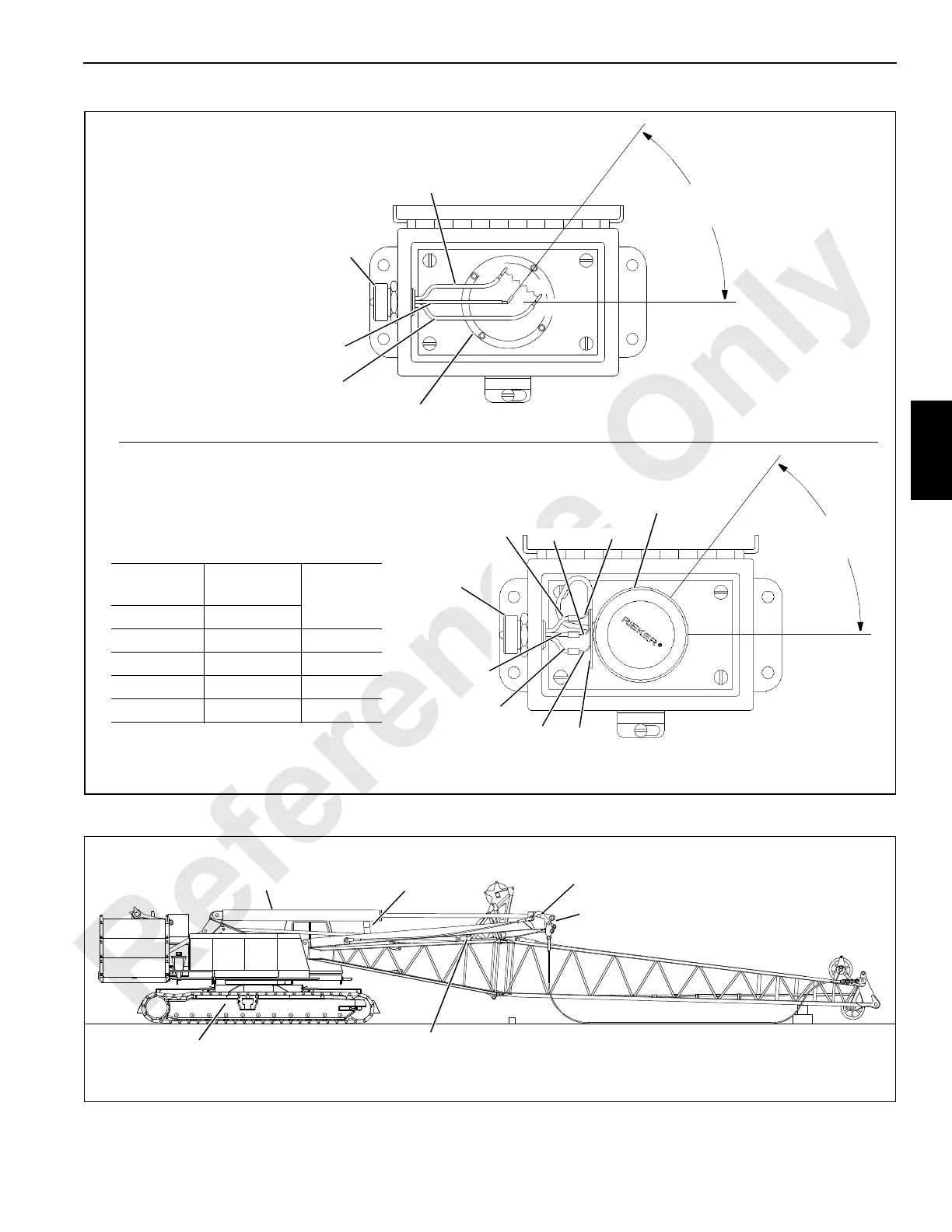

FIGURE 4-6
O-Black
52.5°
REF.
Boom Angle
Sending Unit
Pendulum-Type
Potentiometer
87FA-White
82BA-Green
3- Pole Receptacle
with Protective Cap
(+)
3
2
(-)
1
A990
52.5°
REF.
O-Black
87FA-White
82BA-Green
3- Pole
Receptacle
Solid State Sensor (+/- 60×)
M.C.C. #A09716
Vendor #CS17
VIEW B
Input Wires
Color
Sensor Wires
Color
Operation
Code
From To
Black Black Ground
Green White Signal
White Red 10 Volts DC
Green N/C
A1294
VIEW A
Black
Green
Red
White
Position Sensor
Like This
FIGURE 4-7
Boom Hoist
Cylinder
Block
Here
Unpin Boom Hoist
Cylinder Here
Mast
Pin Mast to
Boom Butt Here
A1107
Crawler or
Truck Crane
