Operating elements for crane operation
9.1 Overview of the operating elements
9 - 50 3 112 993 en Operating manual GMK 6400
12.07.2013

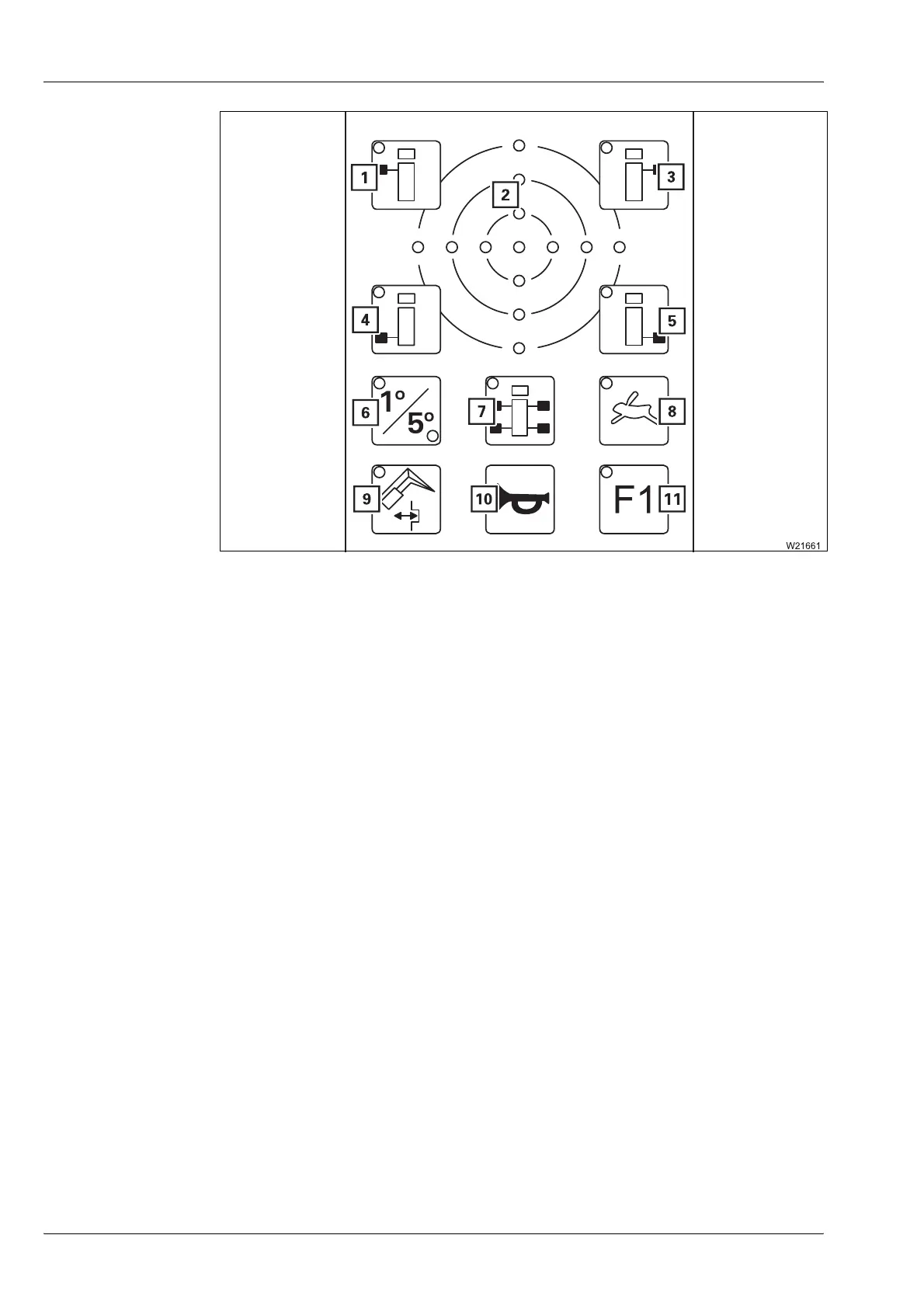

Outriggers con-
trol panel
1 Front left outriggers
à p. 9 - 67
2 Current inclination indicator
à p. 9 - 72
3 Front right outriggers
à p. 9 - 67
4 Rear left outriggers
à p. 9 - 67
5 Rear right outriggers
à p. 9 - 67
6 Switch measuring range
à p. 9 - 72
7 – Pre-selecting all supporting cylinders
– Pre-select automatic alignment
(as additional function F1)
à p. 9 - 67
à p. 9 - 67
8 Pre-select high-speed/normal speed mode
à p. 9 - 67
9 Additional function F1 on
10 Horn
à p. 9 - 108
11 Additional function F1 on
à p. 9 - 67
