Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
6 - 36 3 112 993 en Operating manual GMK 6400
12.07.2013
6.4.1 CHECKLIST: Removing the outrigger beams
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified there.

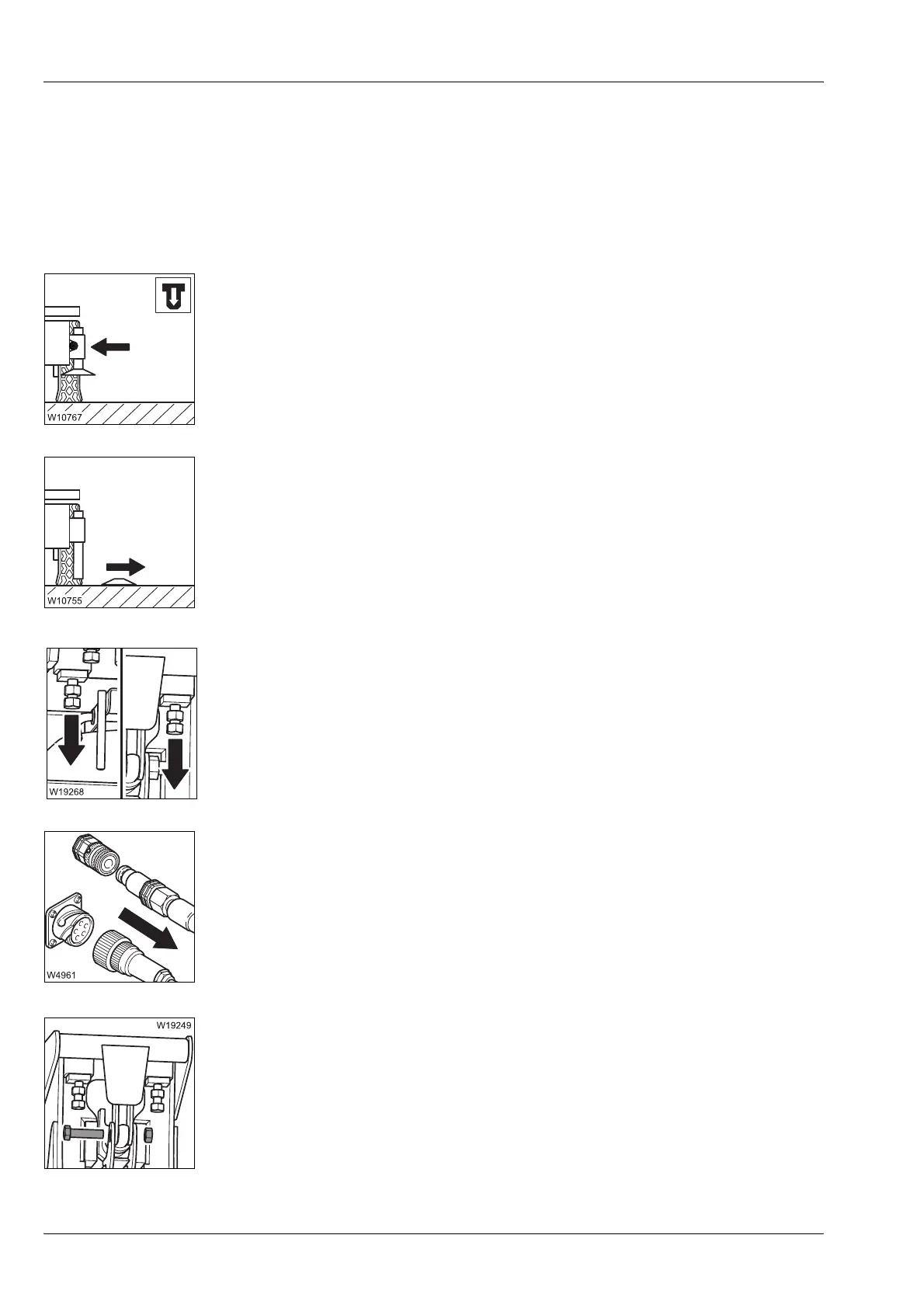

1. Prepare the truck crane – label the outrigger beams, retract, release and
bolt them to each other;
à p. 6 - 40.
2. If necessary remove outrigger pad;
à p. 6 - 41.
3. Unscrew the spacer;
à p. 6 - 45.
4. – Remove the hydraulic connections;
à p. 6 - 43
– Separate the electrical connection if necessary;
à p. 6 - 44.
5. Release the connection to the support box;
à p. 6 - 47.
