Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
6 - 38 3 112 993 en Operating manual GMK 6400
12.07.2013

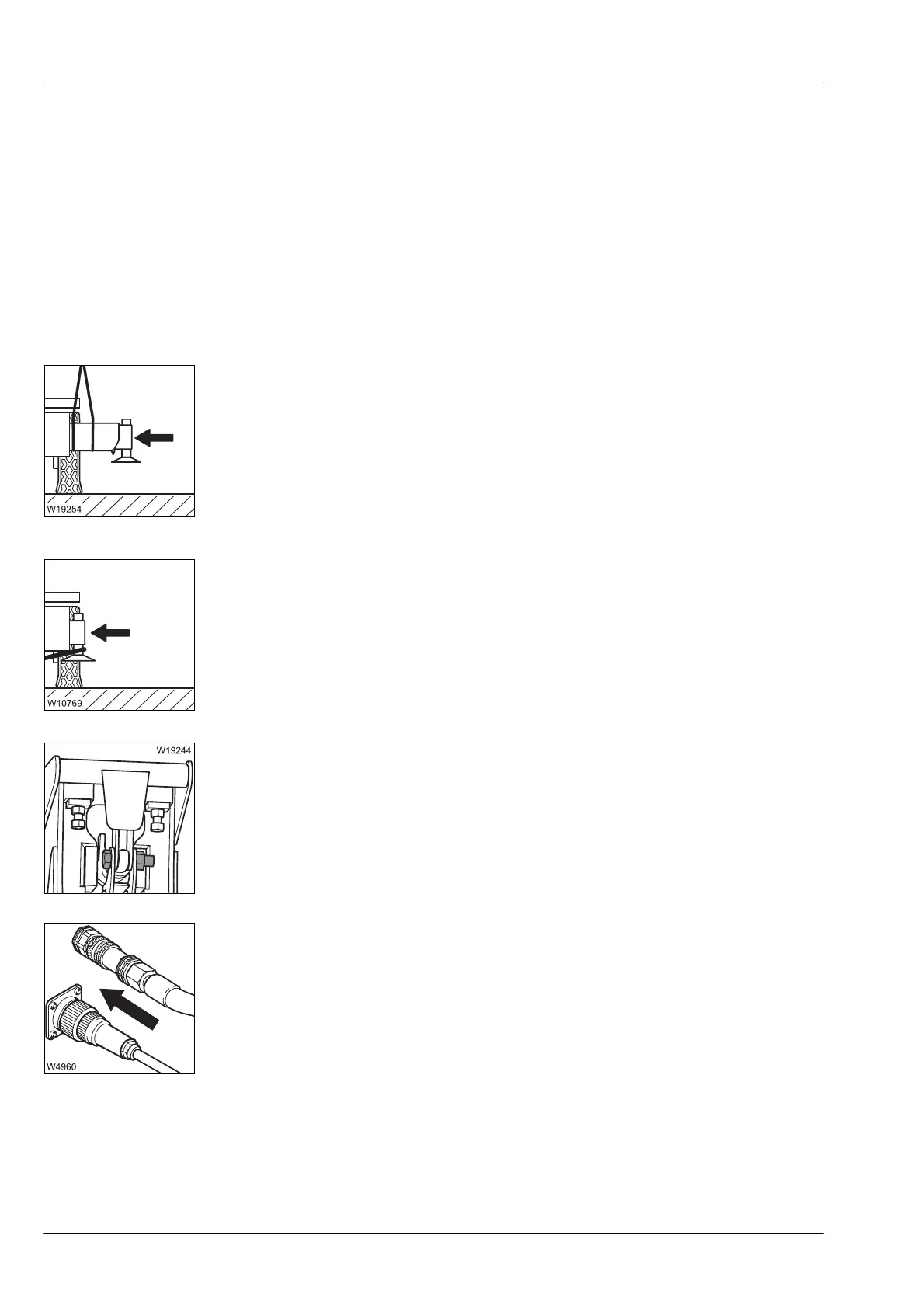

6.4.2 CHECKLIST: Installing the outrigger beams
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified there.
1. Prepare the truck crane for the installation of the outrigger beams;
à p. 6 - 40.
2. – Remove the connection elements from the outrigger box.
– Sling the outrigger beams at their centre of gravity.
– Lift the outrigger beams into the outrigger boxes and remove the lift-
ing gear.
à Inserting the outrigger beam, p. 6 - 49
3. Sling the outrigger beams and pull into the outrigger boxes until the
connection points align;
à p. 6 - 49.
4. Establish the connection to the support box;
à p. 6 - 47.
5. – Make the hydraulic connections;
à p. 6 - 43.
– Establish the electrical connection if necessary;
à p. 6 - 44.
