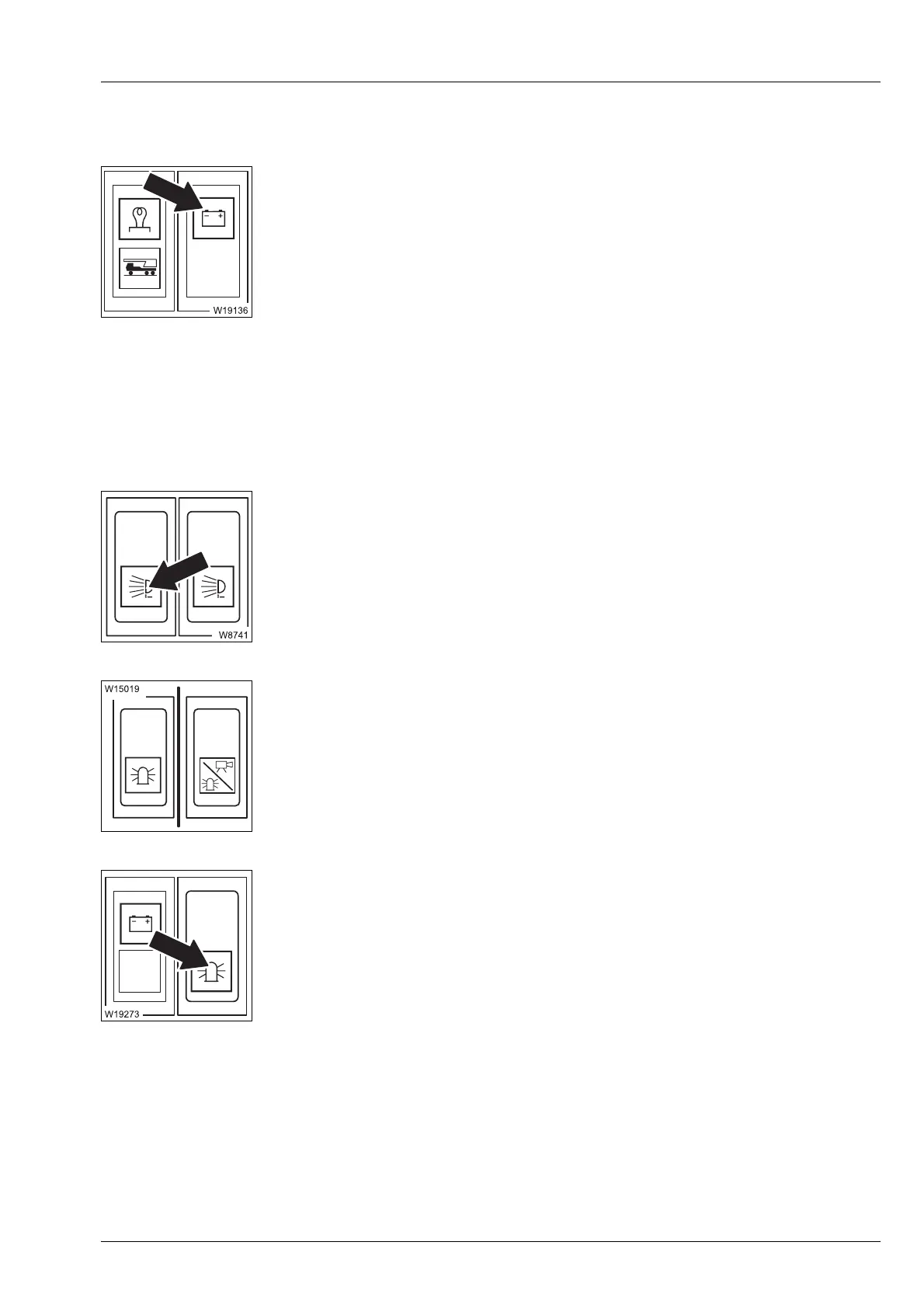

9.2.19 Electrical system
Voltage monitoring warning
9.2.20 Lighting, windscreen wiper/washing system
Lighting
Spotlight sockets on/off
Air traffic control light/camera on/off
Rotating beacon on/off
s
–On: Engine off – ignition on
or
Engine on – power failure – switch off engine
– Off: Engine on – no malfunction
à p. 10 - 3
– Switching on: Press down – voltage on (both sockets)
– Switching off: Press up – voltage off (both sockets)
– Switching on: Press down – voltage on socket switched on/camera on
– Switching off: Press up – voltage on, socket switched off/camera off
à Anemometer and air traffic control light, p. 12 - 133
à Camera on main boom, p. 12 - 138
– Switching on: Press down – lamp in button on
– Switching off: Press up – lamp in button off
