Operating elements for driving
3.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 3 - 33
12.07.2013

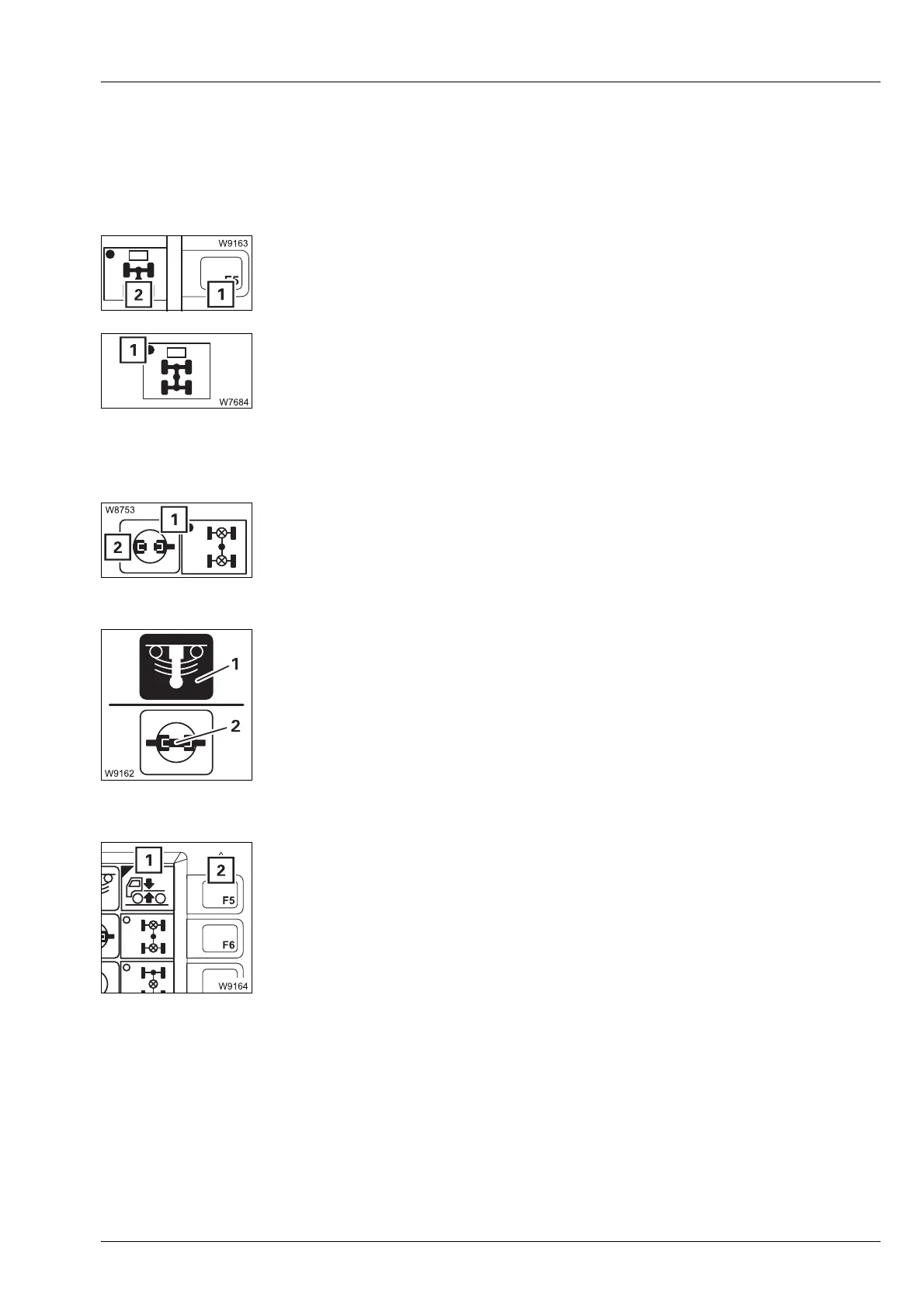

3.2.3 General rules for buttons and symbols on the display
The symbols shown as an example are not present on all crane types. The
following rules apply in all menus:
– A button (1) is only active when the corresponding symbol (2) is black.
Buttons next to a grey symbol always have no function.
– Some symbols have a dot (1). The colour of the dot indicates the current
switching state of the button.
For some elements, the dot (1) only indicates that the gear change has been
completed. Here, you will also receive a report on the current gear change
on an extra display (2).
– In these operating instructions, we always refer to colours in terms of
“The symbol is red”, for instance,
regardless of whether the background (1) of a symbol is red or whether
only parts (2) of a symbol are red. This applies to all symbols and all col-
ours.
– If the instruction given in this section is to “Press the button once...”,
for instance, this always refers to the button (2) next to or below the
symbol (1) shown. Even when the button itself is not visible in the
illustration.
– Green: Button on – the corresponding gear change is
being carried out
–Black: Button off – the corresponding gear change is not
being carried out
