Rigging work
12.6 Outriggers
Operating manual GMK 6400 3 112 993 en 12 - 43
12.07.2013
12.6.7 Moving the outrigger pads into working/driving position
H

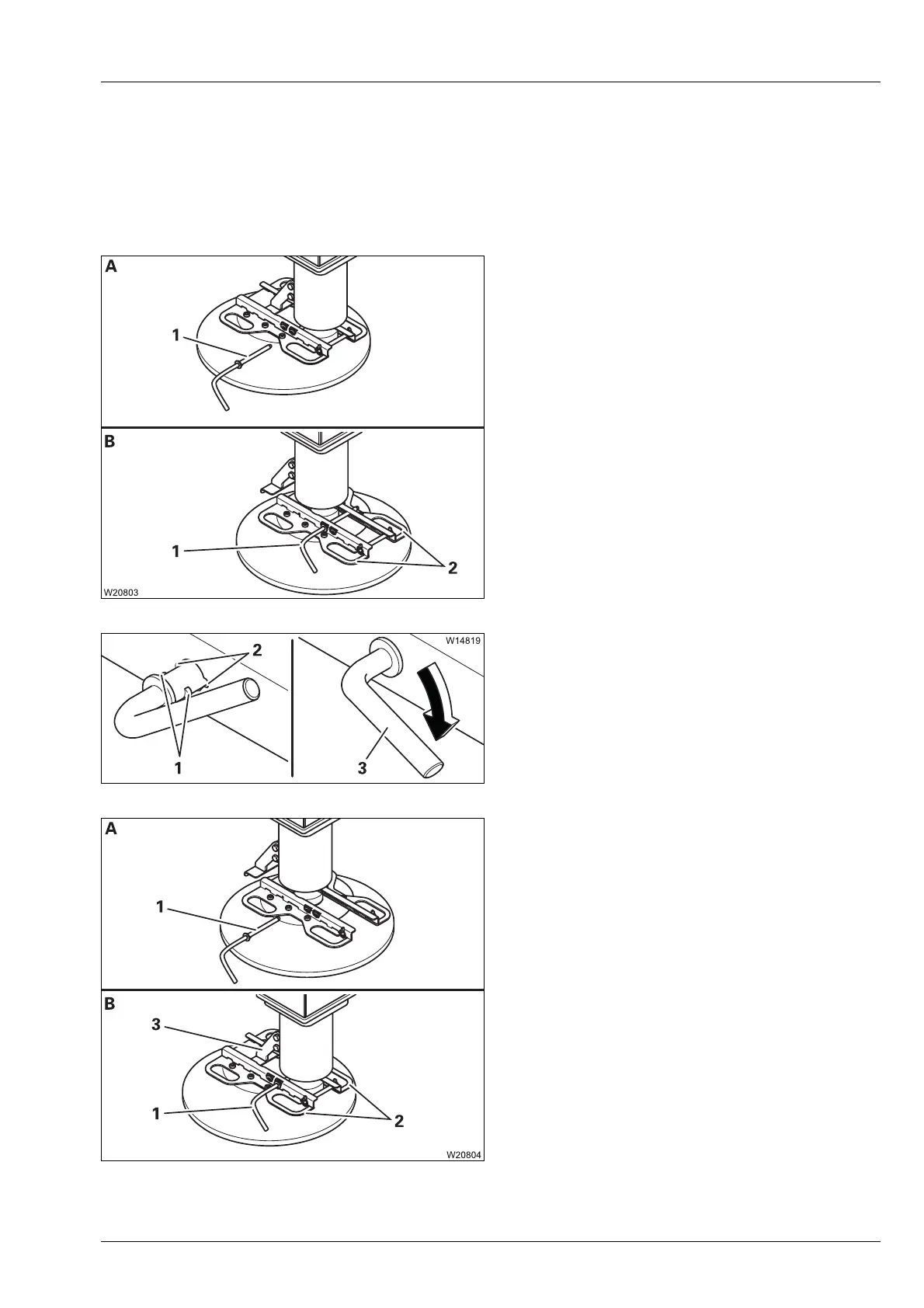

The illustrations show one outrigger pad. The pulling direction of the other
outrigger pads may differ from this.
Moving them into working position
• (A) – Pull out the pin (1).
• (B) – Pull the outrigger pad outwards by the
handles (2).
• Secure the outrigger pad with the pin (1).
• Secure the pin (1).
• Move the other outrigger pads into working
position in the same way.
Securing pin
• Plug the pin with the peg (1) through the cut-
out (2).
• Turn the grip (3) downward.
Moving them into driving position
• (A) – Pull out the pin (1).
• (B) – Push the outrigger pad by the handles
(2) as far as possible back onto the clamp (3).
• Secure the outrigger pad with the pin (1).
• Secure the pin (1).
• Move the other outrigger pads into driving
position in the same way.
