Driving modes and rigging for on-road driving
6.5 Installing/removing the supporting box
Operating manual GMK 6400 3 112 993 en 6 - 71
12.07.2013

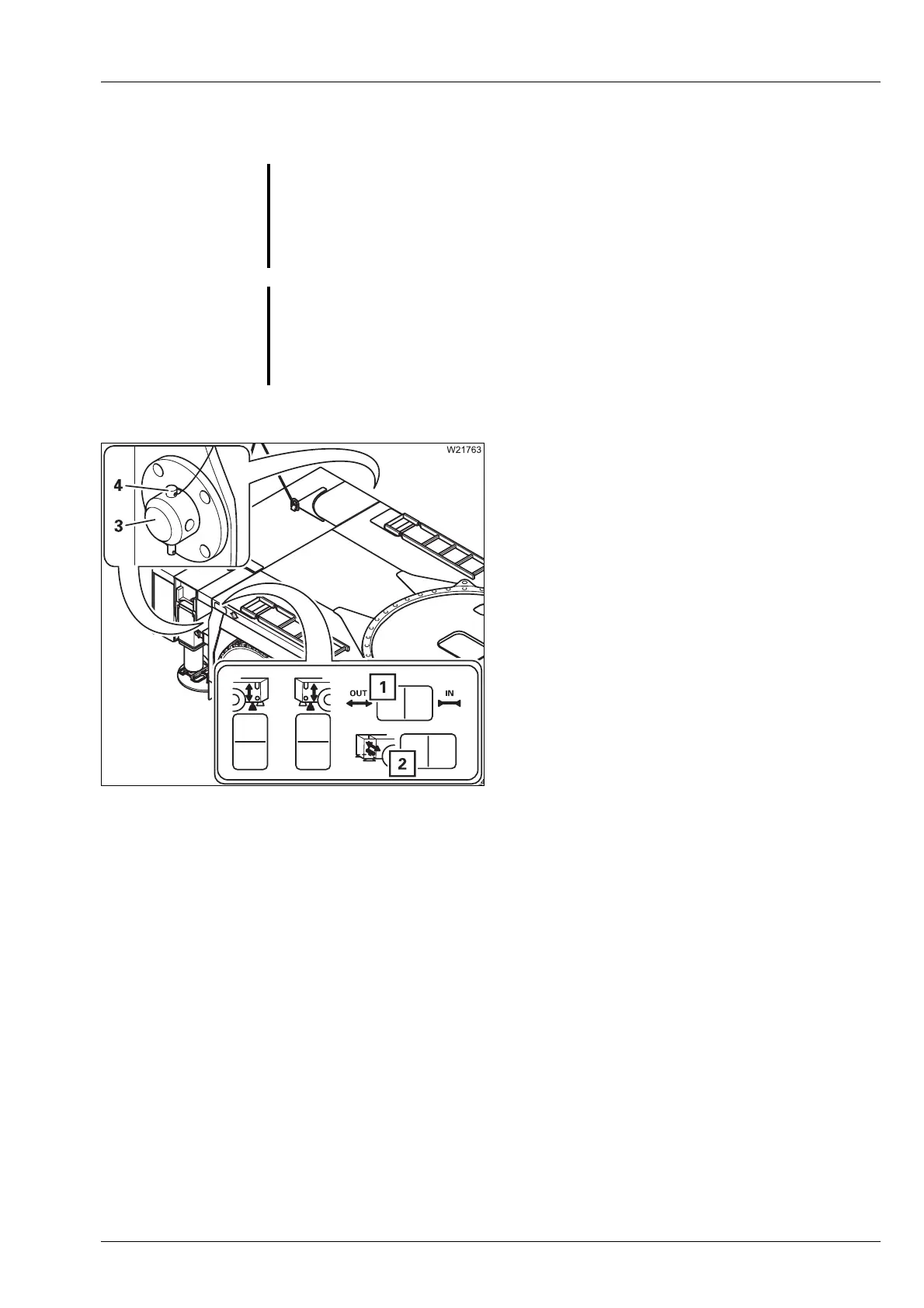

6.5.11 Fixing/releasing the outrigger pins
Locking
• Press the button (2) and button (1) on the
left.
• Extend the pins (3) completely through the
mountings.
The movement continues till you release the
button or the end position is reached.
• Secure all pins (3) using the retaining
pins (4).
• Push the retaining plugs in until the balls at
the bottom of the plugs are pushed out.
s
G
Risk of crushing when extending/retracting the pins
The pins on both sides are always moved at the same time from the
Sup-
porting box
control unit. Make sure that no-one is in the vicinity of the carrier
retainers on the other side of the vehicle when you extend or retract the
pins.
G
Risk of damage to the securing plugs
Make sure that the securing plugs with the chains are not pushed inwards
through the retainers on the carriage. This prevents the chains or the secur-
ing plugs being severed when the pins are extended or retracted.
