Rigging work
12.8 Rigging the auxiliary hoist
12 - 96 3 112 993 en Operating manual GMK 6400
12.07.2013
12.8.4 CHECKLIST: Removing the auxiliary hoist
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified there.
Requirements – The truck crane is stabilised with the outrigger span required for crane
work according to the
Lifting capacity chart; Ã Permissible outrigger spans,
p. 12 - 32.
– The counterweight and the auxiliary hoist are connected electrically and
hydraulically;
à p. 12 - 81, à p. 12 - 100.
– The current rigging code of the truck crane is entered in the RCL;
à Entering the rigging mode, p. 11 - 23.
– The railings on the auxiliary hoist are folded in;
à p. 12 - 106.

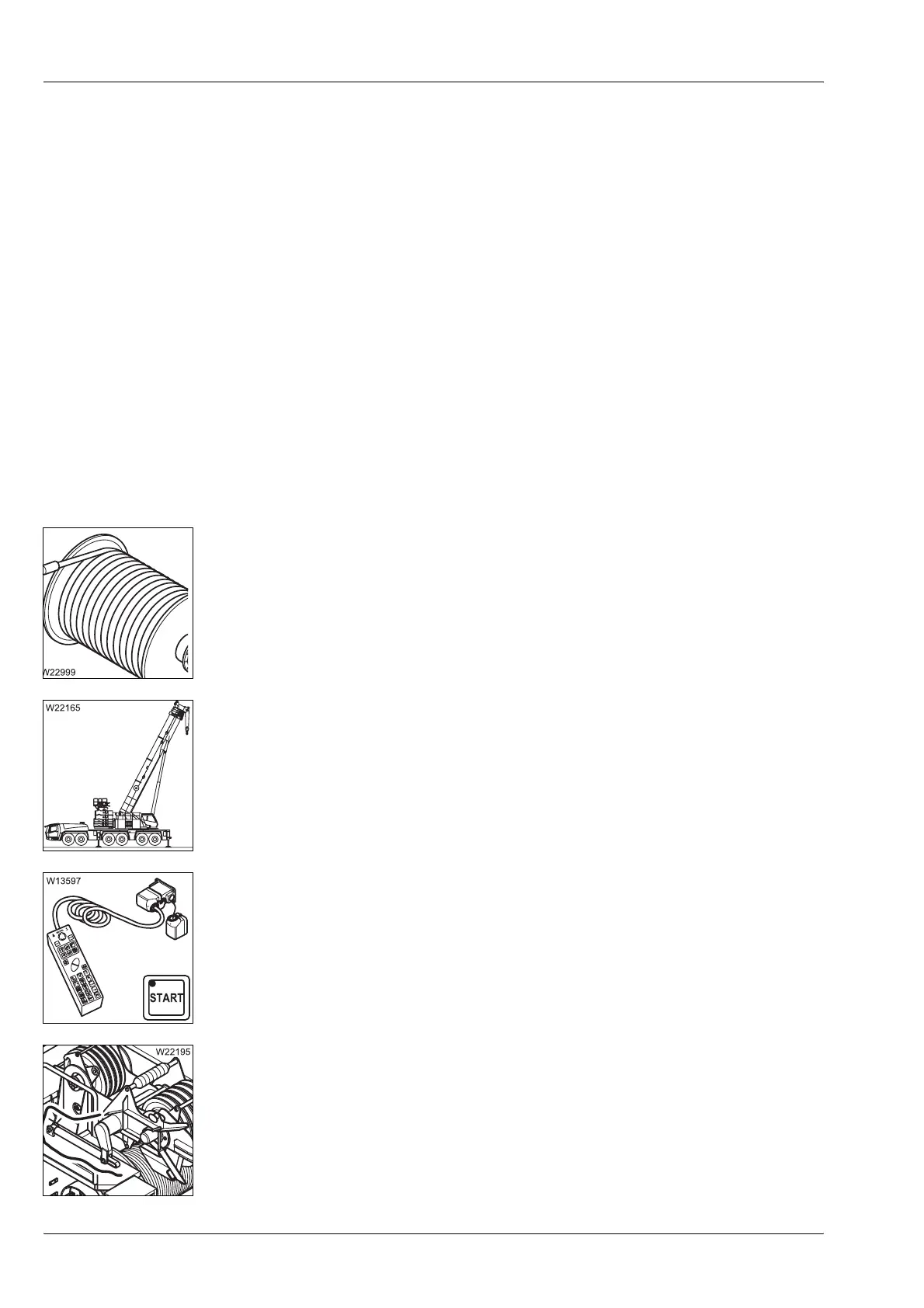

1. Unreeve the auxiliary hoist rope, roll onto the reel and fasten it to the
auxiliary hoist.
2. Slew the superstructure to the rear and lock the superstructure.
3. Connect the hand-held control to the rear right of the turntable and start
the crane engine;
à p. 12 - 21.
4. Lower the catcher;
à p. 12 - 99.
