Manitowoc GROVE GMK 6400

Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 49
12.07.2013

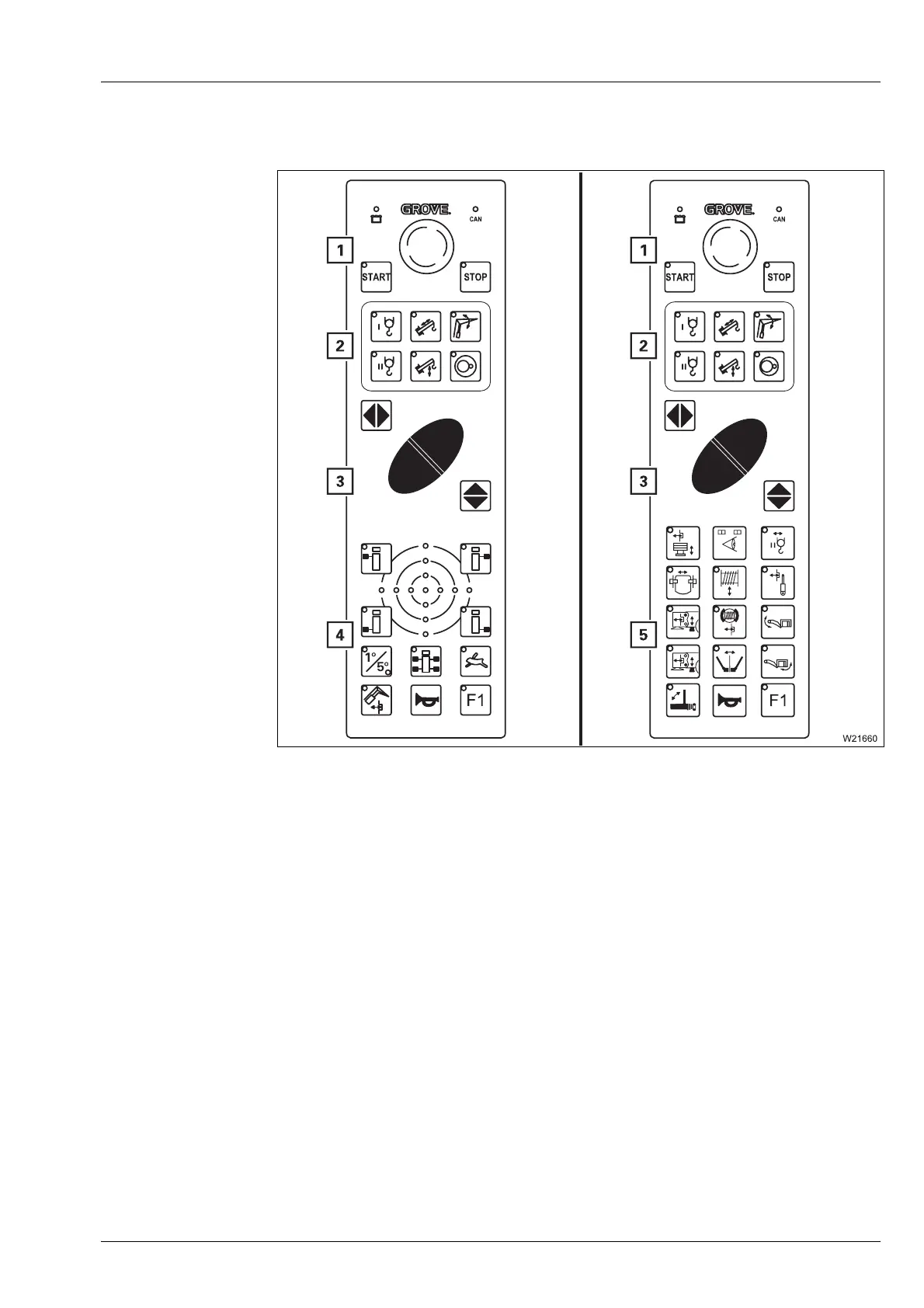

9.1.13 Hand-held controls
H
Required connections for the various movements; à p. 9 - 107.
s
1 Engine control panel à p. 9 - 108
2 Pre-select emergency operation
à p. 9 - 109
3 Function buttons
à p. 9 - 109
4 Outriggers control panel
à p. 9 - 51
5 Rigging control panel
à p. 9 - 52
