Operating elements for crane operation
9.2 Short description of the operating elements
9 - 108 3 112 993 en Operating manual GMK 6400
12.07.2013

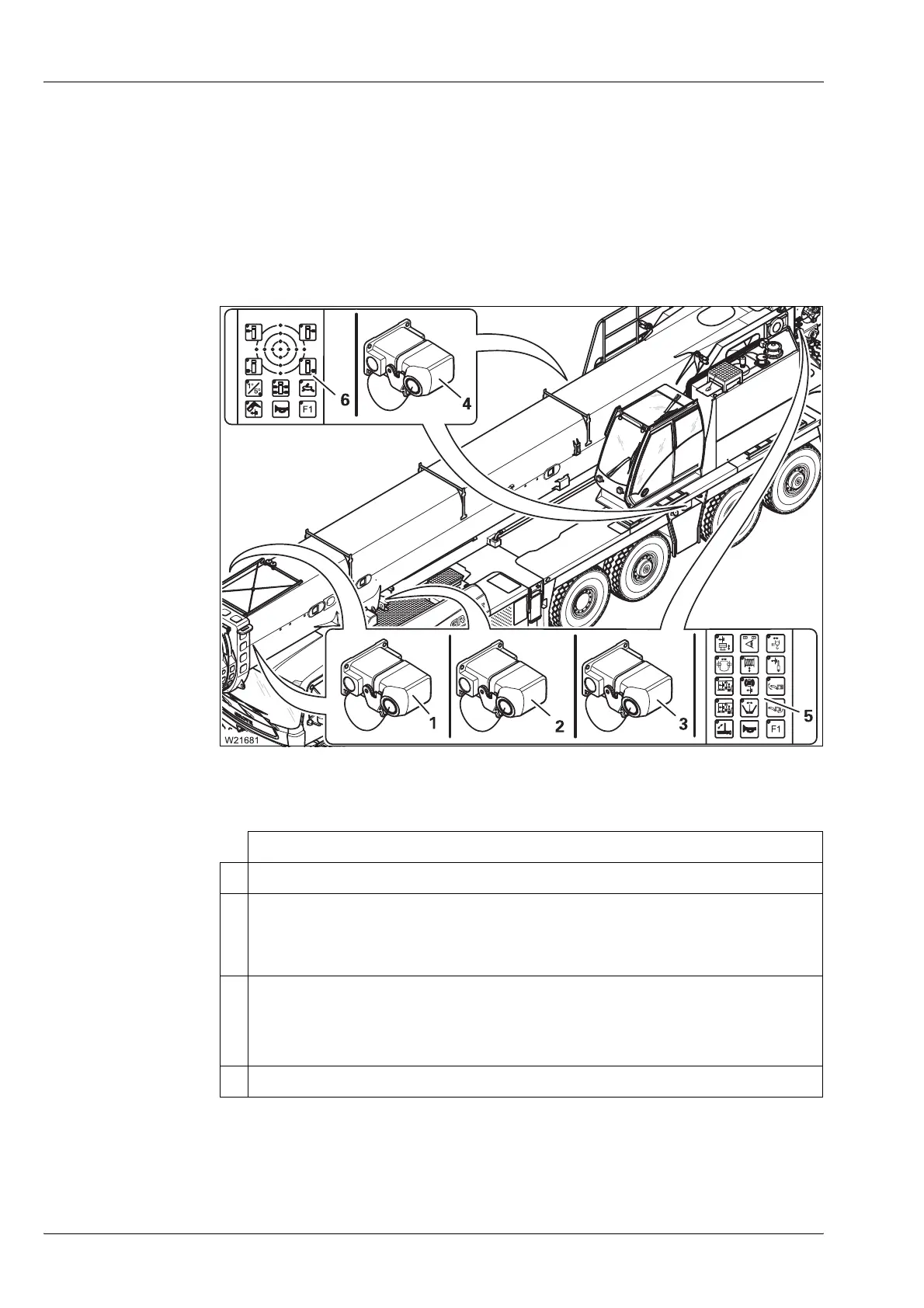

9.2.21 Hand-held control
Sockets for hand-
held control
The following applies to all sockets:
The hand-held control (6) is only active when it is connected to the socket (4).
The hand-held control (5) is only active when it is connected to the socket
(1) to (3).
– Pull plug: Engine off – ignition off
– Insert plug: Ignition on
à p. 12 - 21
Released operations
1 – Rigging Mega Wing Lift
1)
2 – Emergency operation for crane movements (except for telescoping
mechanism)
– Derrick lattice extension
1)
3 – Emergency operation for crane movements
– Rigging counterweight
– Rigging the auxiliary hoist
1)
4 – Operating outriggers
1)
Additional equipment
