Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 109
12.07.2013

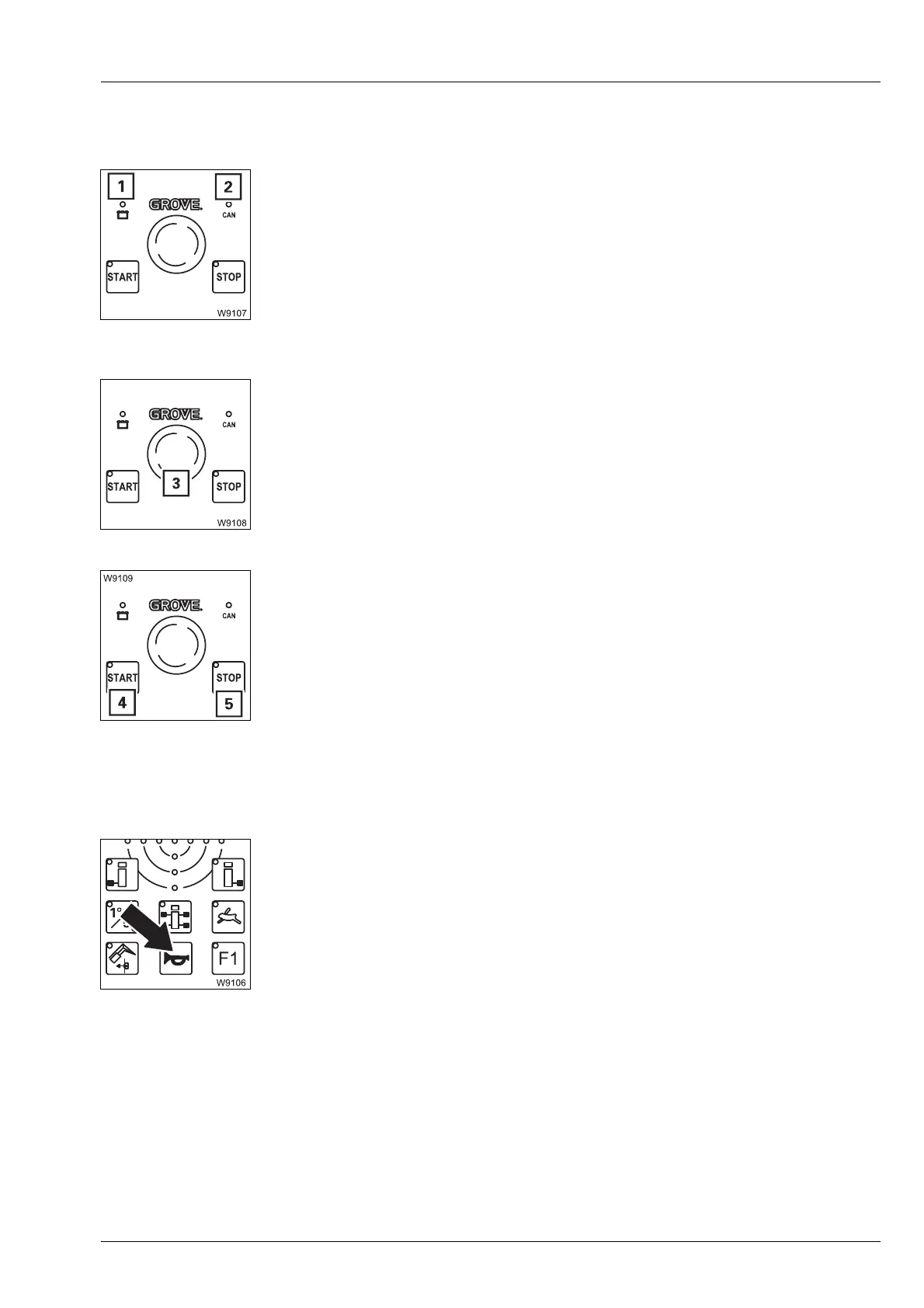

Engine control
panel
à Starting the engine – with the hand-held control, p. 10 - 15
Horn The ignition is switched on.
s
1 Voltage monitoring
–On: Ignition on
– Off: Ignition off
2 CAN monitoring
–On: Hand-held control connected – no malfunction –
goes out after 20 seconds
– Flashing: Hand-held control connected – malfunction
3 Emergency stop switch
May only be used in an emergency.
–Press: Engine off – crane functions stop immediately
Switch engages
– Turn the engaged
switch:
Switch returns to initial position – crane func-
tions released
4 START engine
– Press 1 x: Engine on
5 STOP engine
– Press 1 x: Engine off
–Press 1 x: – Hand-held control on the superstructure socket –
Superstructure horn on
– Hand-held control on the carrier socket –
Carrier horn on
