Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 81
12.07.2013

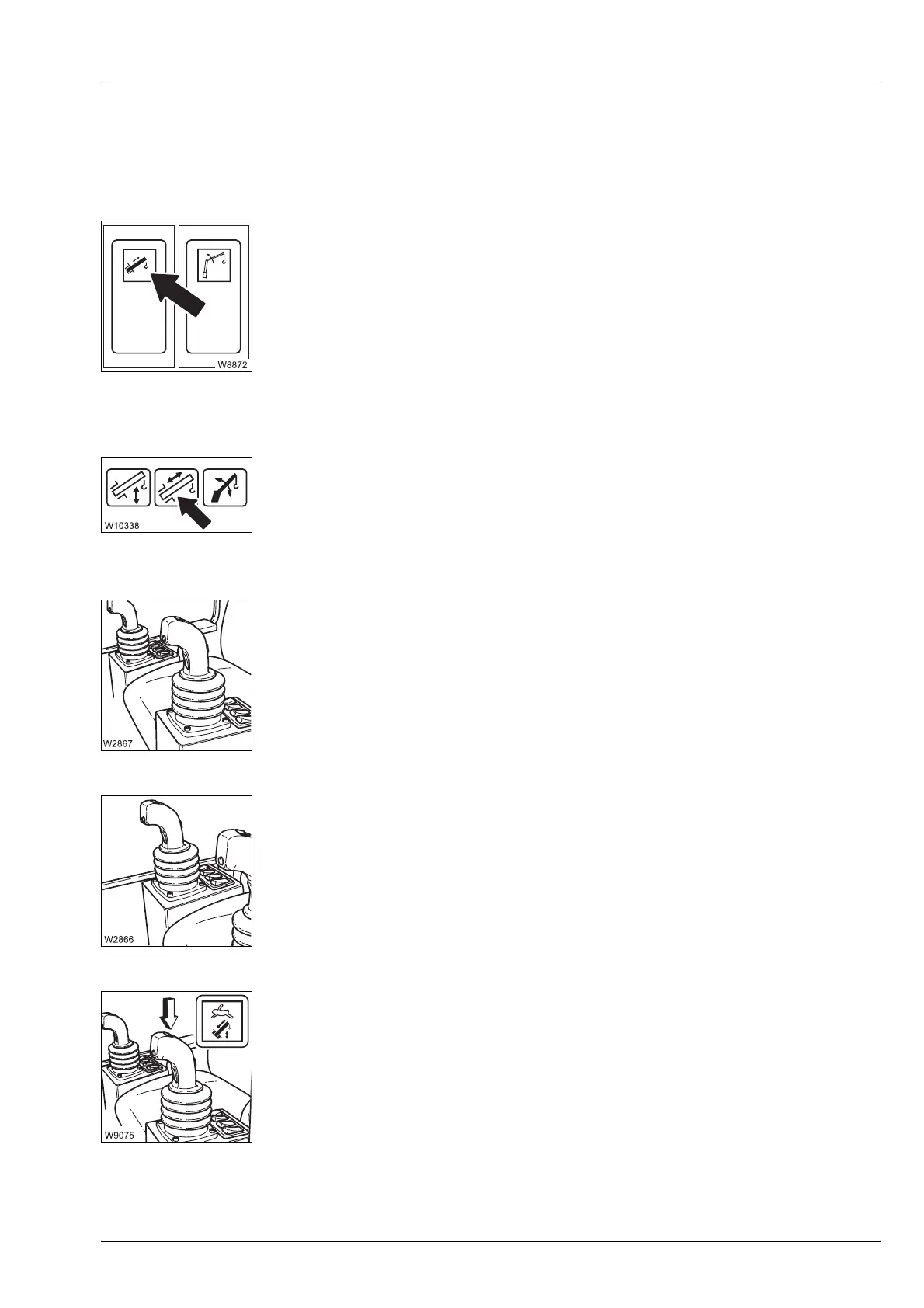

9.2.15 Telescoping mechanism
Control panels à Telescoping mechanism, p. 11 - 68.
Telescoping mechanism on/off
There is a lamp in the button.
Power units display
Left control lever
Control lever configuration – version 1
Right control lever
Control lever configuration – version 2
Button and lamp for derricking gear/telescoping mechanism high-speed
mode
Short description with derricking gear;
à p. 9 - 80.
s
– Press 1 x: – Lamp bright – telescoping mechanism on,
Power units with the same control lever configuration
off
– Lamp dim – telescoping mechanism off
à p. 11 - 76
– Green: Telescoping mechanism on
–Red: Telescoping mechanism off
– Back: Retract
–Forward: Extend
à p. 11 - 76
– To the left: Retract
– To the right: Extend
à p. 11 - 76
