Operating elements for driving
3.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 3 - 53
12.07.2013

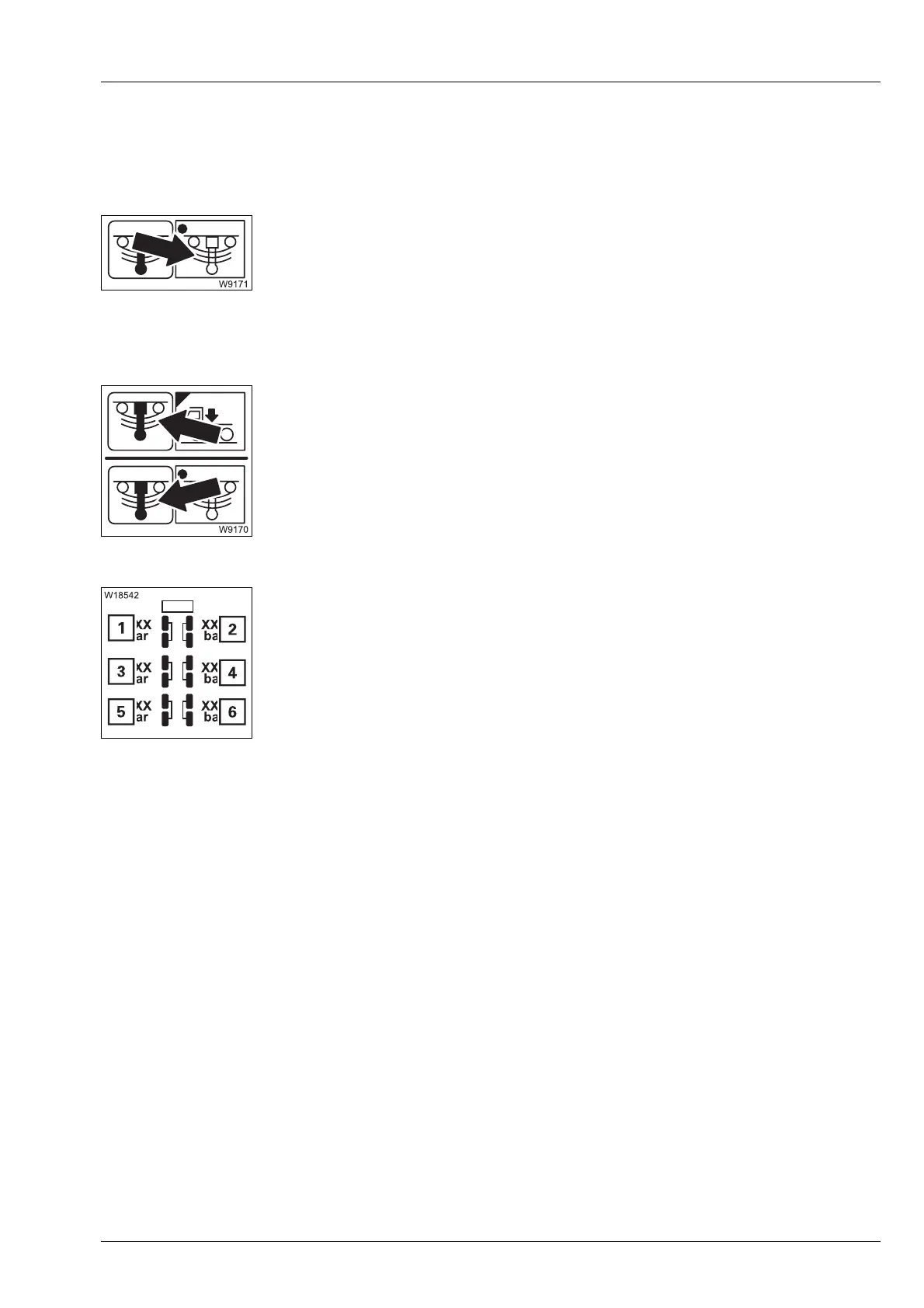

3.2.13 Suspension
à Switching the suspension on/off, p. 5 - 14.
Suspension on/off
Suspension display
In the main menu and in the
Level adjustment system submenu
Suspension operation pressure gauge
– Switching on: Press button 1 x – dot green
– Switching off: Press button 1 x – dot black
à p. 5 - 15
– Green: Suspension on – enabled for on-road driving
–Red: Suspension off – blocked for crane operation
à p. 5 - 15
1 Suspension pressure, 1st and 2nd axle lines, left-hand side
2 Suspension pressure, 1st and 2nd axle lines, right-hand side
3 Suspension pressure, 3rd and 4th axle lines, left-hand side
4 Suspension pressure, 3rd and 4th axle lines, right-hand side
5 Suspension pressure, 5th and 6th axle lines, left-hand side
6 Suspension pressure, 5th and 6th axle lines, right-hand side
