Starting/turning off the engine for driving
4.1 Starting the engine from the driver's cab
Operating manual GMK 6400 3 112 993 en 4 - 23
12.07.2013

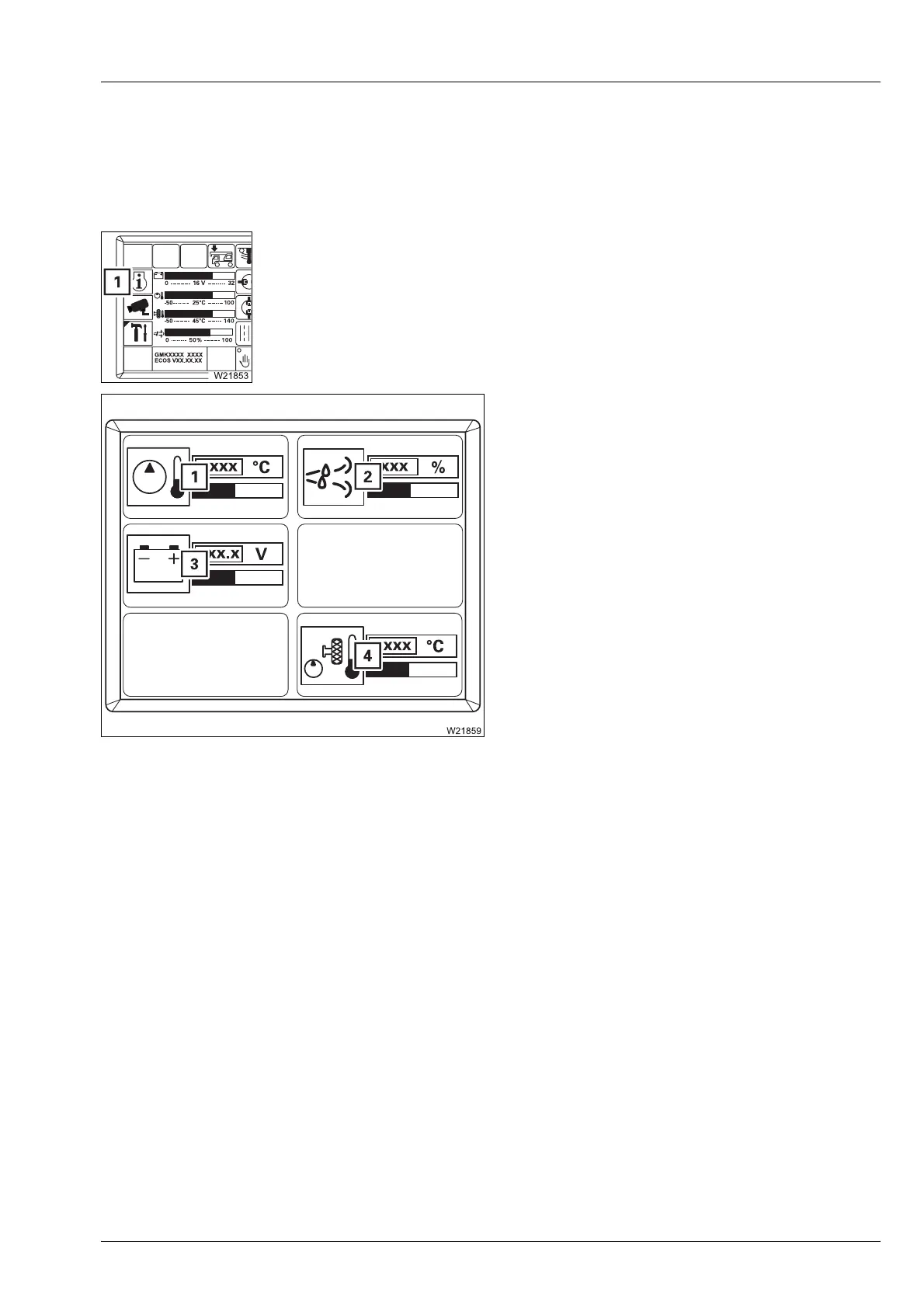

4.1.12 Monitoring submenu
The Monitoring submenu provides an overview of the most important meas-
ured values.
• If necessary, open the main menu ö and press the button (1) once.
The
Monitoring submenu opens.
The following values are displayed:
The colour of the bar below the values indi-
cates in which area the value can be found.
1 The hydraulic oil temperature in °C (°F)
2 DEF supply in per cent
3 Voltage in Volts
4 Oil temperature hydraulic drive axle line 4
and 5 in °C (°F)
Green: Value O.K.
Yellow: Limit value almost reached
Red: Limit value exceeded (or not reached) – warning message;
à p. 5 - 47.
