Rigging work
12.8 Rigging the auxiliary hoist
12 - 106 3 112 993 en Operating manual GMK 6400
12.07.2013

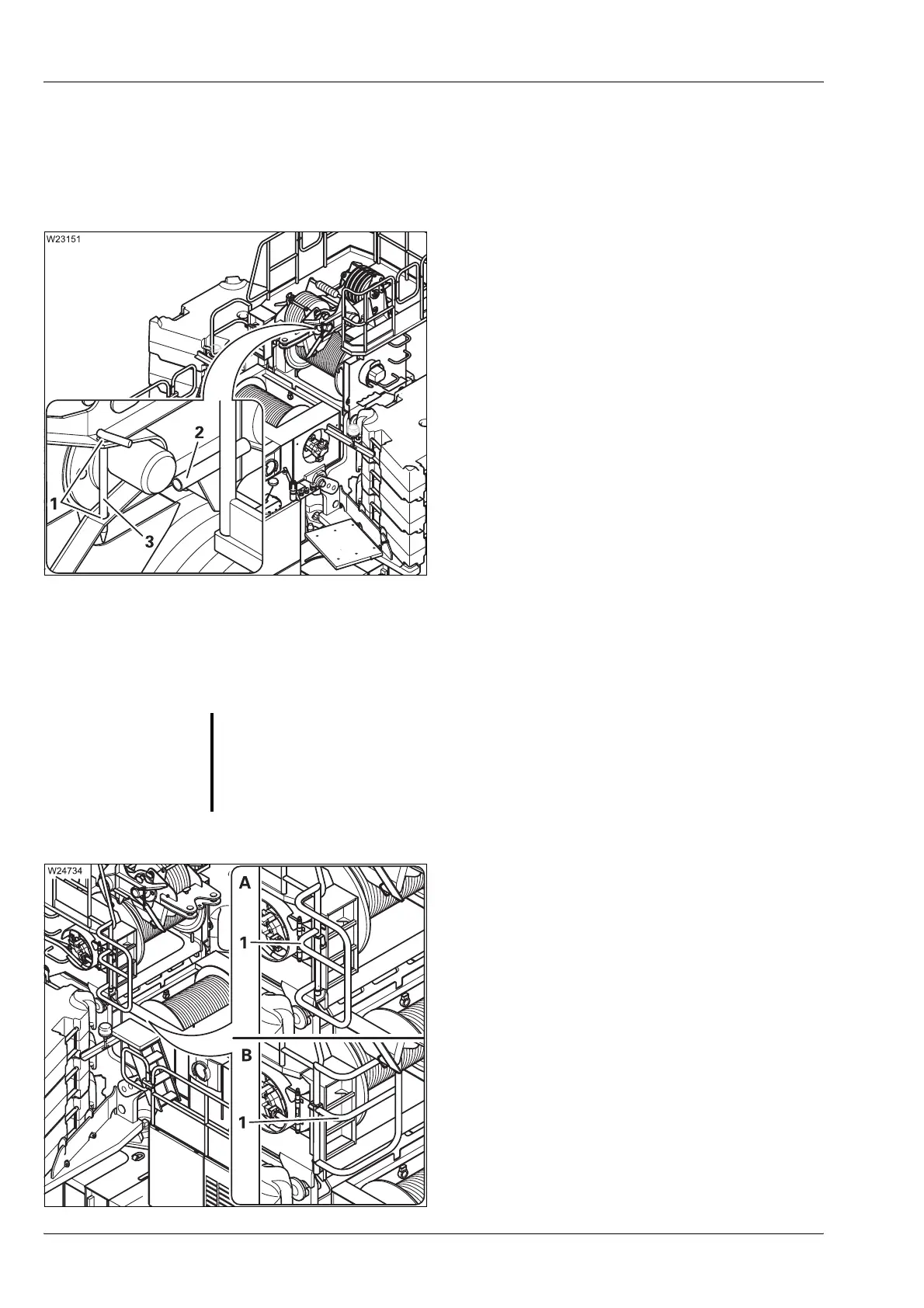

12.8.11 Securing the upper hook block in the catcher
If the upper hook block remains in the catcher during transport or during
operation, it must be secured there.
• Check that the pins (3) are inserted and
secured with retaining pins on both sides.
If the upper hook block is not secured, secure
it as follows:
• Remove the retaining pins from both sides
and pull the pins (3) out of the holders (2).
• Insert the locking pins on both sides into the
holders (1).
• Secure the pins using the retaining pins.
12.8.12 Railings on the auxiliary hoist
•
You must also observe the railing notice on the turntable; Ã p. 12 - 135.
(A) – Folding out
• Lift the railing (1) and fold it outwards.
(B) – Folding in
• Lift the railing (1) and fold it inwards until it
latches into place.
G
Risk of accidents when railings are not folded out!
The railings provide protection from falling. Always fold out the railings
before moving onto the auxiliary hoist.
