Operating elements for crane operation
9.2 Short description of the operating elements
9 - 58 3 112 993 en Operating manual GMK 6400
12.07.2013

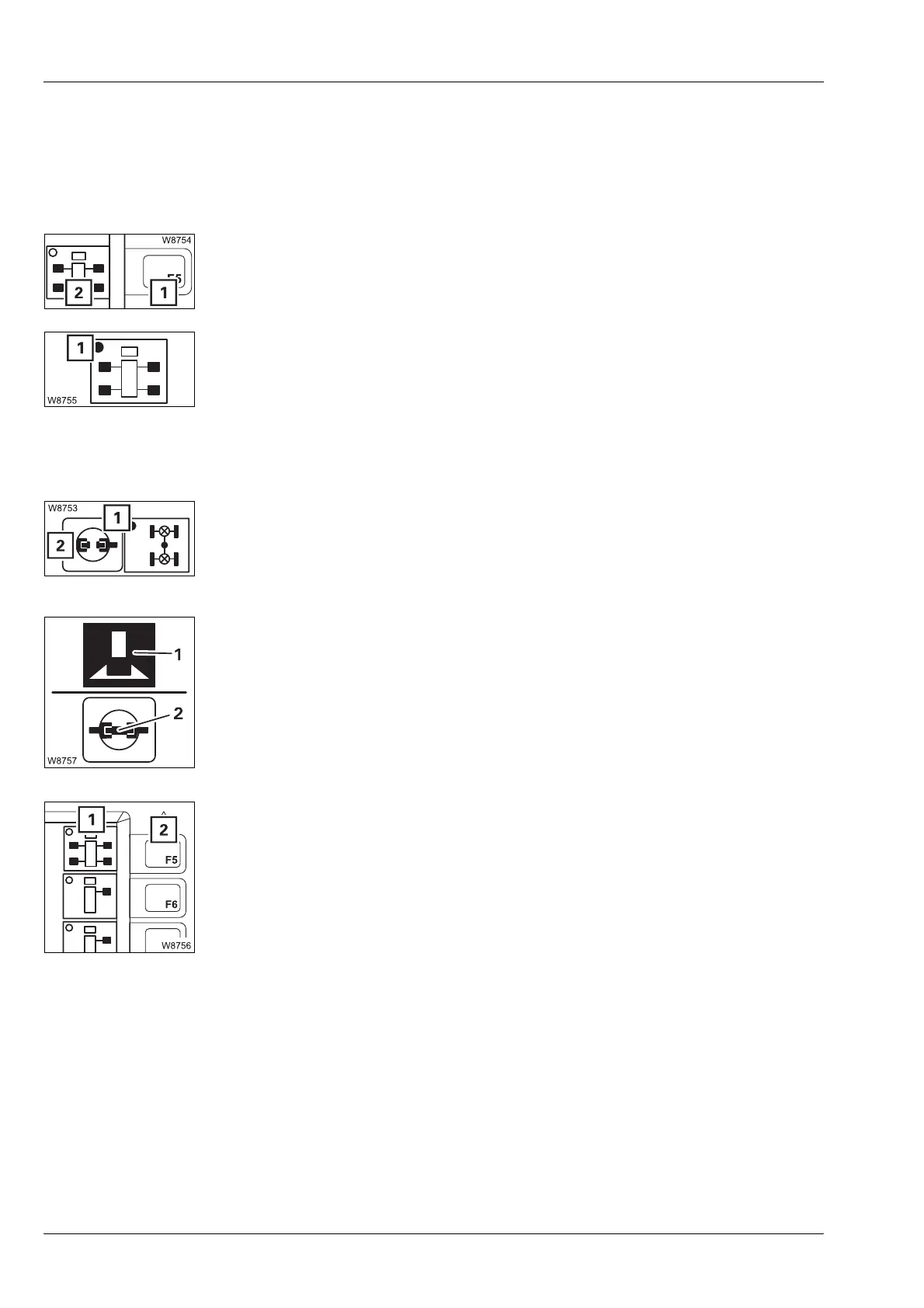

9.2.2 General rules for buttons and symbols on the display
The symbols shown as an example are not present on all crane types. The
following rules apply in all menus:
– A button (1) is only active when the corresponding symbol (2) is black.
Buttons next to a grey symbol always have no function.
– Some symbols have a dot (1). The colour of the dot indicates the current
switching state of the button.
For some elements, the dot (1) only indicates that the switching operation
has been completed. Here, you will also receive a report on the current
gear change on an extra display (2).
– In these operating instructions, we always refer to colours in terms of
“The symbol is red”, for instance,
regardless of whether the background (1) of a symbol is red or whether
only parts (2) of a symbol are red. This applies to all symbols and all
colours.
– If it says in this section, e.g. to “Press the button (1)...”, this always refers
to the button (2) next to or below the symbol (1) shown. This applies even
when the button itself is not visible in the illustration.
–Green: button on – the corresponding gear change is being
carried out
–Black: button off – the corresponding gear change is not being
carried out
