Crane operation
11.5 Working range limiter
11 - 124 3 112 993 en Operating manual GMK 6400
12.07.2013
11.5.4 Entering limit values/objects manually
Limit values The limit values for the overall height, the working radius, and the slewing
range are entered in the same way.
– For overall height/working radius
• Press the button once:
– For slewing angles
• Open the Enter slewing angle submenu
• Press the button once:
Entering a limit value
The bar (3) is red – input on.
To cancel the input – press button
ö once.
• Press button (2) once – the dot will turn green, manual input on
• (A) – Enter the new limit value, e.g. 17.5, with the switch (1) on display (4)
• (B) – Press button Ö once
– Display (5) = new limit value
– Display (4) = current value, e.g. 3.0
–Bar (3) goes out
–Dot (2) is black, manual input off

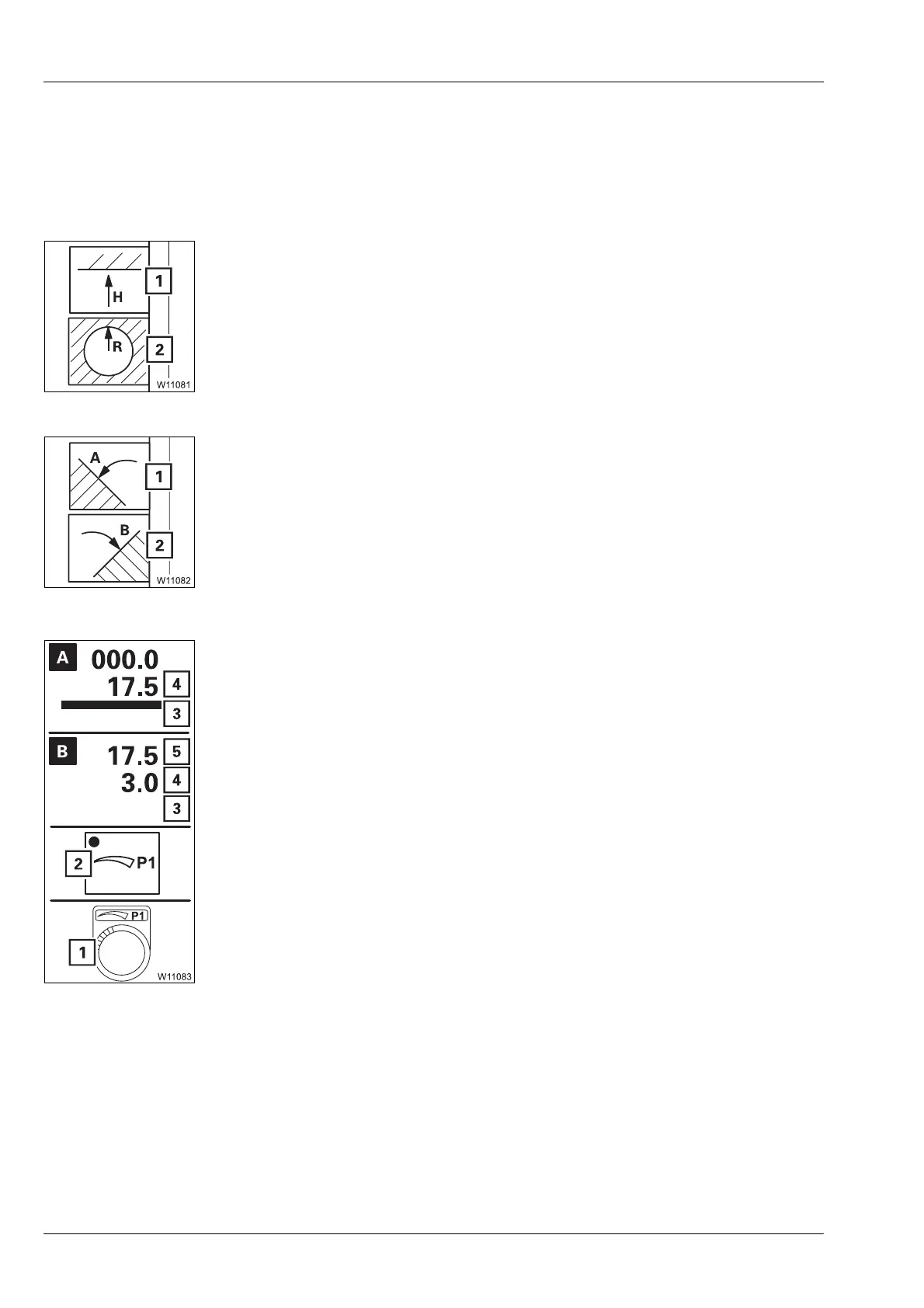

1 For the overall height
2 For the working radius
1 For slewing angle A
2 For slewing angle B
