Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 71
12.07.2013
9.2.8 Raise axle
When the suspension is switched off (blocked), the Raise axle function can be
used to raise or lower axle lines or axle pairs, depending on the selection
made.
Outrigger control
units
Raise axle display
Switching on axle raising
Press button (2) until display (1) appears.
Axle selection
s

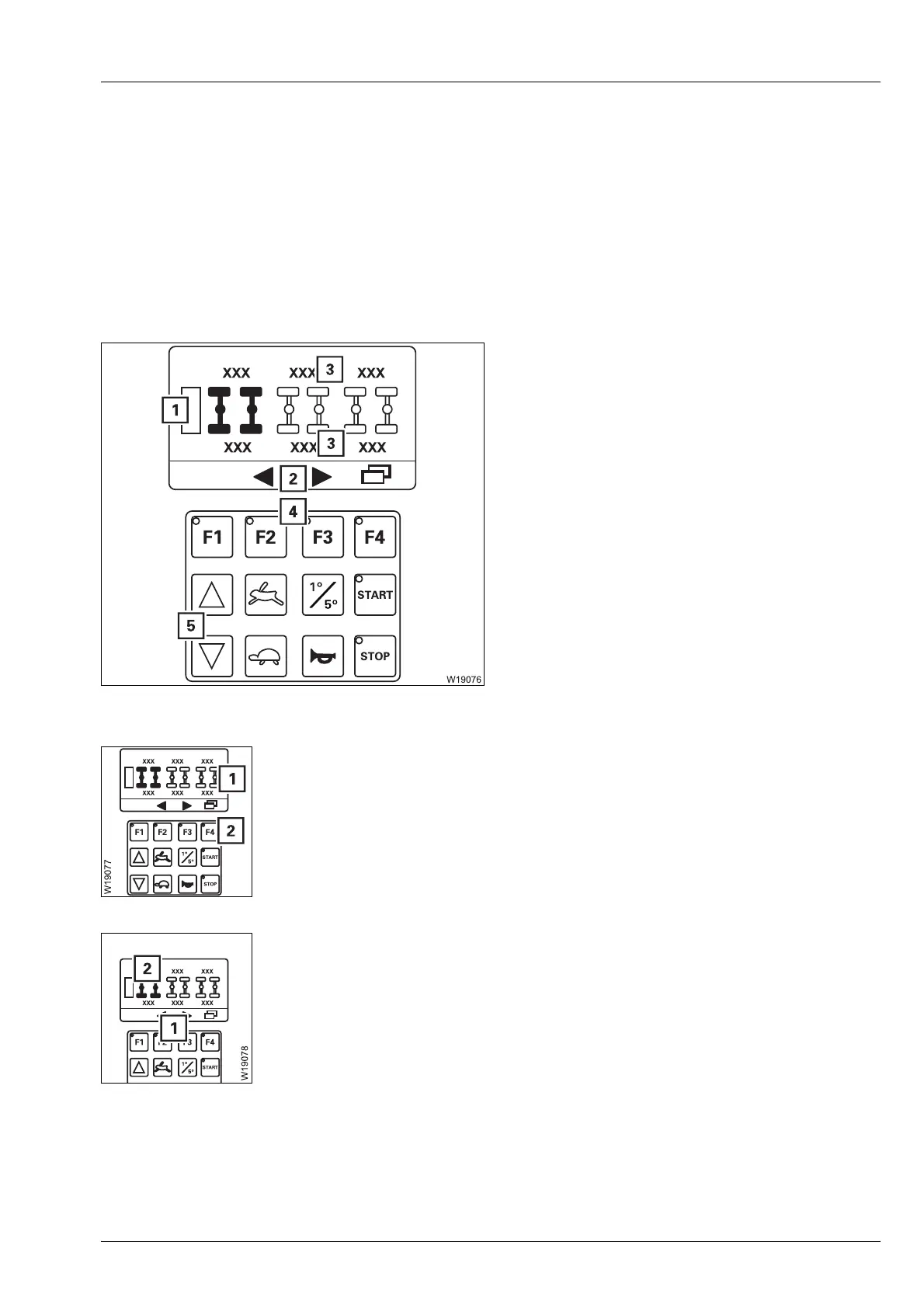

1 Selected axle pairs display
2 Directional indicator
3 Axle load display
4 Axle selection
5 Raise/lower axles
à p. 13 - 7
Pre-select: Press button (1) – the selected axle pairs (2) or axle lines
turn black
Pressing the button (1) again changes the selection
