Rigging work
12.6 Outriggers
Operating manual GMK 6400 3 112 993 en 12 - 29
12.07.2013
12.6 Outriggers

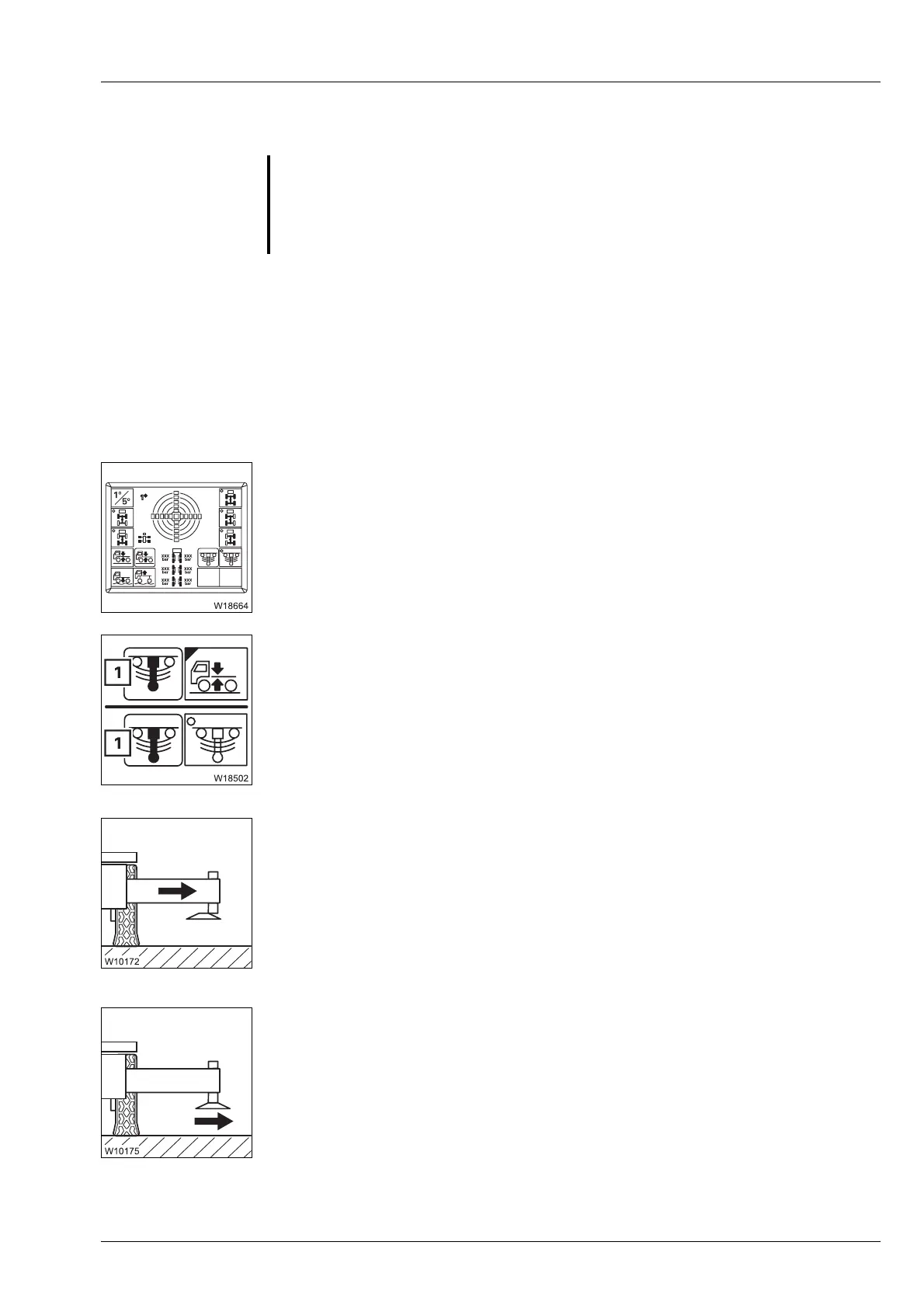

12.6.1 CHECKLIST: Extending the outriggers
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified there.
1. Level the truck crane with the level adjustment system and lower it as
far as possible;
à p. 5 - 60.
2. Switch off (lock) the suspension.
The symbol (1) must be red (suspension off);
à p. 5 - 15.
3. Extend all outrigger beams to the required span;
à Permissible outrigger spans, p. 12 - 32,
à Setting the outrigger spans, p. 12 - 34,
à Extending/retracting outrigger beams, p. 12 - 37.
4. Move the outrigger pads into working position and secure them;
à p. 12 - 43.
s
G
Danger of crushing from extending outrigger beams
You may only activate the outriggers if you yourself or a banksman with
whom you are in visual contact have an unobstructed view of their move-
ments.
