Rigging work
12.6 Outriggers
12 - 30 3 112 993 en Operating manual GMK 6400
12.07.2013

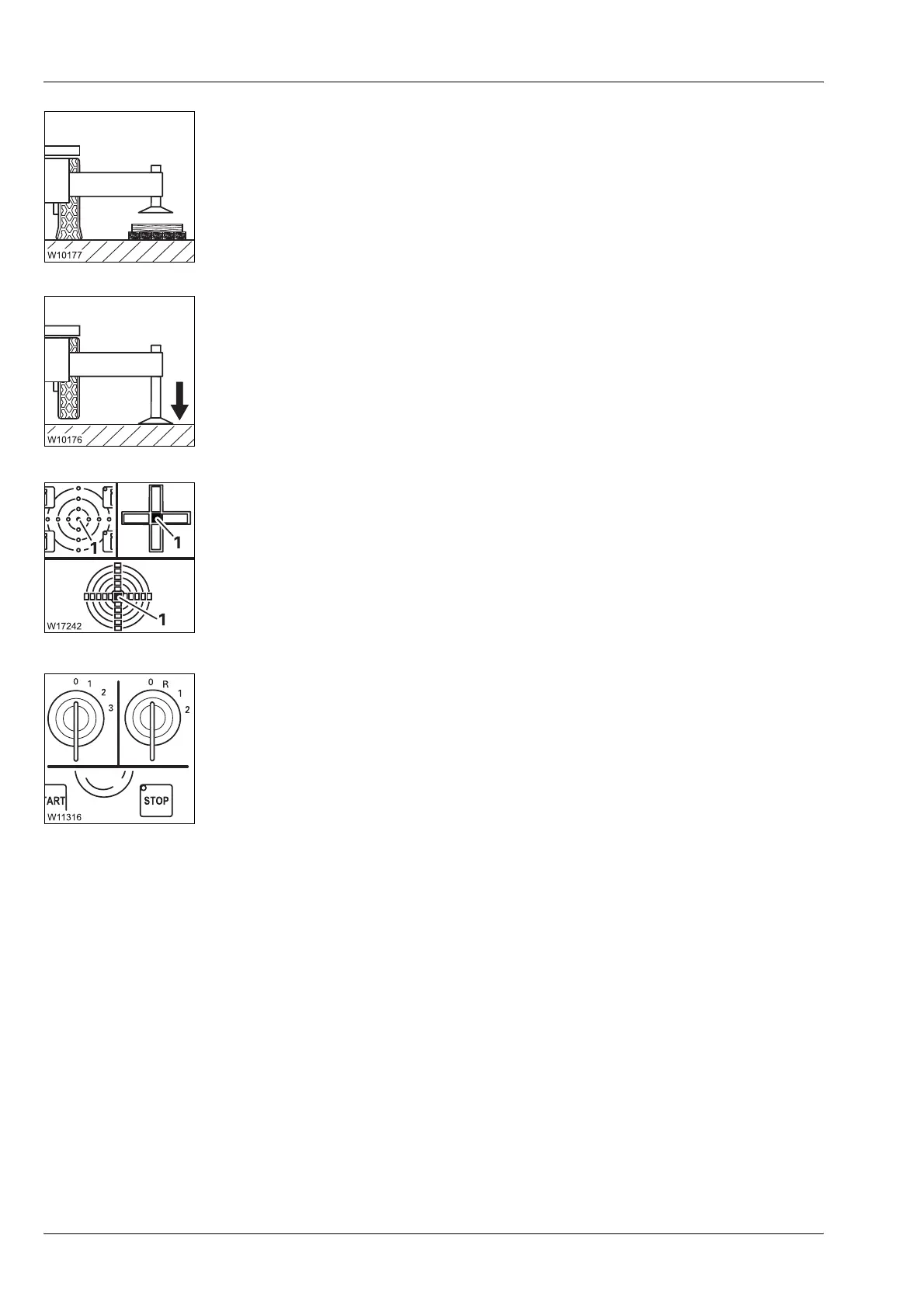

5. Enlarge the ground bearing area if necessary;
à Determining the required ground bearing area, p. 12 - 9,
à Enlarging the ground bearing area, p. 12 - 44.
6. Extend the supporting cylinders until none of the wheels are touching
the ground;
à p. 12 - 45.
7. Level the truck crane with the outriggers.
The lamp (1) lights up in the measuring range 1°;
à p. 12 - 50.
8. Turn off the engine:
– After operating it with the hand-held control;
à p. 12 - 24,
– After operating it from the control units;
à p. 4 - 25,
– After operating it from the crane cab;
à p. 12 - 26.
