Rigging work
12.5 Starting the engine for driving for rigging work
12 - 26 3 112 993 en Operating manual GMK 6400
12.07.2013
After starting the
engine
The engine runs at idling speed. The engine speed cannot be changed.
You can operate the functions from the crane cab in the
Outriggers sub-
menu;
à p. 12 - 41.

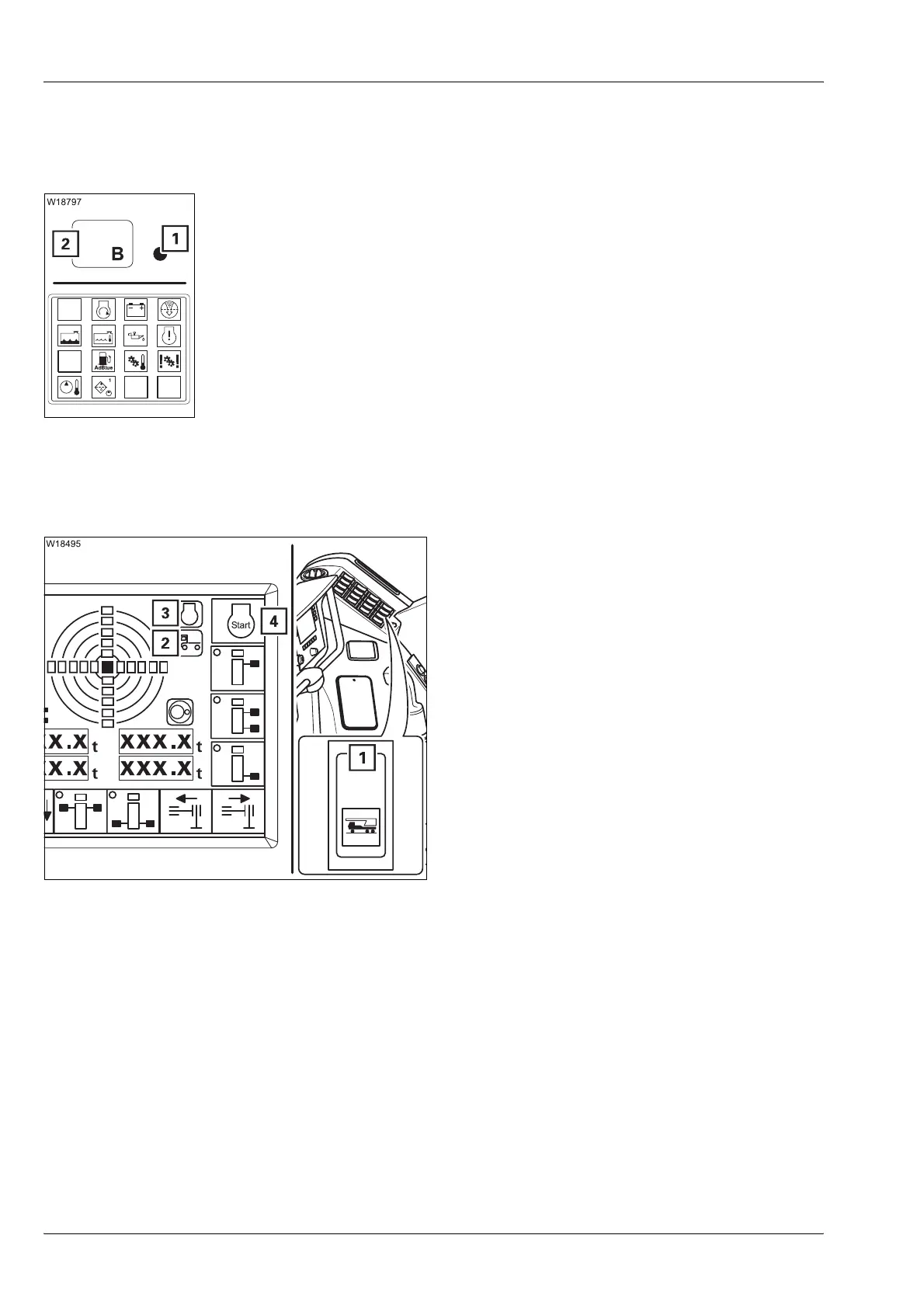

In the event of a warning message on the carrier, the lamp (1) flashes.
• Press the (2) button once
The
Warning submenu (carrier) opens. The corresponding symbol is red;
à p. 11 - 111.
Turning off the
engine
Your can turn off the engine from the crane cab or using any of the emer-
gency stop switches on the superstructure or the carrier.
• Press the (1) button up once
The carrier ignition is turned off and the
engine is switched off.
– The lamp in the button (1) goes out
– The symbol (2) turns red
– The symbols (3) and (4) are displayed
