Rigging work
12.8 Rigging the auxiliary hoist
Operating manual GMK 6400 3 112 993 en 12 - 91
12.07.2013
12.8 Rigging the auxiliary hoist
This chapter describes rigging the auxiliary hoist with the truck crane. The
auxiliary hoist can also be rigged with an auxiliary crane.
The auxiliary hoist must be removed for on-road driving with a maximum
of 12 t axle load.
Scope of delivery
– Auxiliary hoist (1) with rope
– Lower hook block (2)
– Upper hook block (3)
– Lifting limit switch
12.8.1 Identification
The auxiliary hoist may only be operated together with a GROVE truck crane
GMK 6400 whose serial number is identical with the serial number of the
auxiliary hoist.

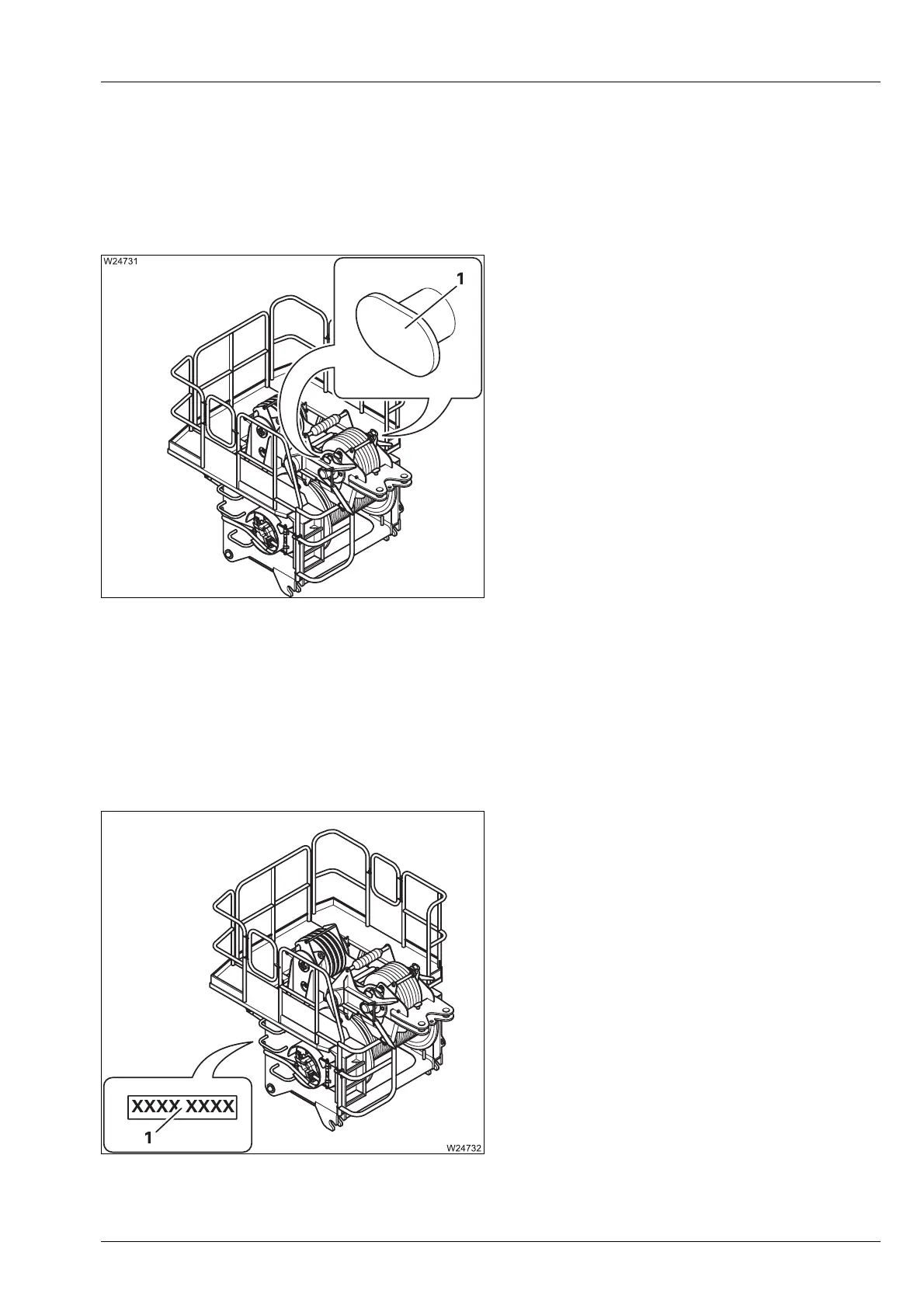

The serial number (1) of the hoist is located on
right rear of the hoist frame.
