Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 23
12.07.2013

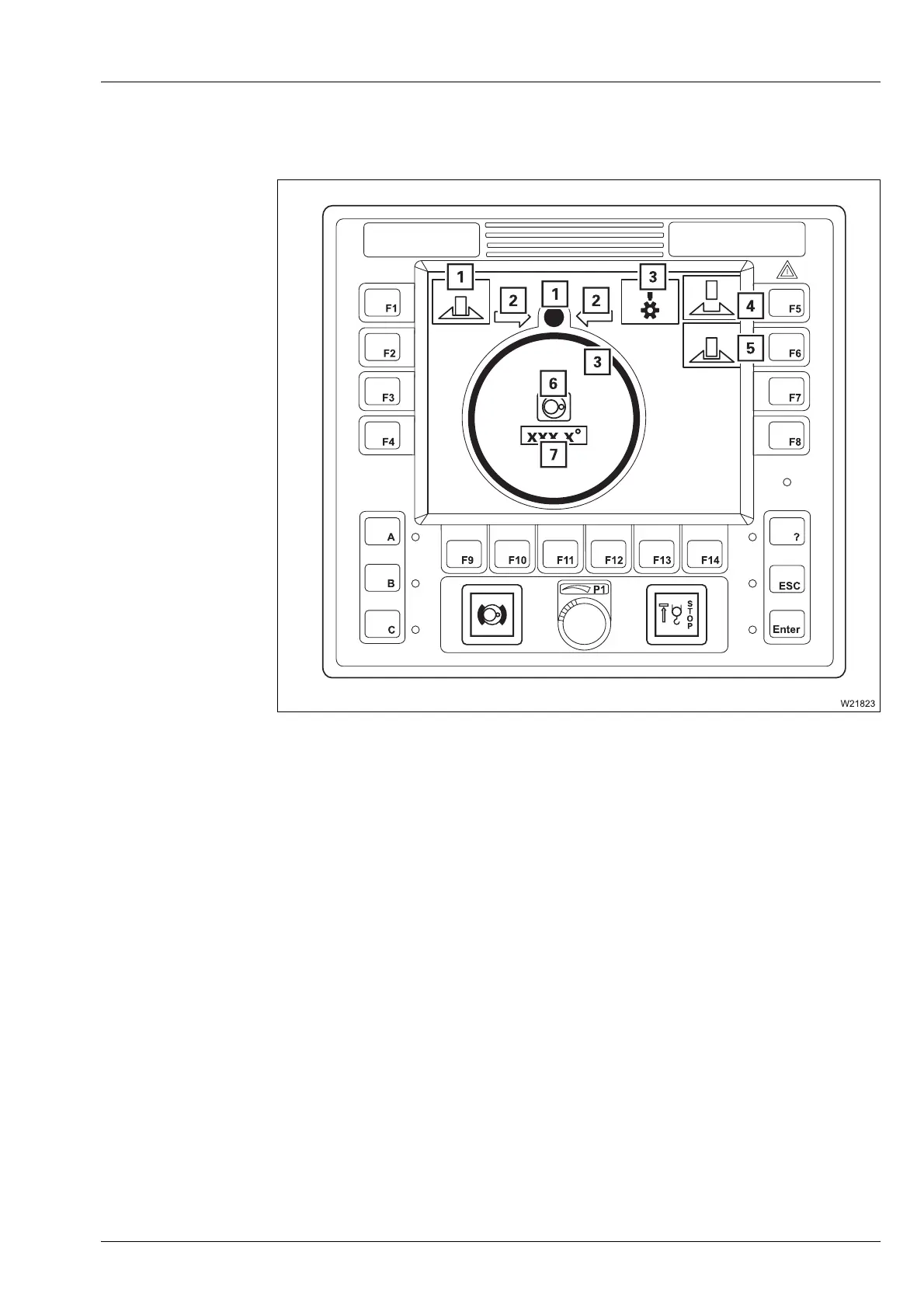

9.1.9 ECOS display – submenus
Superstructure
lock submenu
s
1 Superstructure locking status displays à p. 9 - 89
2 Display slewing direction to 0°/180°
à p. 9 - 90
3 Houselock locking status displays
1)
à p. 9 - 90
4 Unlock turntable
à p. 9 - 89
5 Lock turntable
à p. 9 - 89
6 Slewing gear display
à p. 9 - 79
7 Current slewing angle display
à p. 9 - 79
1)
Additional equipment
