Driving modes and rigging for on-road driving
6.5 Installing/removing the supporting box
6 - 54 3 112 993 en Operating manual GMK 6400
12.07.2013

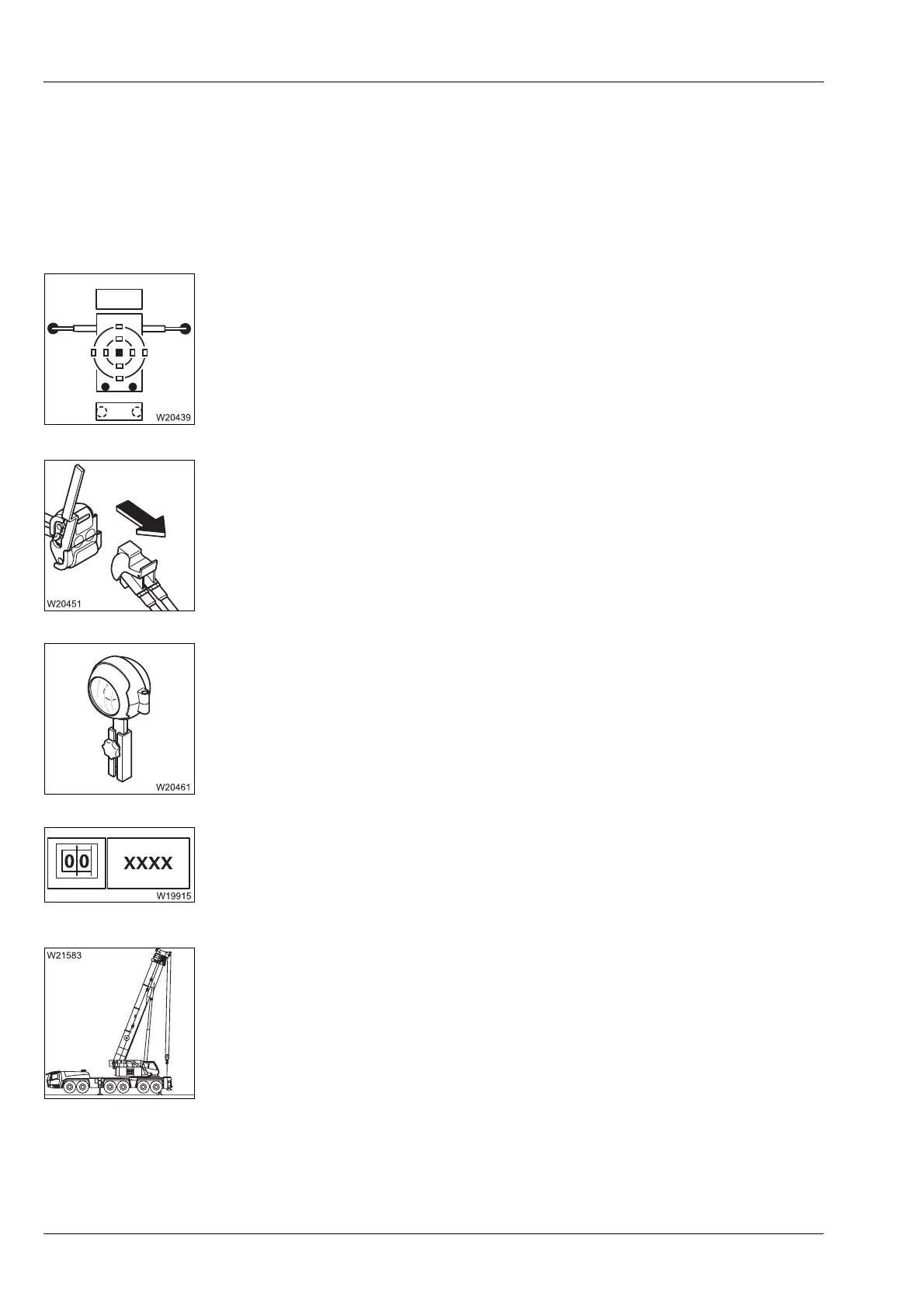

6.5.1 CHECKLIST: Removing the supporting box
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified there.
1. Rig the outrigger span 7.98 x 8.50/1.00 m (26.1 x 27.9/3.3 ft) and align
the truck crane horizontally;
à p. 6 - 59.
2. Disconnect the pneumatic connections between the carrier and outrig-
ger box;
à p. 6 - 62.
3. Install the reverse camera to the carrier;
à p. 6 - 68.
4. With the RCL set accordingly, raise the main boom and slew the super-
structure to the rear;
à Crane movements during installation and removal, p. 6 - 69.
5. Sling the outrigger box to the truck crane;
à Slinging points on the sup-
porting box
, p. 6 - 70.
