Rigging work
12.6 Outriggers
Operating manual GMK 6400 3 112 993 en 12 - 57
12.07.2013
12.6.12 Outrigger pressure display
After switching on the ignition, the outrigger pressure displays indicate the
current outrigger pressure for all supporting cylinders.
The set unit (t or klbs) is shown next to the displays.
H
Outrigger cylinders retracted or extended as far as possible will lead to an
incorrect outrigger pressure display.
The display will show the most accurate reading if the movement per-
formed last was
Extend outrigger cylinders.

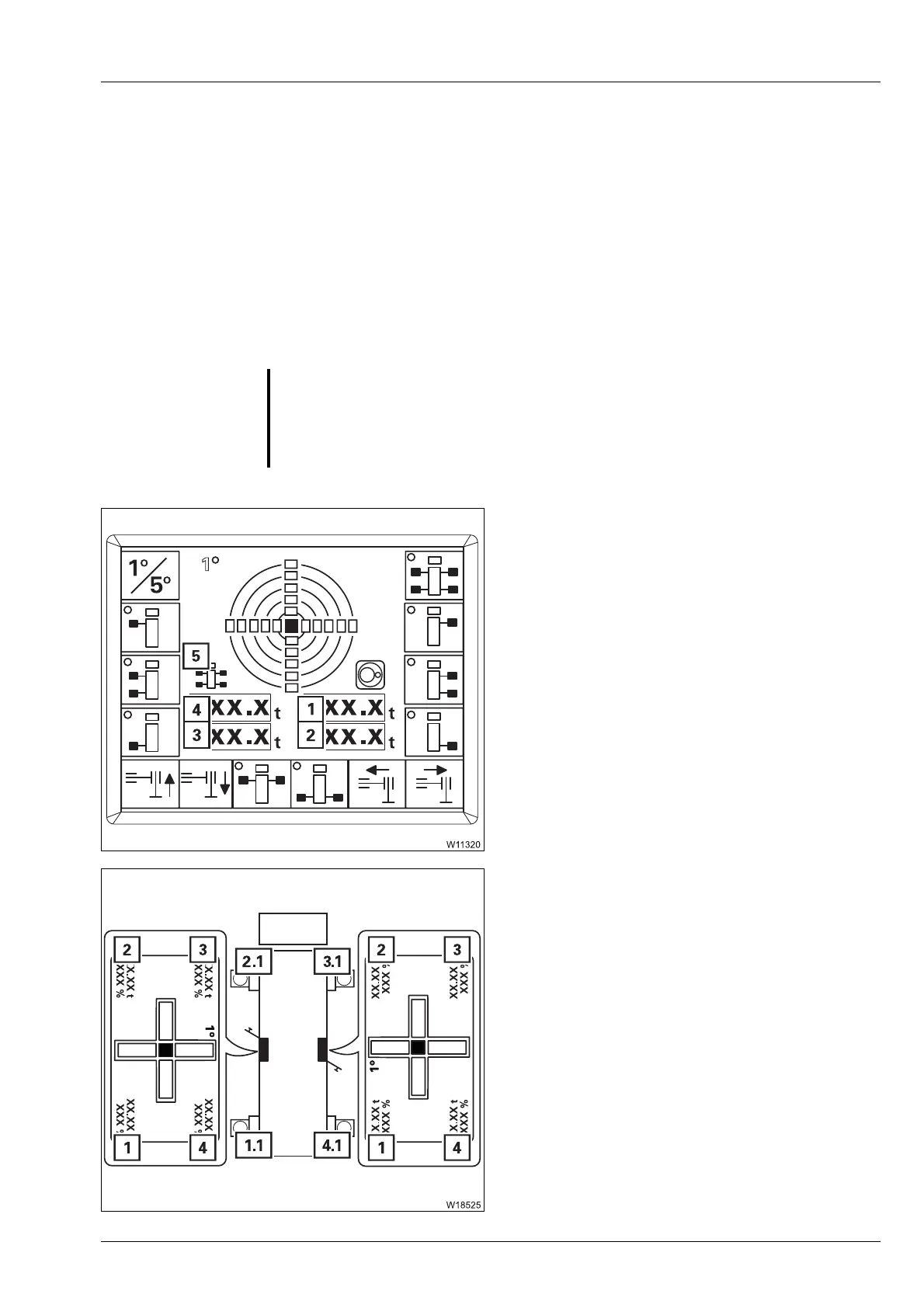

In the Outriggers submenu
The assignment of the displays to the carrier is
given by the directional indicator (5).
On the outrigger control units
The assignment of the displays to the carrier
corresponds to the top view.
G
Risk of accident when misused
A displayed outrigger pressure over 0 t does nor guarantee protection
against overturning or overloading. For this reason, never override the RCL.
1 Front right outrigger pressure
2 Rear right outrigger pressure
3 Rear left outrigger pressure
4 Front left outrigger pressure
1 Display for the outrigger cylinder 1.1
2 Display for the outrigger cylinder 2.1
3 Display for the outrigger cylinder 3.1
4 Display for the outrigger cylinder 4.1
