Malfunctions in driving mode
7.6 Fuses
7 - 20 3 112 993 en Operating manual GMK 6400
12.07.2013
7.6.1 Fuses in the driver's cab

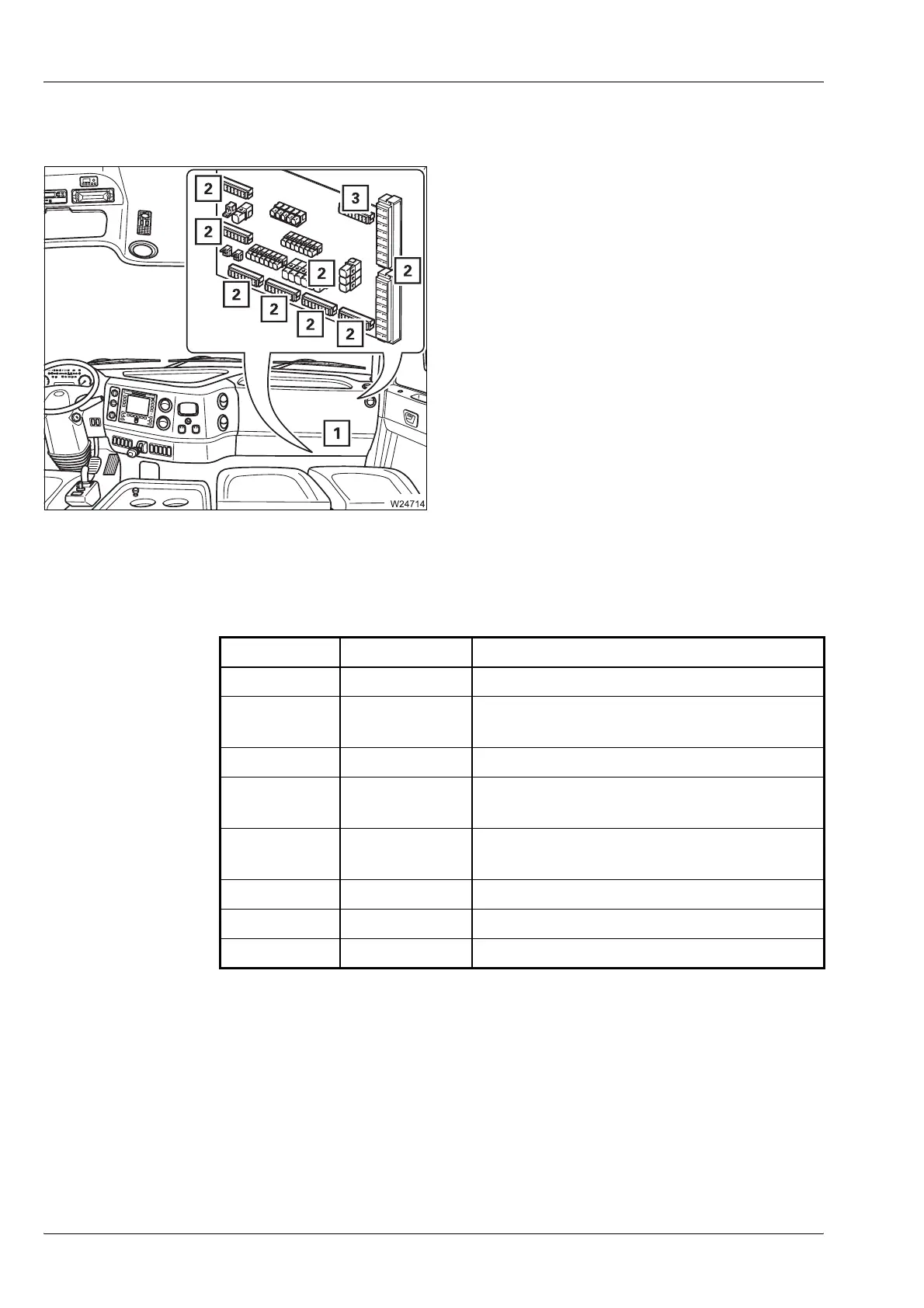

• Remove the covers (1)
The following sections show the designations
of the individual fuses, including their amper-
age and functions.
Group F1 The fuses are labelled with the numbers.
• Observe the instructions on changing fuses; à p. 7 - 19.
2 Fuse groups F1 to F10
3 Reserve fuses
Designation Amperage (A) Function
F1/1 20 Automatic parking light
1)
F1/2 10
Diagnostics plug, cab lighting
Cigarette lighter
F1/3 20 Oil cooler, 24 V/12 V voltage transformer
F1/4 10
Hazard warning system, light switch,
power supply
1)
F1/5 5
Engine electronic system, ECOS control
unit
F1/6 10 Electronic gear system
F1/7 15 ABS trailer
F1/8 – Unassigned
1)
Additional equipment
