Starting/turning off the engine – for crane operation
10.1 When starting the engine for the first time of the day
10 - 4 3 112 993 en Operating manual GMK 6400
12.07.2013
Checking hand-
held control
The hand-held control must be removed for crane operation from the crane
cab.

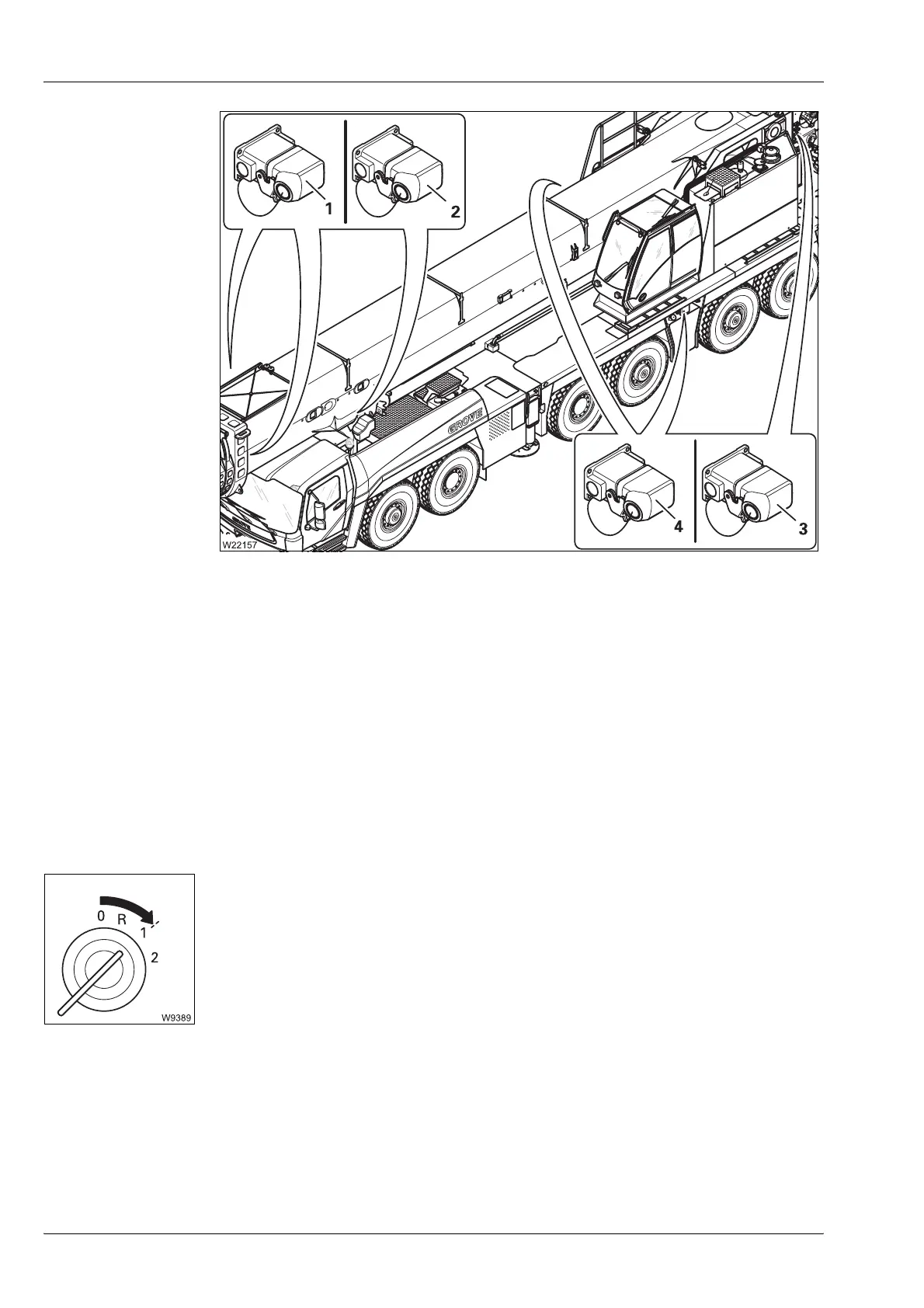

• Check whether bridging plugs (1)to(4) are inserted in all the sockets;
à p. 12 - 22.
You can start the engine from the crane cab, but if the hand-held control is
connected, the operating elements for crane operation are disabled.
10.1.3 Switching on the ignition
•
Insert the ignition key into the ignition lock and turn the key to position 1.
After switching on the ignition, a lamp test is performed and switching
states are checked.
