Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
Operating manual GMK 6400 3 112 993 en 6 - 47
12.07.2013
6.4.8 Disconnecting/establishing the connections to the outrigger
box

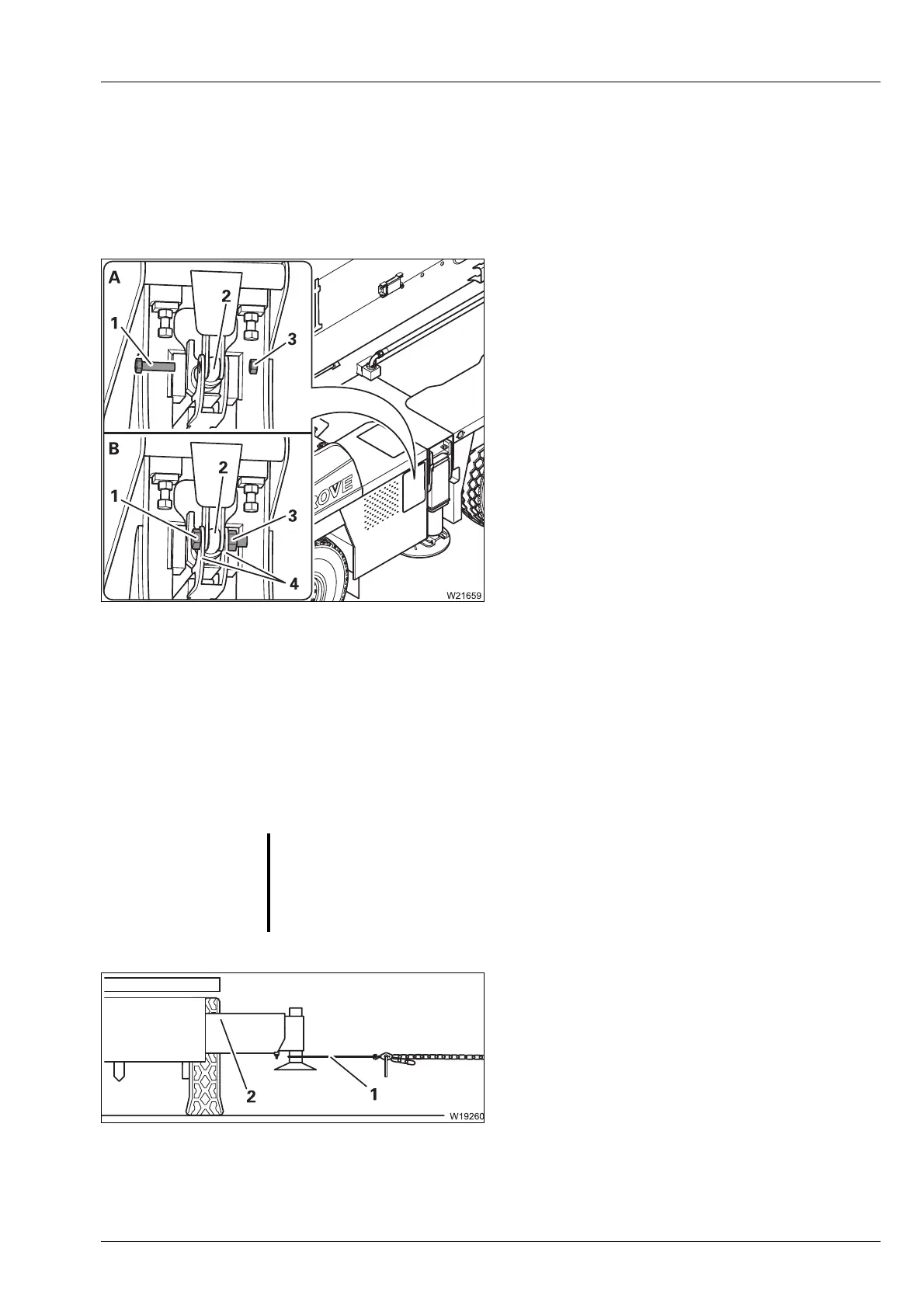

The illustrations show as an example the connecting points for the outrig-
ger beam on the rear right hand side.
(A) – To disconnect
• Undo the lug nuts (3).
• Remove the bolts (1) from the connecting
points (2).
(B) – Connecting
• Fasten the bolts (1) with the nuts (3) in the
connecting points (2) just tight enough that
the attachment plates (4) still have lateral
play.
6.4.9 Extending/retracting the outrigger beam
Extending
outrigger beam
• Check that the outrigger beams are released and are secured between
each other;
à Preparing the truck crane, p. 6 - 40
• Fasten the lifting gear (1) and a chain hoist.
• Pull the outrigger beam out so far that the
centre of gravity (2) is accessible.
s
S
Risk of damage to hydraulic lines
Ensure that the hydraulic lines on the outrigger beam do not remain hang-
ing on the outrigger box and become damaged.
