Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
6 - 48 3 112 993 en Operating manual GMK 6400
12.07.2013

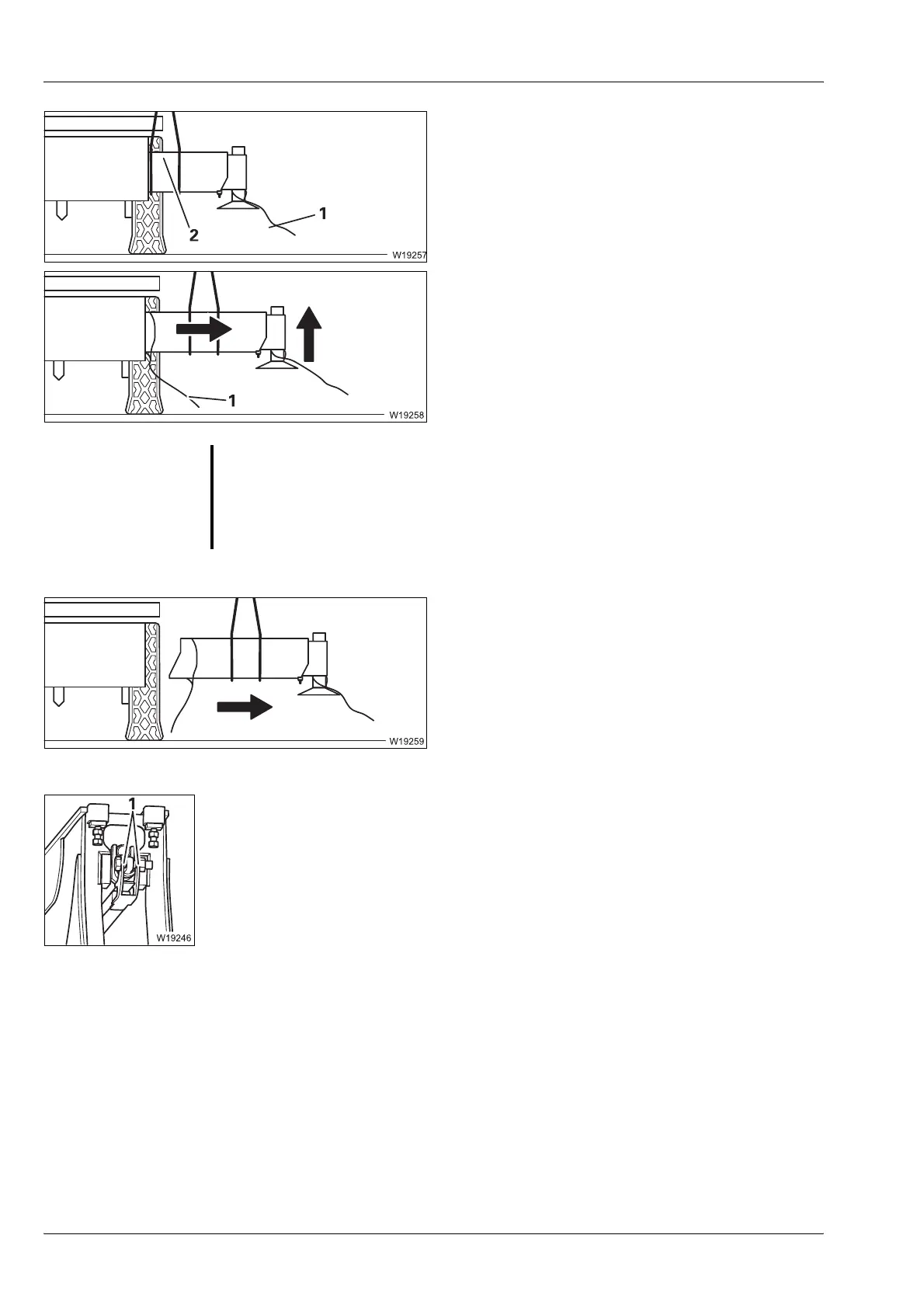

• Using the auxiliary crane, sling the outrigger
beam in the centre of gravity (2).
• Remove the chain hoist and lifting gear.
• Fasten a guide rope (1).
• Lift the outrigger beam slightly to ease the
load.
• Lift the outrigger beam almost completely
out of the outrigger box.
• Fasten another guide rope (1).
• Lift the outrigger beam out of the outrigger
box.
• Lift the outrigger beam onto a separate
vehicle;
à p. 6 - 51.
• Fasten the connecting elements to the connecting points (1) of the sup-
ports.
G
Risk of being crushed by the swinging outrigger beam
Secure the outrigger beam with the guide ropes as it is lifted out of the out-
rigger box.
Keep a suitable distance to avoid injuring yourself or others on the swing-
ing outrigger beam.
