Malfunctions during crane operation
14.3 Fuses
14 - 6 3 112 993 en Operating manual GMK 6400
12.07.2013

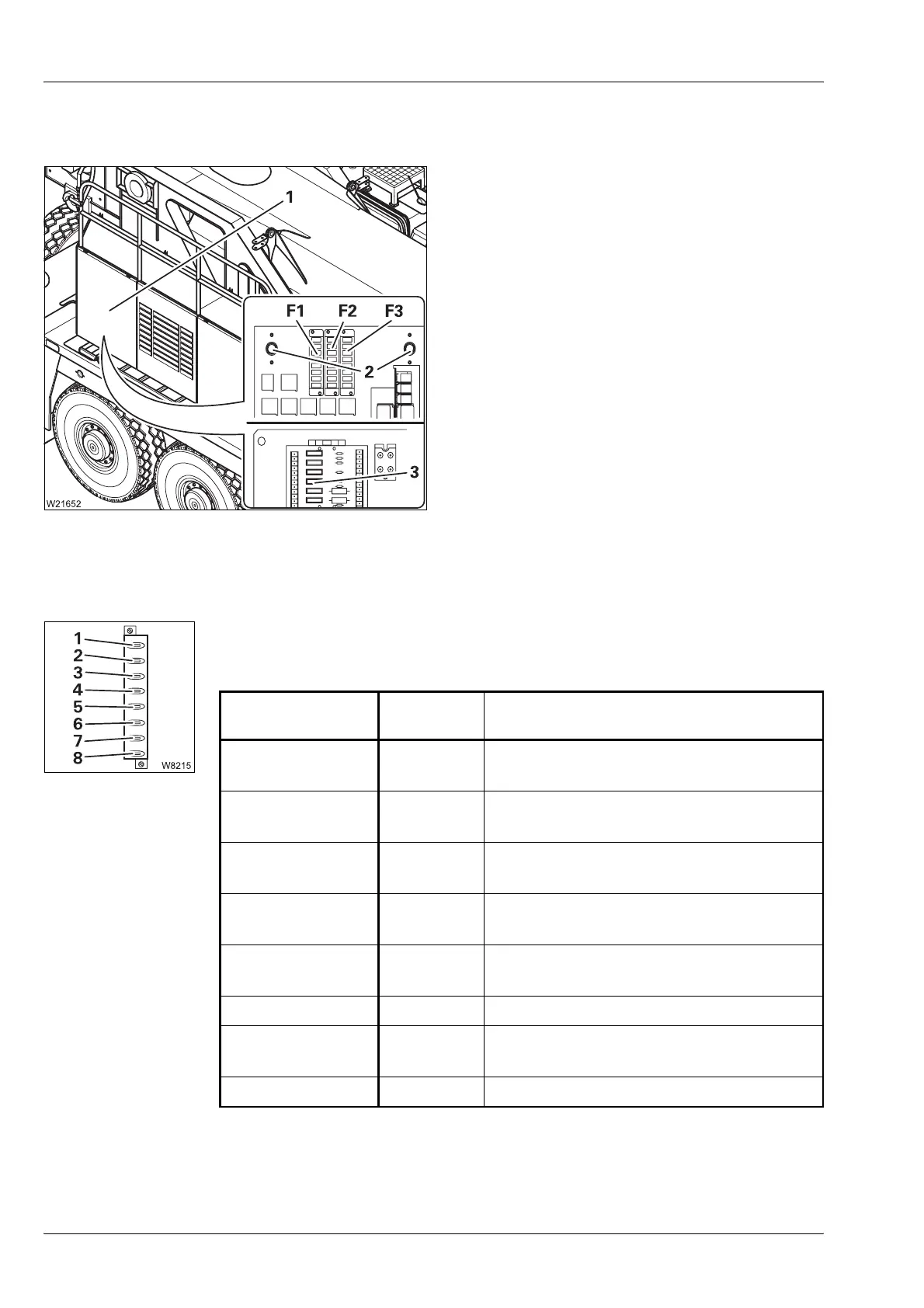

14.3.1 Fuses on the turntable
• Open the cover (1).
• Open the distribution box behind it.
There are fuse groups F1, F2 and F3.
• Remove the screws (2) and fold the plate
down.
There are other fuses on the circuit board (3);
à p. 14 - 7.
• Close the distribution box and cover after
checking (1).
• Observe the instructions on changing fuses;
à p. 14 - 5.
Fuse groups
F1/F2/F3
The following tables show the designations of the individual fuses, includ-
ing their amperage and functions.
The designations 1 to 8 in the tables correspond to the order from top to bot-
tom (fuse 1 is the top fuse).
Designation Amperage
(A)
Function
F1/1 20
ESX 0 supply
ESX 4 supply
F1/2 20
I/O-4 circuit board
ESX 1 supply
F1/3 10
Central lubrication
Lattice extension
F1/4 10
Alternator
Superstructure rotating beacon
F1/5 20
Air intake inhibitor
1)
Flame start system
1)
F1/6 5 Air intake inhibitor
1)
F1/7 3
ESX 4 supply
I/O-4 circuit board
F1/8 5 Engine E-control (PLD)
1)
Additional equipment
