Rigging work
12.6 Outriggers
12 - 50 3 112 993 en Operating manual GMK 6400
12.07.2013
12.6.10 Levelling the truck crane on outriggers
You must level the truck crane before crane operation and possibly correct
its horizontal alignment during crane operation.
Inclination
indicators

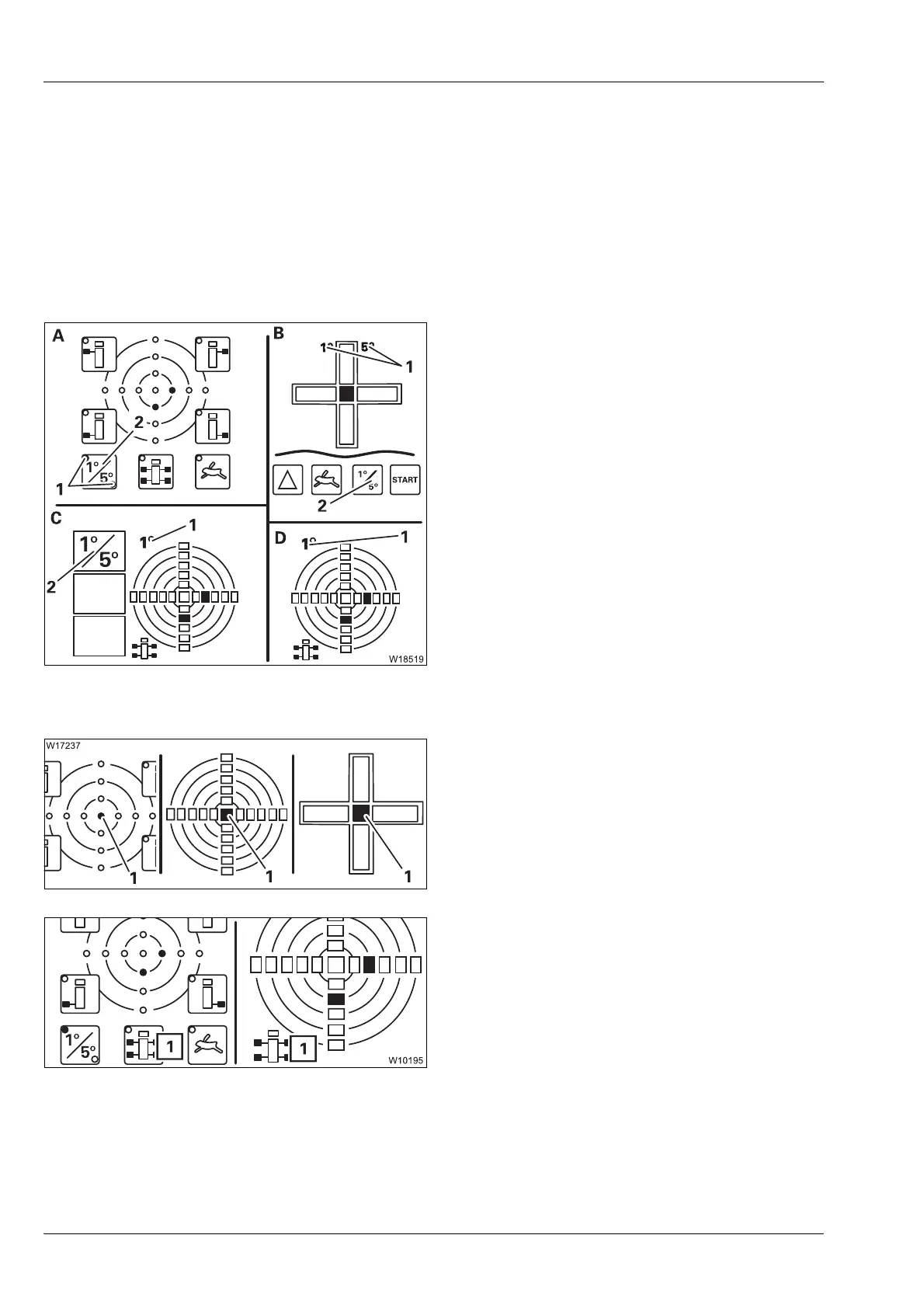

After switching on the ignition, various inclination indicators display the
current alignment.
On the
ECOS display
Switching between measuring ranges
You can change the measuring range between
1° and 5°.
• Press the (2) button once.
The current measuring range (1) is dis-
played.
Reading the display
Only the lamp (1) at the centre is on if the truck
crane is level.
The other lamps show the sides of the truck
crane which are higher.
–
ECOS hand-held control/display
The assignment to the carrier is given by the
directional indicator (1).
In this example, the carrier would be stand-
ing higher to the rear on the right hand side.
A On the hand-held control
B On the
Outrigger control units
C In the Outriggers submenu
D In the main menu
